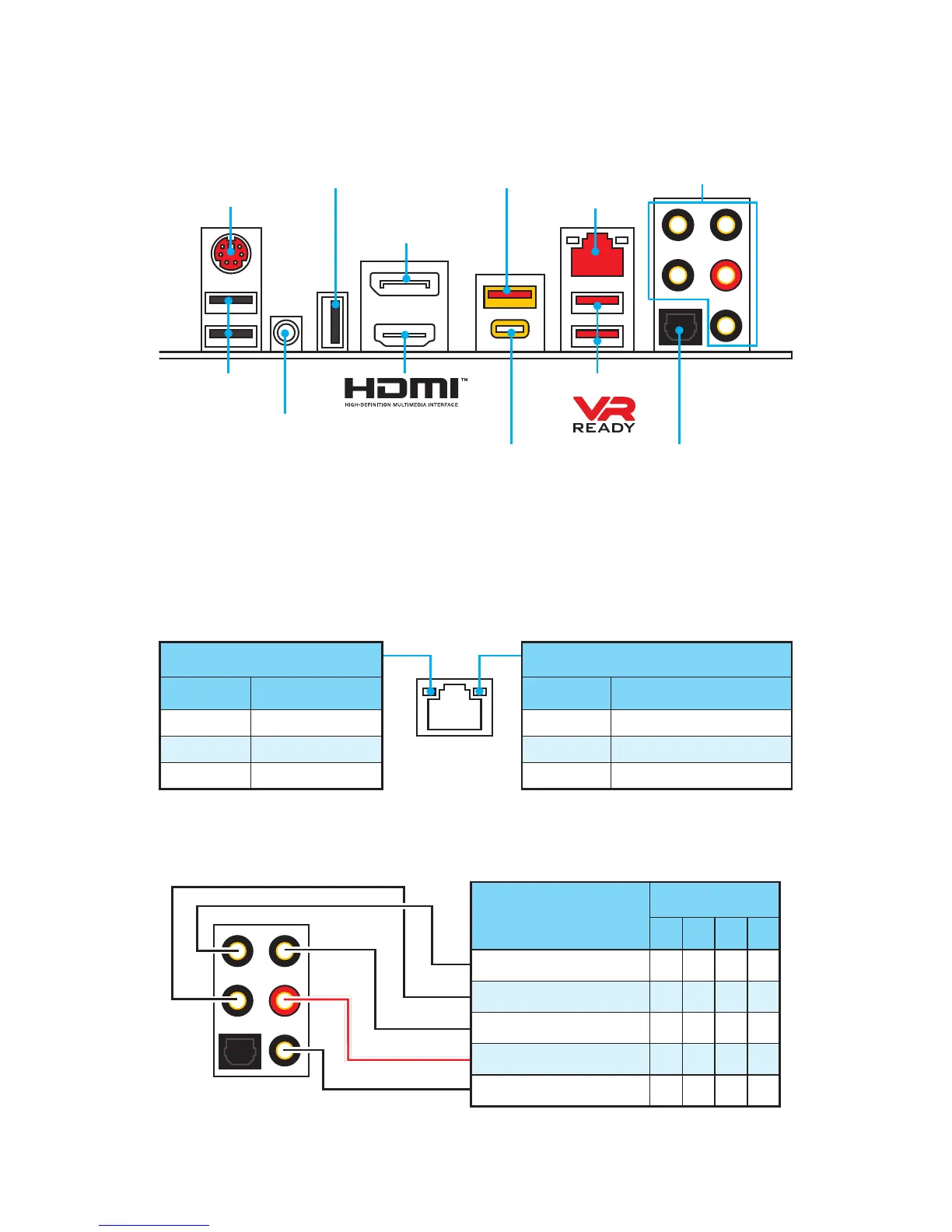

Rear I/O Panel
Rear I/O Panel
PS/2 Port
LAN
USB 2.0
Audio Ports
USB 2.0/
BIOS FLASHBACK+
Clear CMOS
button
DisplayPort
USB 3.1 Gen1
USB 3.1 Gen2 Type-C
USB 3.1 Gen2 Type-A
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status Description
Off 10 Mbps connection
Green 100 Mbps connection
Orange 1 Gbps connection
LAN Port LED Status Table
Audio Ports Configuration
Audio Ports
Channel
2 4 6 8
Center/ Subwoofer Out ● ●
Rear Speaker Out ● ● ●
Line-In/ Side Speaker Out ●
Line-Out/ Front Speaker Out ● ● ● ●
Mic In
(●: connected, Blank: empty)
Optical S/PDIF-Out
y Clear CMOS button - Power off your computer. Press and hold the Clear CMOS
button for 5 seconds to reset BIOS to default values.
y BIOS FLASHBACK+ port - Please refer to page 49 for Updating BIOS with BIOS
FLASHBACK+.
