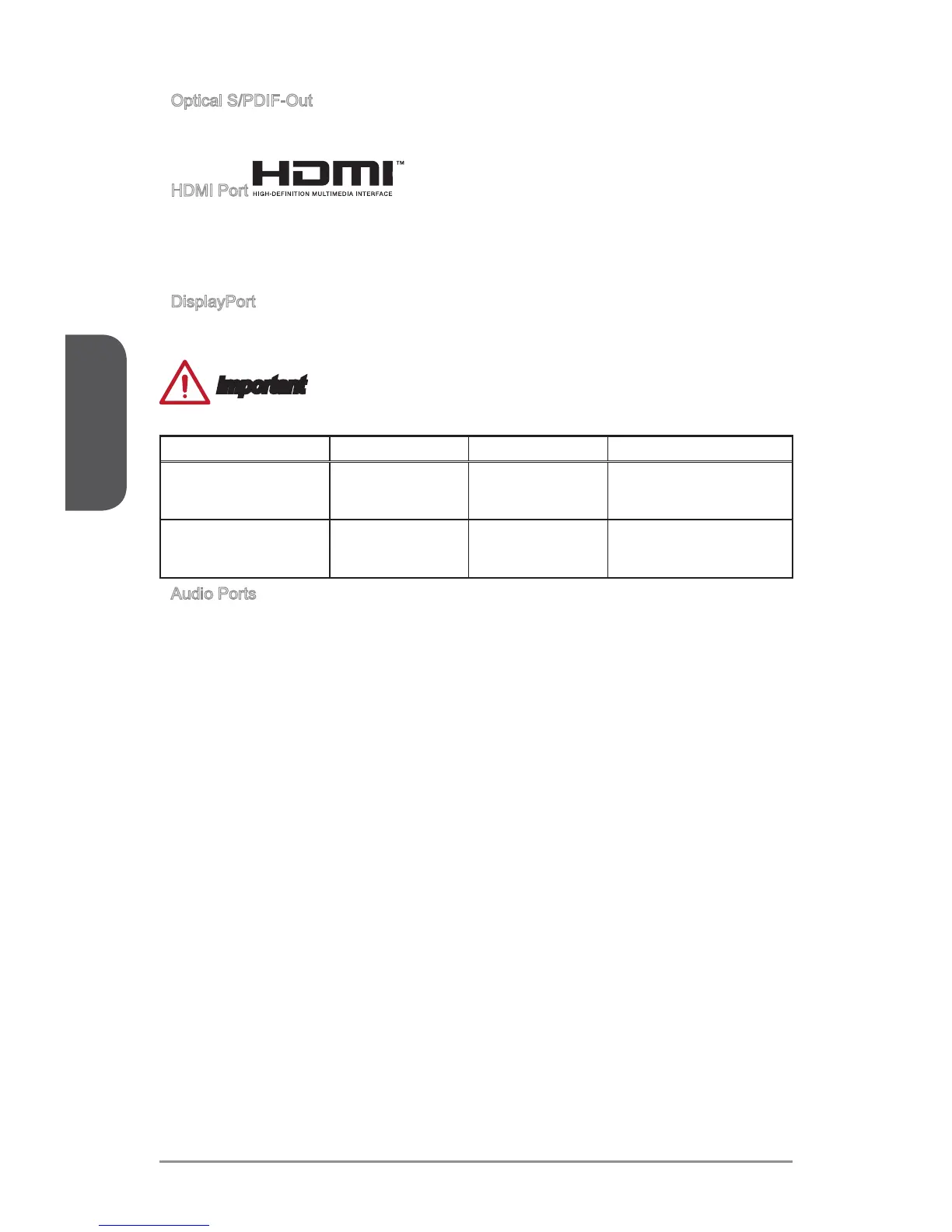

Chapter 1
1-10Getting Started
Optical S/PDIF-Out
This S/PDIF (Sony & Philips Digital Interconnect Format) connector is provided for
digital audio transmission to external speakers through an optical ber cable.
HDMI Port
The High-Denition Multimedia Interface (HDMI) is an all-digital audio-video interface
that is capable of transmitting uncompressed streams. HDMI supports all types of TV
formats, including standard, enhanced, or high-denition video, plus multi-channel
digital audio on a single cable.
DisplayPort
DisplayPort is a digital display interface standard. This connector is used to connect a
monitor with DisplayPort inputs.
Important
This platform supports dual-display and triple-display function.
HDMI+DisplayPort HDMI+HDMI HDMI+HDMI+DisplayPort
Extend mode
(Extend the desktop to the
other monitor)
◯ ◯ ◯
Clone mode
(Monitors have the same
screen)
◯ ◯ ◯
Audio Ports
These connectors are used for audio devices. The color of the jack refers to the
function of the connector.
Blue-Line in: Used for connecting external audio outputting devices.
Green- Line out: Used as a connector for speakers or headphone.
Pink- Mic: Used as a connector for a microphone.
Black- RS-Out: Rear surround sound line out in 4/ 5.1/ 7.1 channel mode.
Orange- CS-Out: Center/ subwoofer line out in 5.1/ 7.1 channel mode.
Gray- SS-Out: Side surround sound line out in 7.1 channel mode.
▶
▶
▶
▶
■
■
■
■
■
■
