MSI Z87 MPOWER User Manual

Chapter 1
1-29 Getting Started

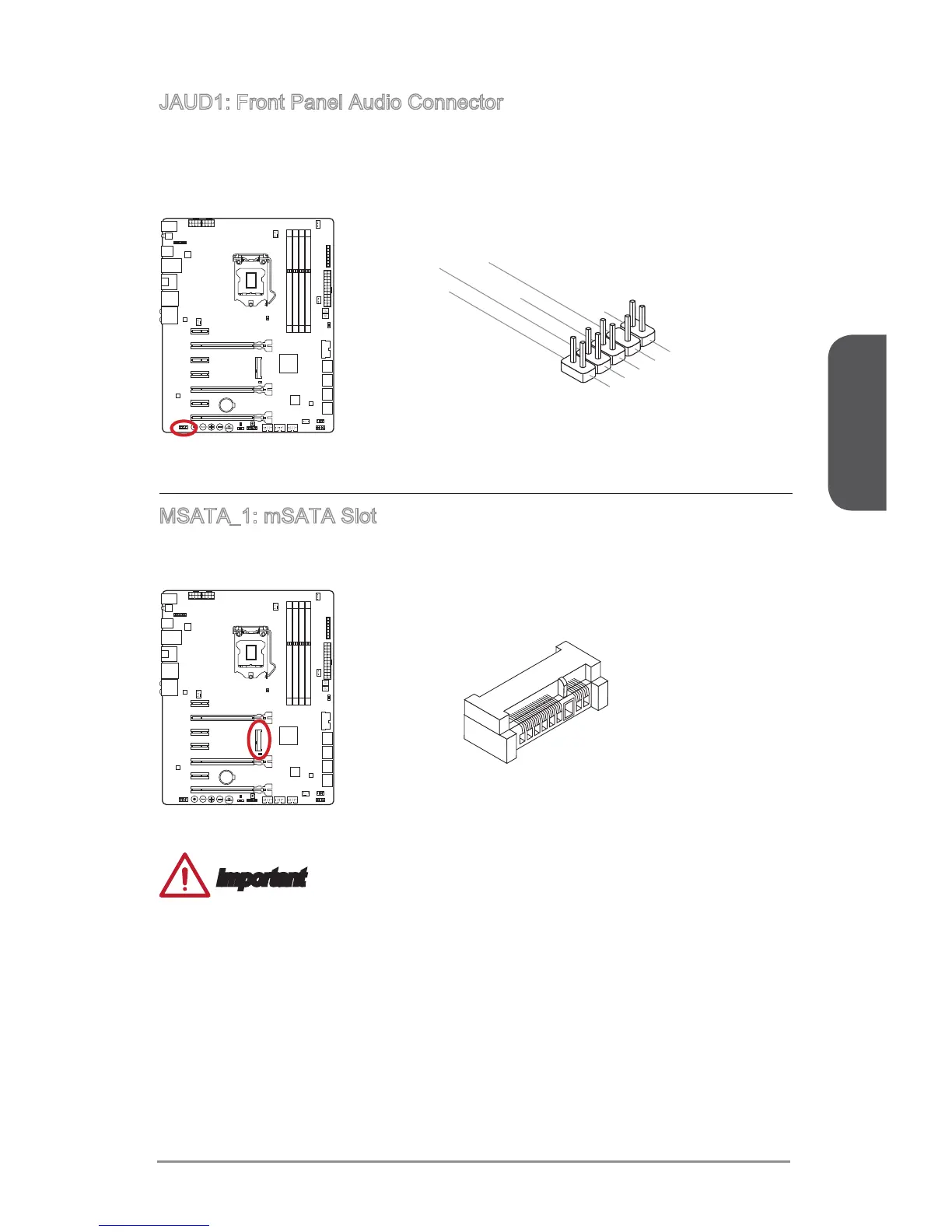

JAUD1: Front Panel Audio Connector
This connector allows you to connect the front audio panel located on your computer
case. This connector is compliant with the Intel
®
Front Panel I/O Connectivity Design
Guide.
1.MI
C L
3.MI
C R
10.Head
P
hone
Detection
5.Head
P
hone
R
7.SENSE_SEN
D
9.Head P
hone
L
8.No
Pi
n
6.MI
C D
etection
4.NC
2
.Ground
MSATA_1: mSATA Slot
The mSATA slot is for mSATA interface solid state drives (SSD).
Important
The SATA6 port will be unavailable when install a SSD in the mSATA port. .
