MTB HOPPER - Mini Coach Ramp Assembly; Assembly Steps; Full Size Coach Ramp Assembly

Push down
Push down

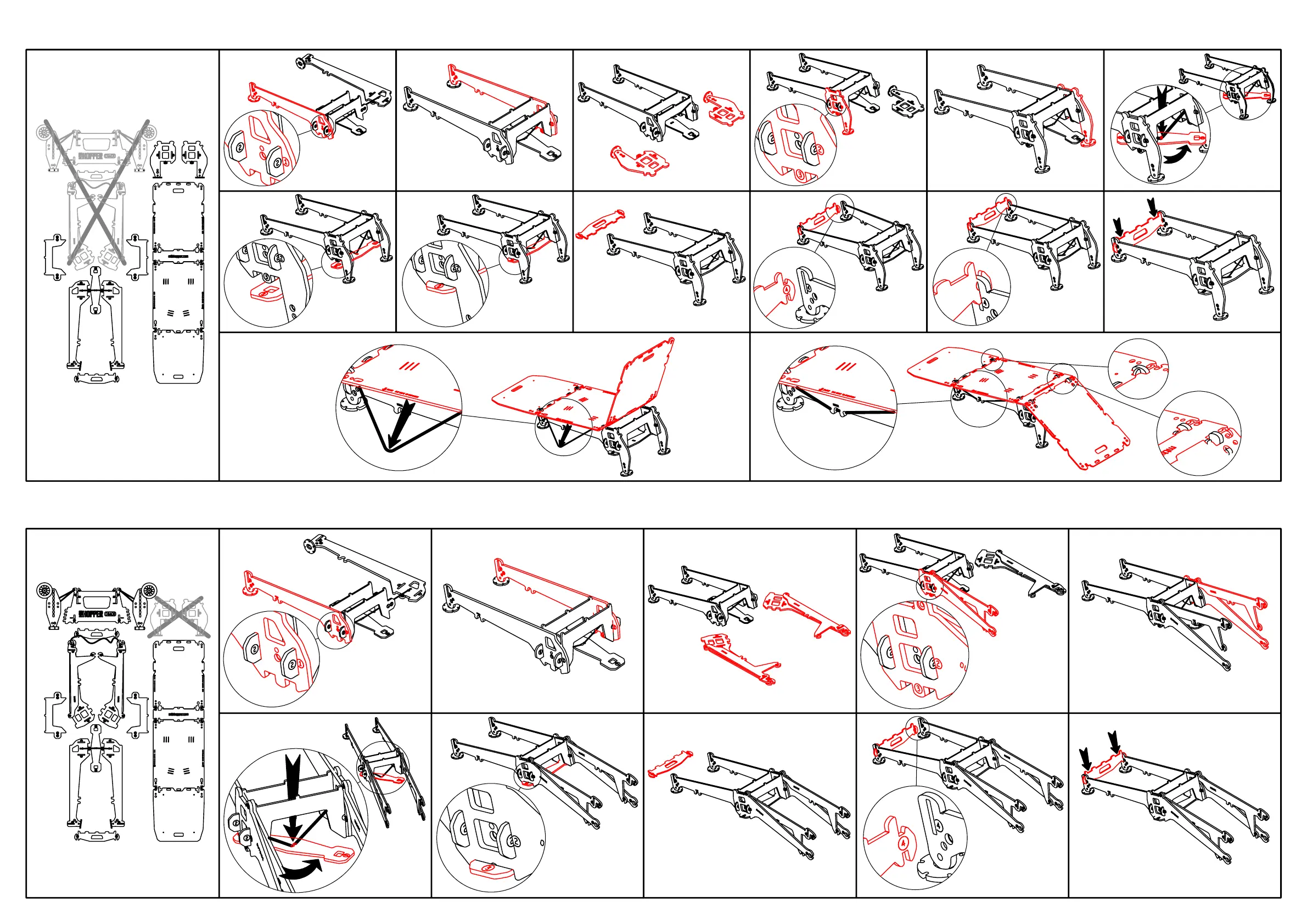

FULL SIZE COACH RAMP ASSEMBLY
Press lock part
down and turn
90 degrees
Grab the rope
and fasten to
the hooks on
both sides
Make sure that the roof
is fitting correctly
1.
2. 3. 4. 5. 6. 7.
8. 9.
10.
11. 12. 13.
14. 15.
1.
2. 3. 4.
5. 6.
7. 8. 9. 10. 11.
1.
MINI COACH RAMP ASSEMBLY
Follow engraved numbers on the parts. The numbers are showing the order of assembly. The numbers are on all connection points and have to match: (1 to 1; 2 to 2 and so on).
Follow engraved numbers on the parts. The numbers are showing the order of assembly. The numbers are on all connection points and have to match: (1 to 1; 2 to 2 and so on).
Press lock part
down and turn
90 degrees
