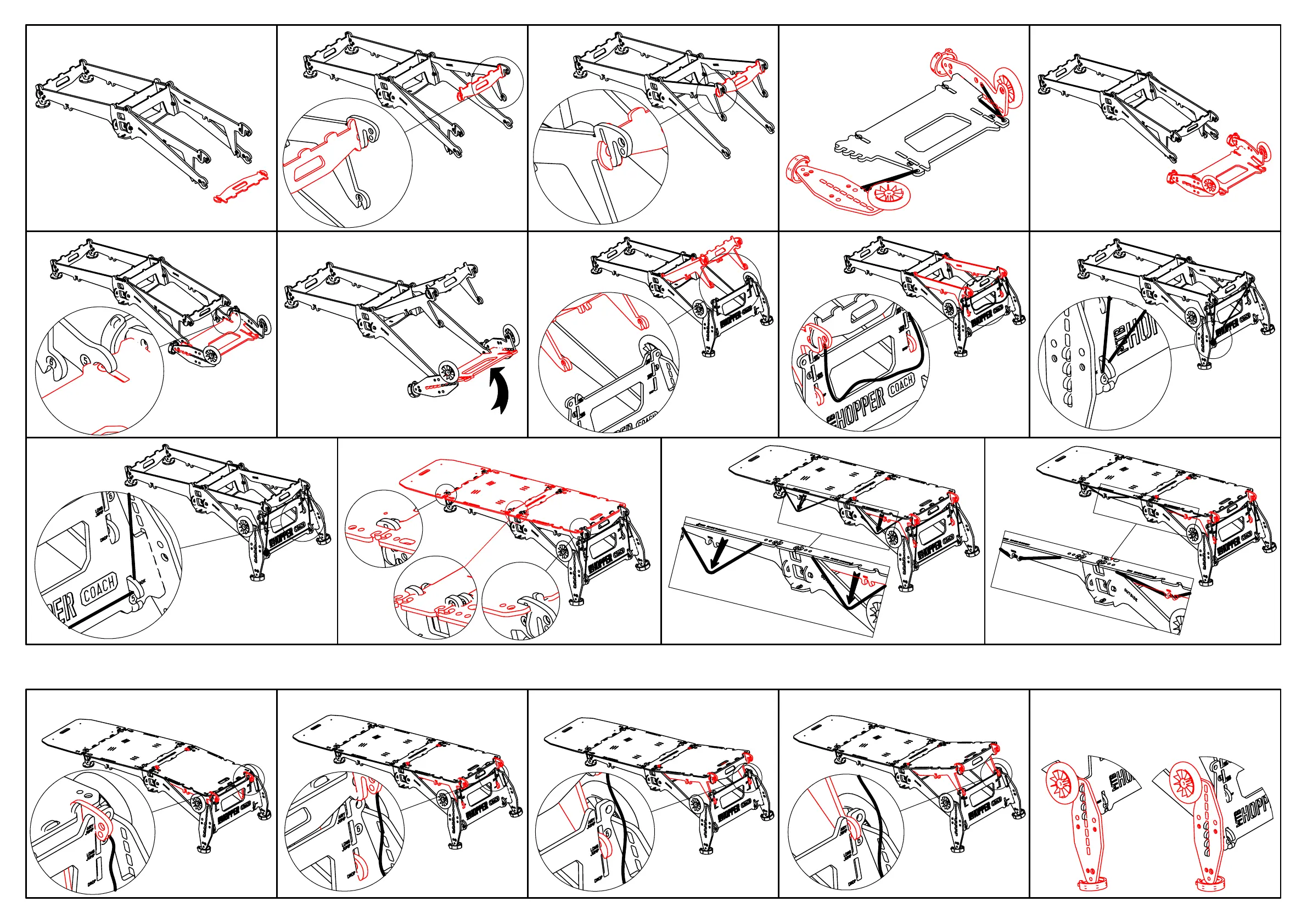

MTB HOPPER - Coach Ramp Geometry Settings; Table Top Setting; Drop Setting; Long Jump Setting

Mount Legs onto
the Front Part
Logo of the Front Part
must be facing down
AS
Mount the Roof and make
sure that it is fitting correctly
BE
Table Top Setting Drop Setting Long Jump Setting Airy Jump Setting Leg Height Adjustment
Slide the Front Part
into the C-type Arms
on both sides
Lift the Front Part up
Fasten the Rope to
the hooks on both sides
GEOMETRY SETTINGS OF COACH RAMP
12. 13. 14. 15. 16.
17. 18. 19. 20. 21.
22. 23. 24. 25.
2.
Grab the rope and fasten to
the hooks on both sides
A different Height of the ramp can
be chosen for each of the settings
High
Setting
Low
Setting
