Installation/removal
Installing the cassette sprocket
Installation/removal
Installing the cassette sprocket

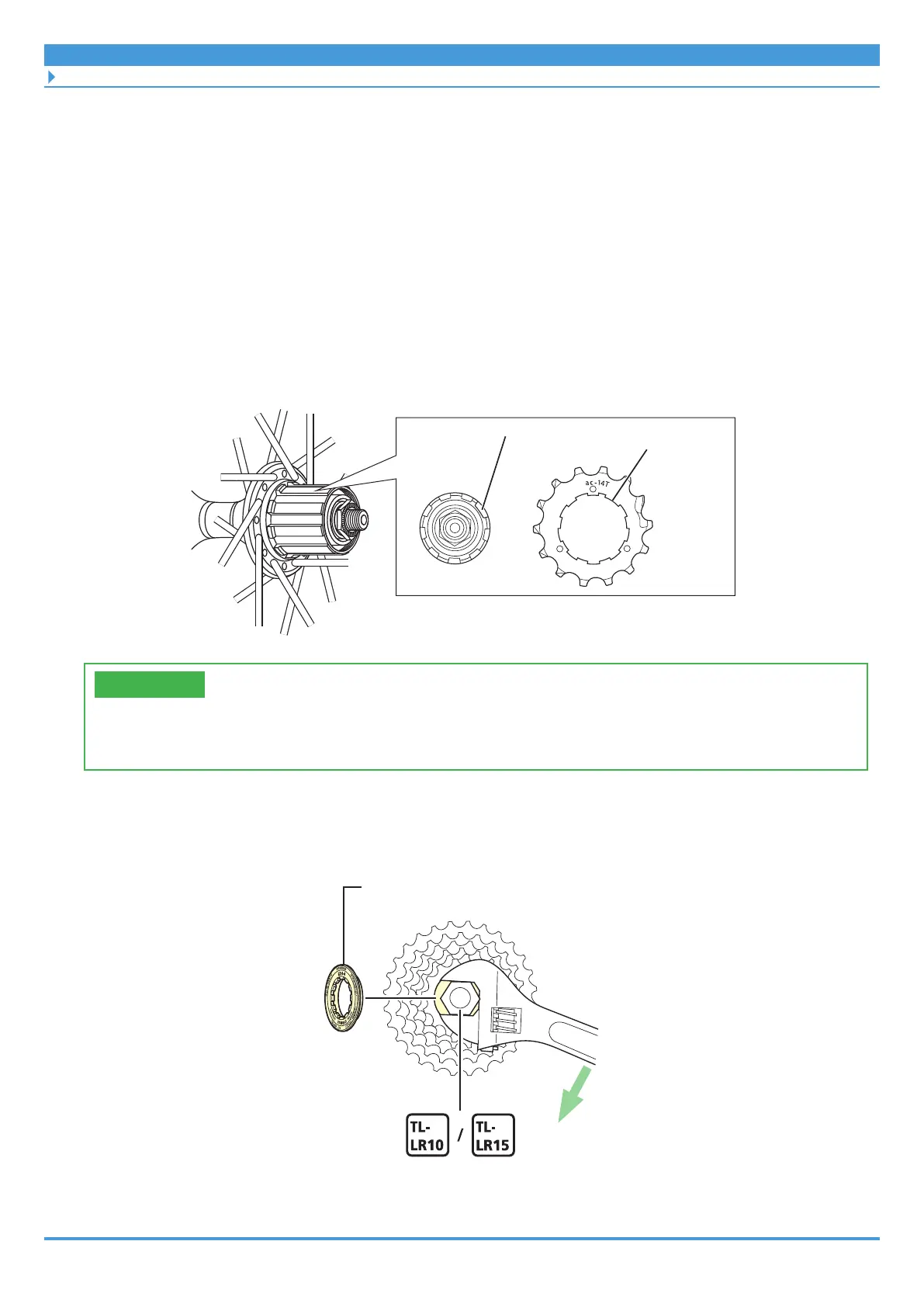

1. Place all of the sprockets on the freewheel body.
Place the sprockets in descending order from the largest sprocket.
Place the sprockets so that the wide convex section of the sprocket is aligned with the
wide groove in the freewheel body.
The marked side of the sprockets must be facing outward.
Wide part
Wide part
TECH TIPS
• There is only one wide groove area on the freewheel body and on each sprocket.
Check when setting the sprockets.
2. Place the lock ring into the freehub body and use a SHIMANO original
tool to tighten.
