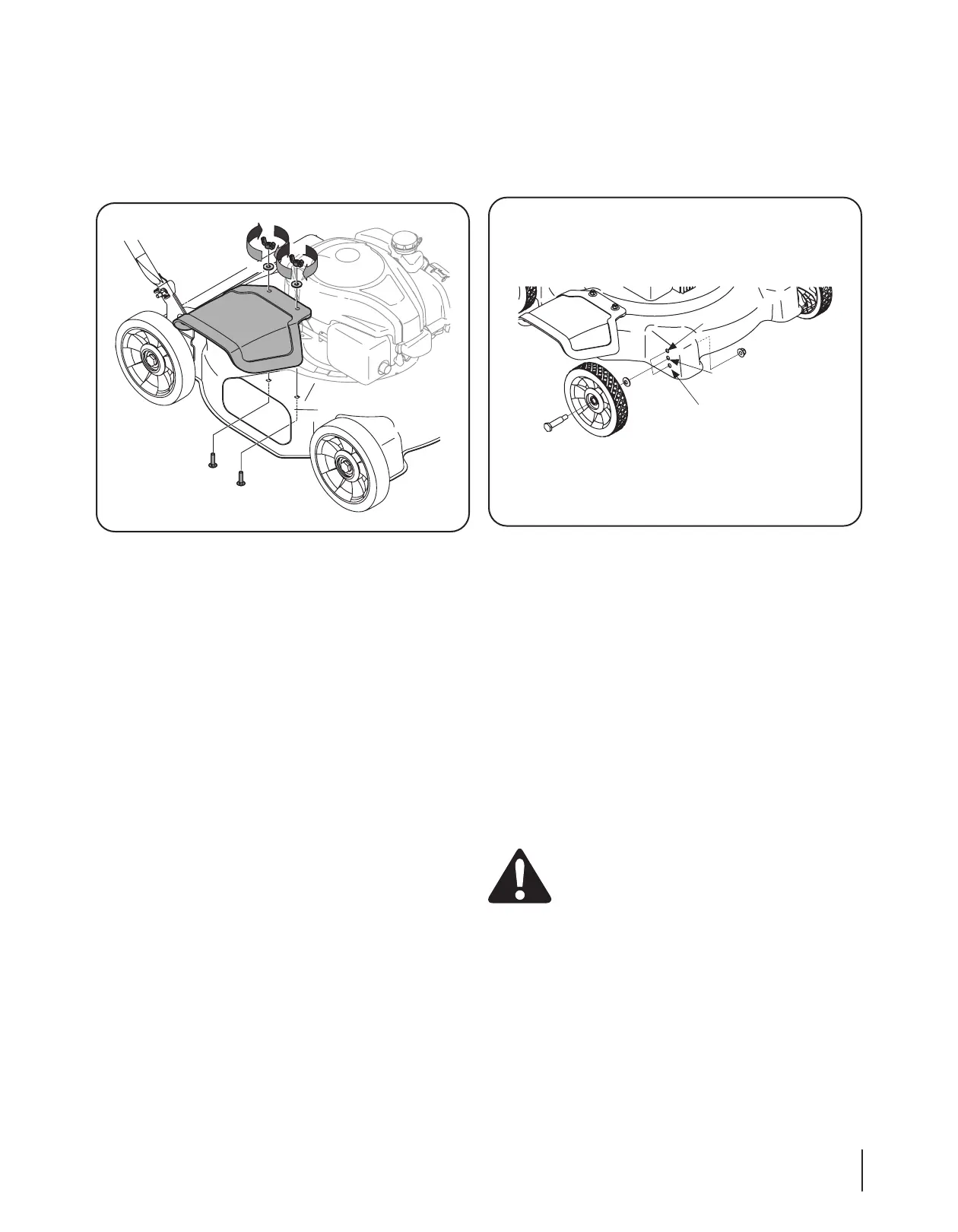

11Section 3 — ASSembly & Set-Up
Chute Deflector
NOTE: Use the hardware in Group 2 to complete the following
steps.
1. Align the holes on the chute deflector with the
corresponding holes on the deck surface. See Figure 3-5.
(c)
(a)
(a)
(b)
(b)
(c)
Figure 3-5
2. Insert carriage screws (a) up through the underside of the
deck and through the chute deflector.
3. Secure each screw (a) with a washer (b) and
metal wing nut (c).
Adjustments
Cutting Height
1. Remove the shoulder screws (a), washers (b) (front wheels
only), and nuts (c) from the wheels. See Figure 3-6.
(c)
(b)
(a)
Low
Medium
High
Figure 3-6
2. Reattach the wheels with shoulder screws,
washers (b) (front wheels only), and nuts (c) at one of the
other two holes. Remember to attach ALL wheels at the
same relative position to ensure an even cut. For a higher
cutting height, use the lower hole on the deck. For a lower
cutting height, use the upper hole.
Set-Up
Gas and Oil Fill-Up
Refer to the Engine Operator’s Manual for additional engine
information.
1. Add oil provided before starting unit for the first time out
of the box.
2. Service the engine with gasoline as instructed in the
Engine Operator’s Manual.
WARNING: Use extreme care when handling
gasoline. Gasoline is extremely flammable and the
vapors are explosive. Never fuel the machine
indoors or while the engine is hot or running.
Extinguish cigarettes, cigars, pipes and any other
sources of ignition.
