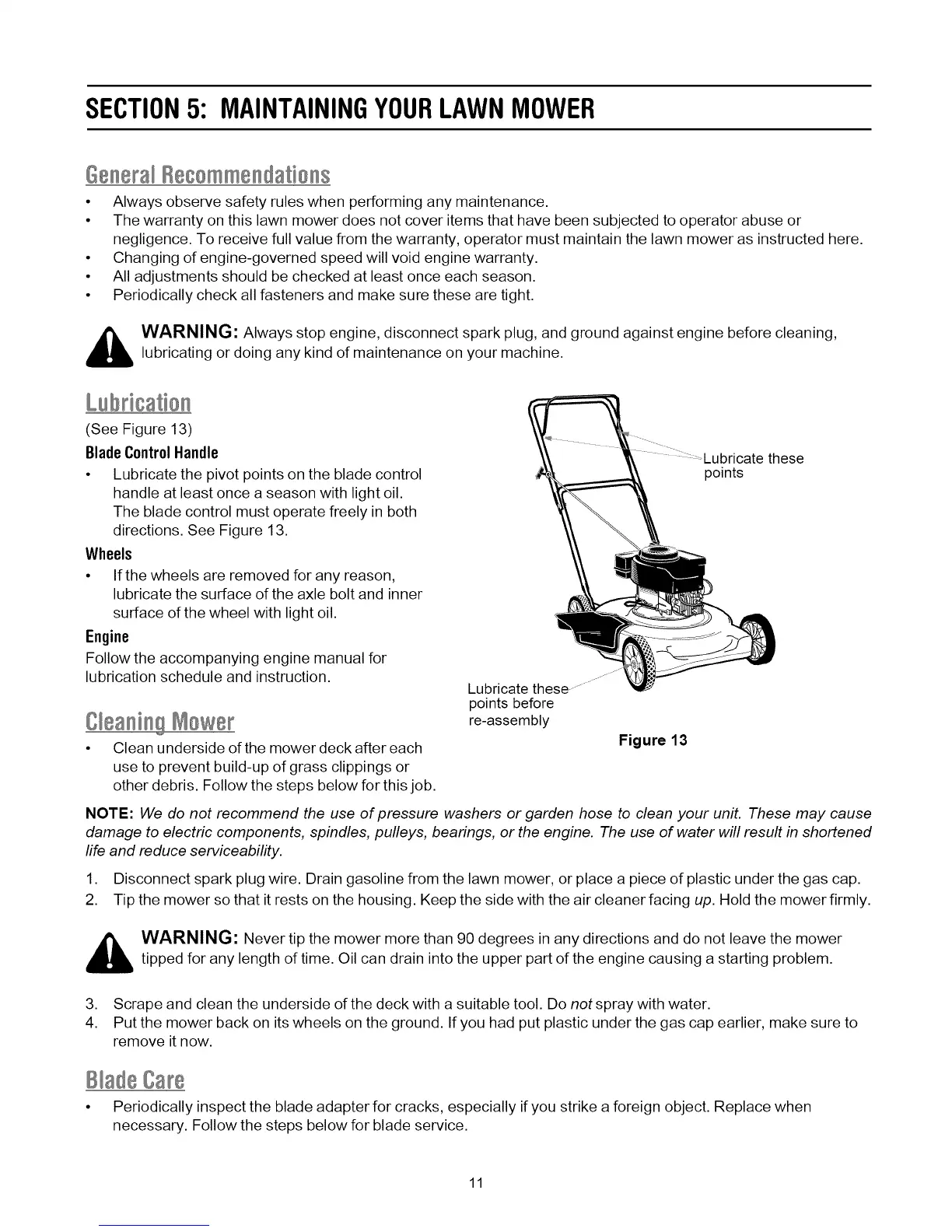

SECTION5: MAINTAININGYOURLAWNMOWER
88s® alSe88mmssdatis s
• Always observe safety rules when performing any maintenance.
• The warranty on this lawn mower does not cover items that have been subjected to operator abuse or
negligence. To receive full value from the warranty, operator must maintain the lawn mower as instructed here.
• Changing of engine-governed speed will void engine warranty.
• All adjustments should be checked at least once each season.
• Periodically check all fasteners and make sure these are tight.
,_ WARNING: Always stop engine, disconnect spark plug, and ground against engine before cleaning,
lubricating or doing any kind of maintenance on your machine.
(See Figure 13)
BladeControlHandle
• Lubricate the pivot points on the blade control
handle at least once a season with light oil.
The blade control must operate freely in both
directions. See Figure 13.
Wheels
• If the wheels are removed for any reason,
lubricate the surface of the axle bolt and inner
surface of the wheel with light oil.
Engine
Follow the accompanying engine manual for
lubrication schedule and instruction.
Clsasi gMsws
• Clean underside of the mower deck after each
use to prevent build-up of grass clippings or
other debris. Follow the steps below for this job.
ss-
Lubricate these..................
points before
re-assembly
Figure 13
points
these
NOTE: We do not recommend the use of pressure washers or garden hose to clean your unit. These may cause
damage to electric components, spindles, pulleys, bearings, or the engine. The use of water will result in shortened
life and reduce serviceability.
1. Disconnect spark plug wire. Drain gasoline from the lawn mower, or place a piece of plastic under the gas cap.
2. Tip the mower so that it rests on the housing. Keep the side with the air cleaner facing up. Hold the mower firmly.
,_ WARNING: Never tip the mower more than 90 degrees in any directions and do not leave the mowertipped for any length of time. Oil can drain into the upper part of the engine causing a starting problem.
3. Scrape and clean the underside of the deck with a suitable tool. Do not spray with water.
4. Put the mower back on its wheels on the ground. If you had put plastic under the gas cap earlier, make sure to
remove it now.
Blad®Ca 8
• Periodically inspect the blade adapter for cracks, especially if you strike a foreign object. Replace when
necessary. Follow the steps below for blade service.
11
