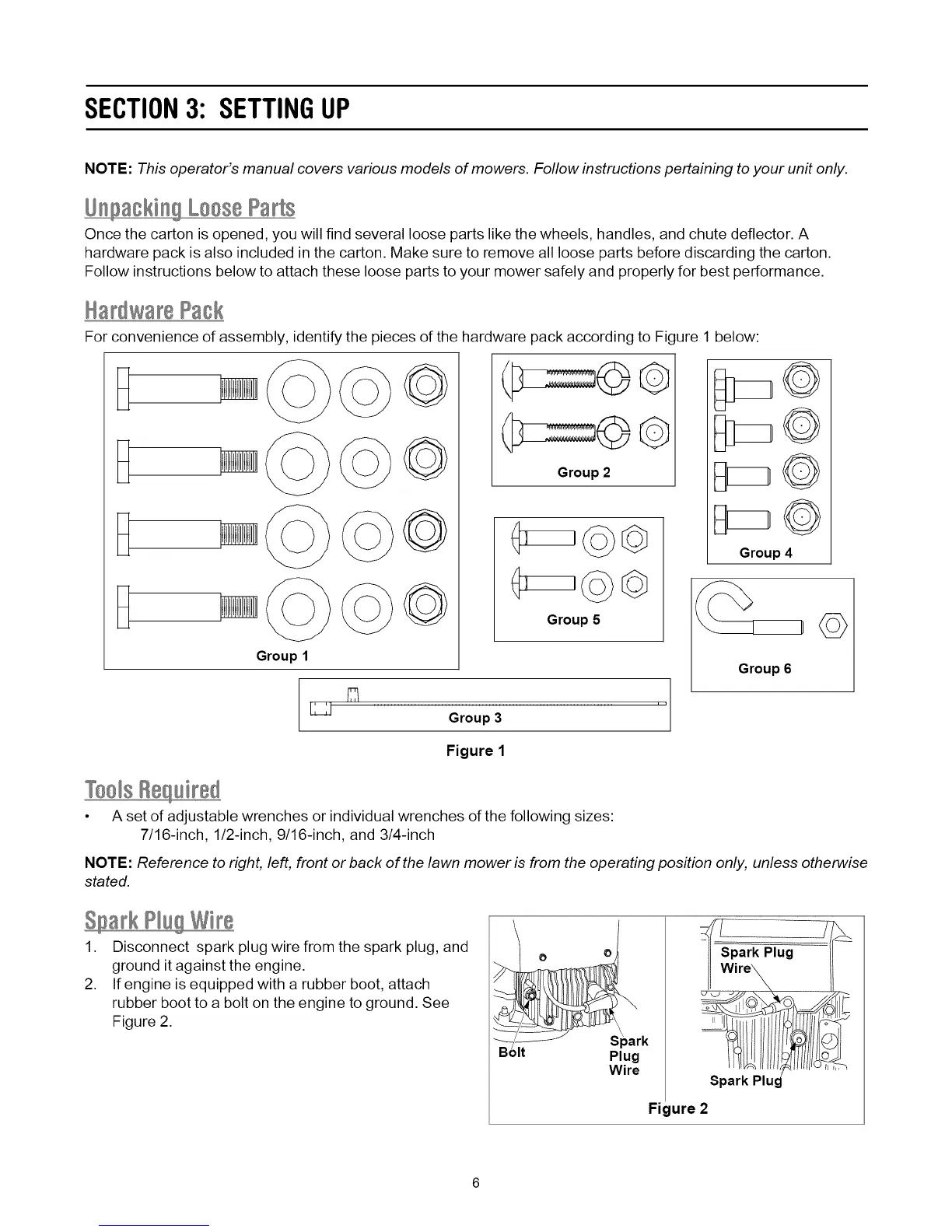

SECTION3: SETTINGUP
NOTE: This operator's manual covers various models of mowers. Follow instructions pertaining to your unit only.
Us L00s®Parts
Once the carton is opened, you will find several loose parts like the wheels, handles, and chute deflector. A
hardware pack is also included in the carton. Make sure to remove all loose parts before discarding the carton.
Follow instructions below to attach these loose parts to your mower safely and properly for best performance.
Na_dwa_ePack
For convenience of assembly, identify the pieces of the hardware pack according to Figure 1 below:
©
Group 1
I::1
©
Group 2
Group 5
©
©
Group 3
Group 4
Group 6
Figure 1
©
T881sgsqsi
• A set of adjustable wrenches or individual wrenches of the following sizes:
7/16-inch, 1/2-inch, 9/16-inch, and 3/4-inch
NOTE: Reference to right, left, front or back of the lawn mower is from the operating position only, unless otherwise
stated.
_ark PI_ Wire
1. Disconnect spark plug wire from the spark plug, and
ground it against the engine.
2. If engine is equipped with a rubber boot, attach
rubber boot to a bolt on the engine to ground. See
Figure 2.
uolt Plug
Wire
=_VPark Plug
ireX
Spark Plug
Figure 2
