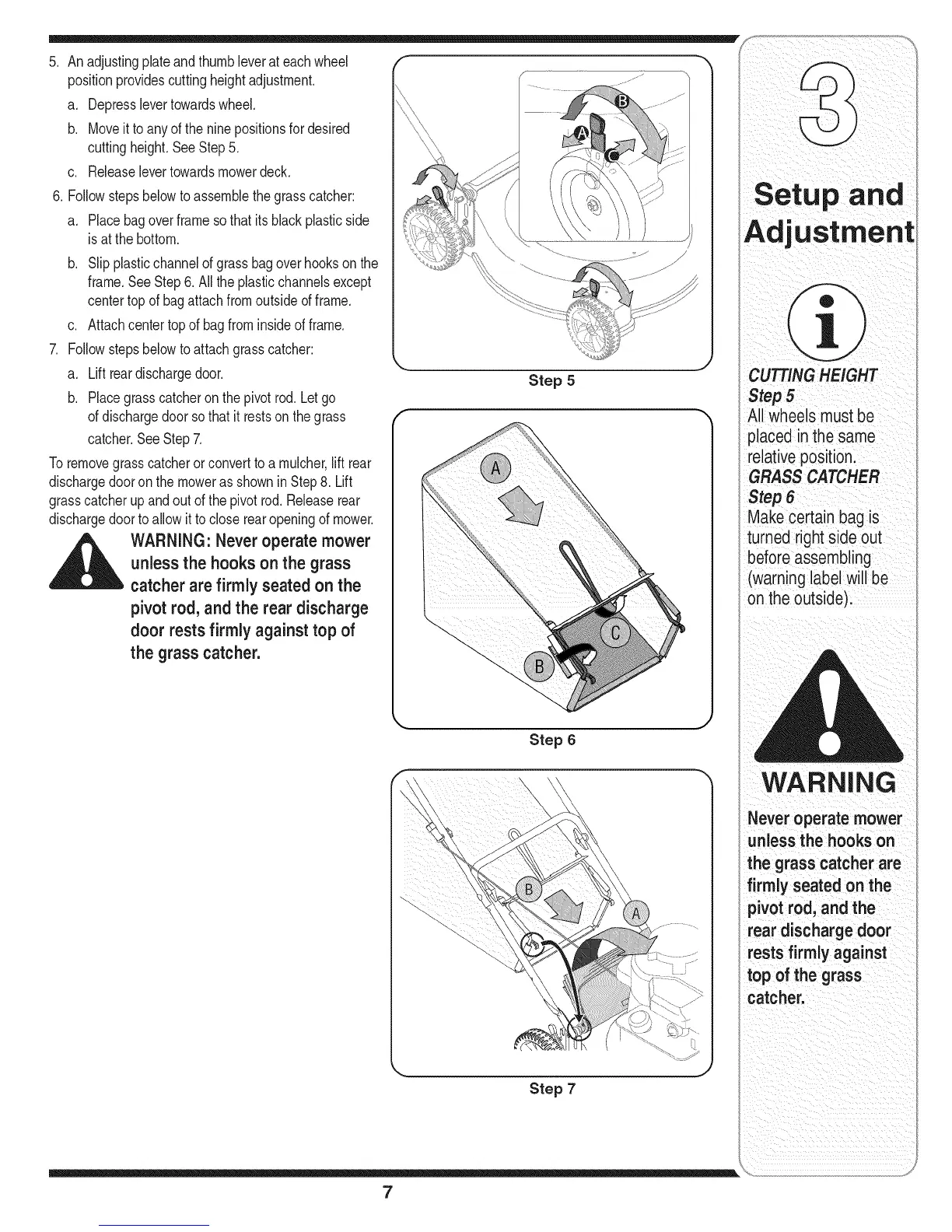

5. An adjustingplateandthumbleverat each wheel
positionprovidescuttingheightadjustment.
a. Depresslevertowardswheel.
b. Moveittoanyof theninepositionsfor desired
cuttingheight.SeeStep 5.
c. Releaselevertowardsmowerdeck.
6. Followstepsbelowto assemblethe grasscatcher:
a. Placebagoverframesothat itsblackplasticside
is atthe bottom.
b. Slip plasticchannelof grassbagoverhooksonthe
frame.SeeStep6. All theplasticchannelsexcept
centertopof bagattachfromoutsideof frame.
c. Attachcentertopofbagfrominsideofframe.
7. Followstepsbelowto attachgrasscatcher:
a. Liftreardischargedoor.
b. Placegrasscatcheron thepivotrod. Letgo
ofdischargedoorsothat itrestson thegrass
catcher.SeeStep7.
Toremovegrasscatcherorconvertto a mulcher,lift rear
dischargedooron themoweras showninStep8. Lift
grasscatcherupandoutofthe pivotrod.Releaserear
dischargedoortoallow it to closerearopeningof mower.
__IK ARNING: Never operate mower
unlessthe hooks on the grass
catcherare firmly seated onthe
pivot rod, and the rear discharge
door rests firmly against top of
the grass catcher.
Step 5
Step 6
\
..... J
Step 7
7
uStment
CUTTING HEIGHT
Step5
All wheelsmust be
placedin the same
relative positionl
GRASS CATCHER
Stepe
Makecertain bag is
turned right side out
before assembling
(warninglabel Willbe
on the outside):
WARNING
Never operate mower
unless the hooks on
the grasscatcher are
firmly seated on the
_ivot rod, and the
rear discharge door
rests firmly against
top of the grass
catcher.
To Next Page
