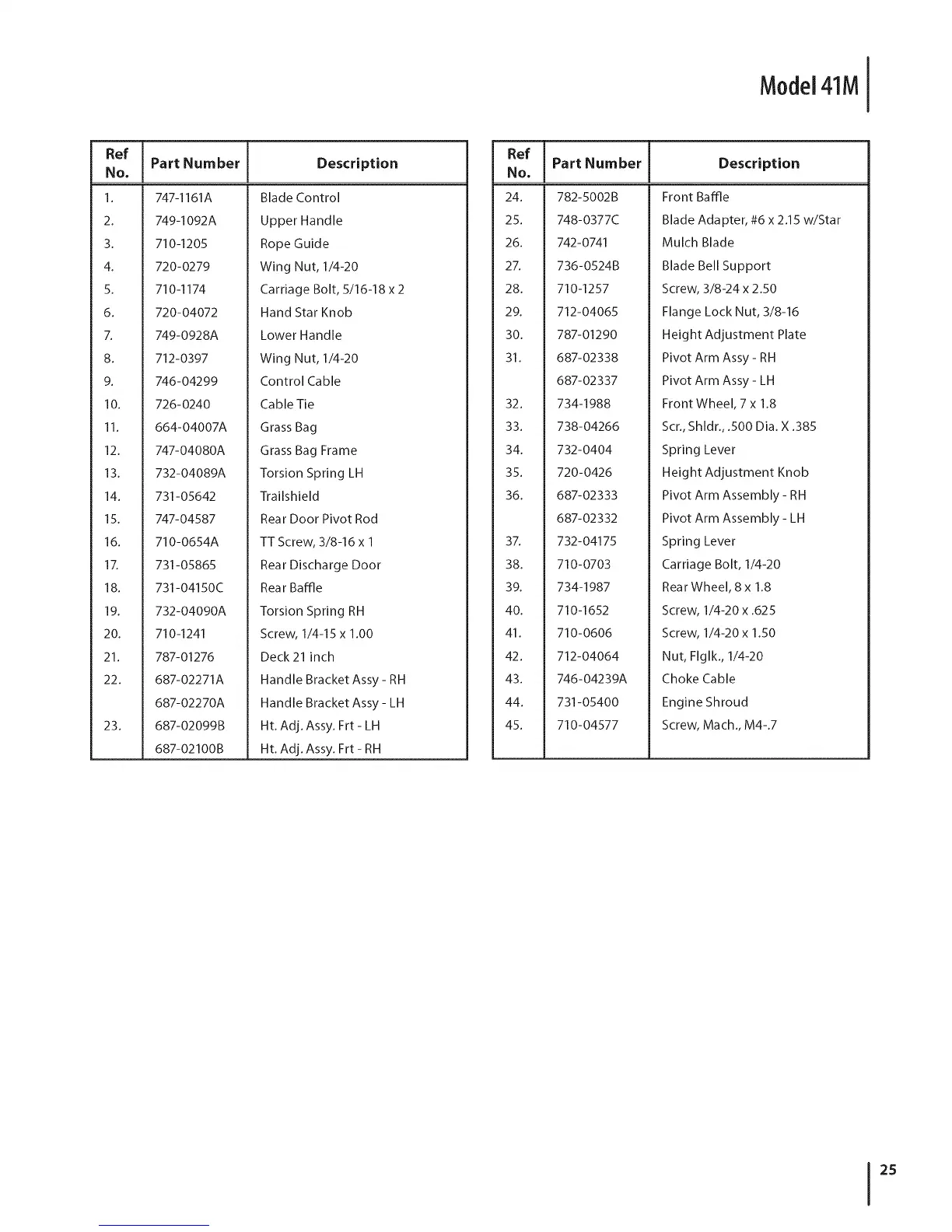

MTD 11A-41MB000 User Manual

Model41M
Ref I Part Number
NO.
I
1. 747-1161A
2. 749-I092A
3. 710-1205
4. 720-0279
5. 710-1174
6. 720-04072
7. 749-0928A
8. 712-0397
9. 746-04299
10. 726-0240
11. 664-04007A
12. 747-04080A
13. 732-04089A
14. 731-05642
15. 747-04587
16. 710-0654A
IX 731-05865
18. 731-04150C
19. 732-04090A
20. 710-1241
21. 787-01276
22. 687-02271A
687-02270A
23. 687-02099B
687-02100B
Description
Blade Control
Upper Handle
Rope Guide
Wing Nut, 1/4-20
Carriage Bolt, 5/16-18 x 2
Hand Star Knob
Lower Handle
Wing Nut, 1/4-20
Control Cable
Cable Tie
Grass Bag
Grass Bag Frame
Torsion Spring LH
Trailshield
Rear Door Pivot Rod
TT Screw, 3/8-16 x 1
Rear Discharge Door
Rear Baffle
Torsion Spring RH
Screw, 1/4-15 x 1.00
Deck 21 inch
Handle Bracket Assy - RH
Handle Bracket Assy - LH
Hr. Adj. Assy. Frt - LH
Hr. Adj. Assy. Frt - RH
Ref
No.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33.
34.
35.
36.
37.
38.
39.
40.
41.
42.
43.
44.
45.
Part Number Description
782-5002B
748-0377C
742-0741
736-0524B
710-1257
712-04065
787-01290
687-02338
687-02337
734-1988
738-04266
732-0404
720-0426
687-02333
687-02332
732-04175
Front Baffle
Blade Adapter, #6 x 2.15 w/Star
Mulch Blade
Blade Bell Support
Screw, 3/8-24 x 2.50
Flange Lock Nut, 3/8-16
Height Adjustment Plate
Pivot Arm Assy - RH
Pivot Arm Assy - LH
Front Wheel, 7 x 1.8
Scr., Shldr., .500 Dia. X .385
Spring Lever
Height Adjustment Knob
Pivot Arm Assembly - RH
Pivot Arm Assembly - LH
Spring Lever
710-0703
734-1987
710-1652
710-0606
712-04064
746-04239A
731-05400
710-04577
Carriage Bolt, 1/4-20
Rear Wheel, 8 x 1.8
Screw, 1/4-20 x .625
Screw, 1/4-20 x 1.50
Nut, Flglk., 1/4-20
Choke Cable
Engine Shroud
Screw, Mach., M4-.7
2S
