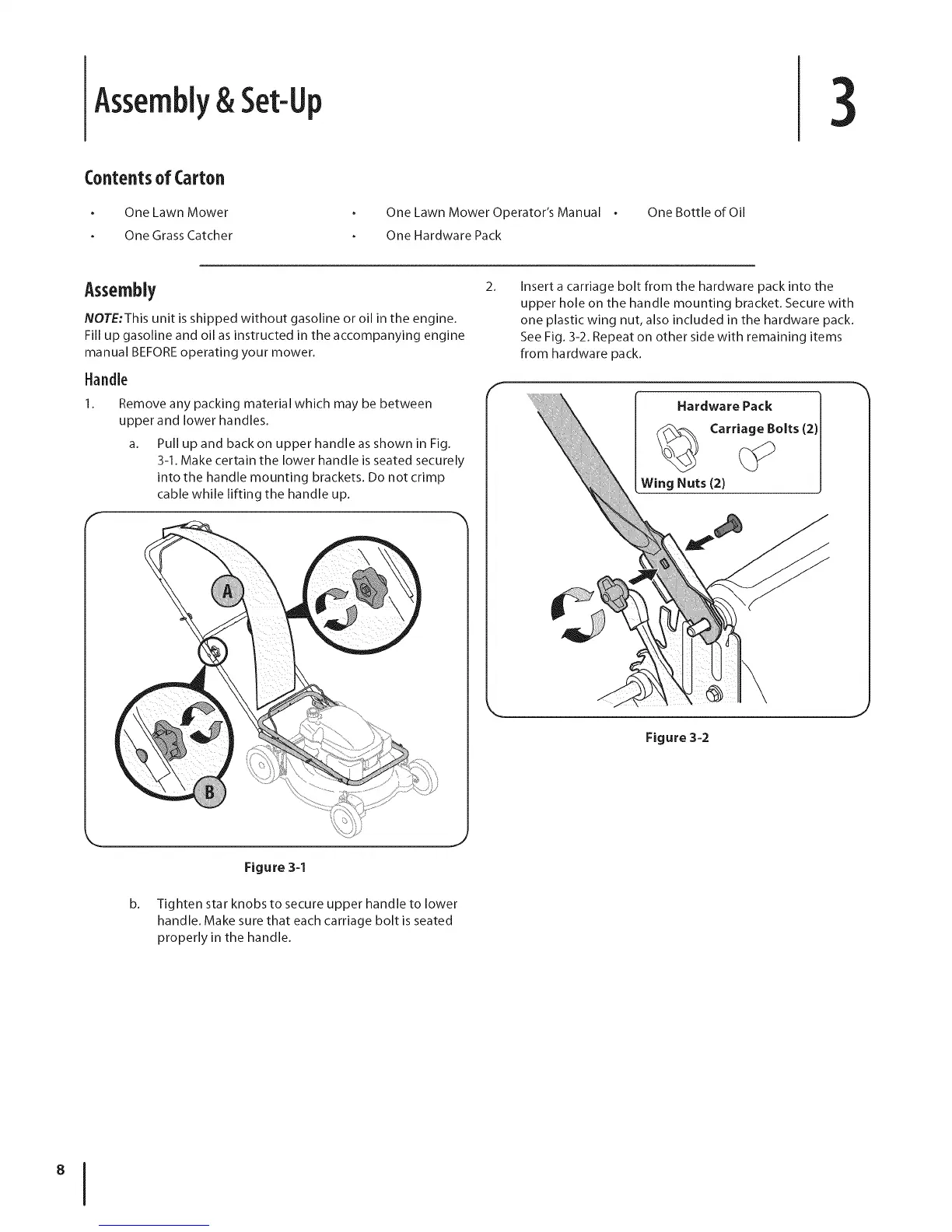

Assembly& Set-Up
3
Contents of Carton
One Lawn Mower
One Grass Catcher
One Lawn Mower Operator's Manual
One Hardware Pack
One Bottle of Oil
Assembly
NOTE:This unit is shipped without gasoline or oil in the engine.
Fill up gasoline and oil as instructed in the accompanying engine
manual BEFORE operating your mower.
Handle
1.
Remove any packing material which may be between
upper and lower handles.
a. Pull up and back on upper handle as shown in Fig.
3-1. Make certain the lower handle is seated securely
into the handle mounting brackets. Do not crimp
cable while lifting the handle up.
2.
F
Insert a carriage bolt from the hardware pack into the
upper hole on the handle mounting bracket. Secure with
one plastic wing nut, also included in the hardware pack.
See Fig. 3-2. Repeat on other side with remaining items
from hardware pack.
Hardware Pack
Carriage Bolts (2)
Wing Nuts (2)
Figure 3-2
Figure 34
b. Tighten star knobs to secure upper handle to lower
handle. Make sure that each carriage bolt is seated
properly in the handle.
