WARNING
The blade control
mechanism isa
safety device. Never
attempt to bypassits
operations.
; Useextreme care
when handling
gasoline.Gasoline is
extremely flammable
and the vapors are
explosive. Never fuel
the machine indoors
or while the engine
is hot or running.
I Extinguish cigarettes,
cigars, pipes and
other sources of
ignition.
Keep hands and feet
away from the chute
area on cutting deck.
Referto warning
label on the unit.
Recoil Starte

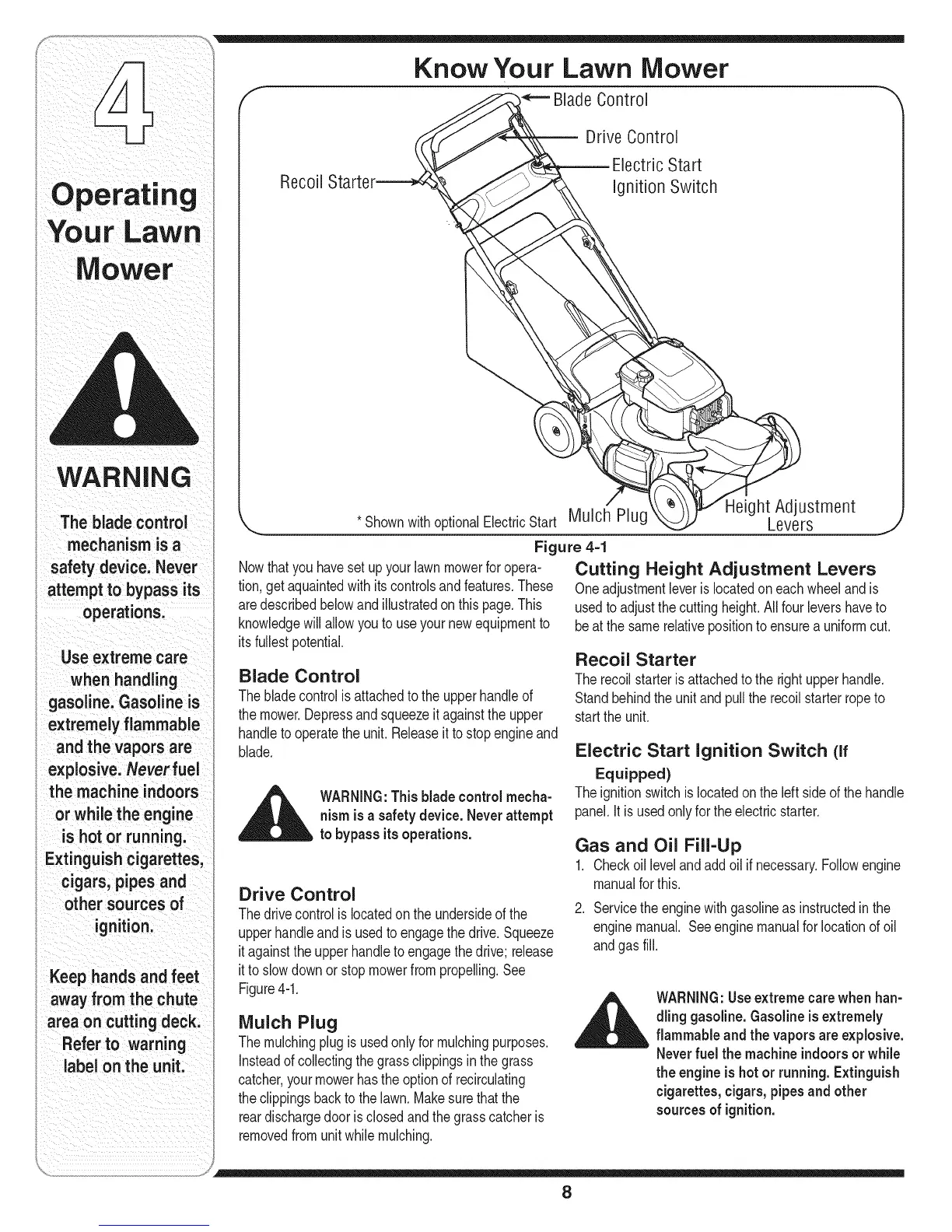

Know Your Lawn Mower
BladeControl
Drive Control
Electric Start
Ignition Switch
*Shownwith
ElectricStart Mulch Plug
Height Adjustment
Levers
Figure 4-1
Nowthatyouhavesetupyour lawnmowerfor opera-
tion,get aquaintedwithits controlsandfeatures.These
aredescribedbelowandillustratedonthis page.This
knowledgewillallowyoutouseyournewequipmentto
itsfullestpotential.
Blade Control
Thebladecontrolisattachedto the upperhandleof
themower.Depressand squeezeitagainsttheupper
handletooperatethe unit. Releaseit to stopengineand
blade.
,__ WARNING:Thisbladecontrolmecha-
nism is a safetydevice. Neverattempt
to bypass itsoperations.
Drive Control
Thedrivecontrolislocatedontheundersideof the
upperhandleand isusedtoengagethedrive.Squeeze
itagainsttheupperhandleto engagethedrive; release
ittoslowdownor stopmowerfrompropelling.See
Figure4-1.
Mulch Plug
Themulchingplugis usedonlyformulchingpurposes.
Insteadof collectingthe grassclippingsinthe grass
catcher,yourmowerhastheoptionof recirculating
theclippingsbacktothelawn.Makesurethatthe
reardischargedoorisclosedandthe grasscatcheris
removedfromunitwhilemulching.
Cutting Height Adjustment Levers
Oneadjustmentleverislocatedon eachwheelandis
usedtoadjustthecuttingheight.All fourlevershaveto
beat the samerelativepositionto ensurea uniformcut.
Recoil Starter
Therecoilstarterisattachedtotherightupperhandle.
Standbehindtheunitand pullthe recoilstarterropeto
startthe unit.
Electric Start Ignition Switch (if
Equipped)
Theignitionswitchis locatedon theleftsideofthehandle
panel.It isusedonlyfor the electricstarter.
Gas and Oil Fill-Up
1. Checkoillevelandaddoil if necessary.Followengine
manualforthis.
2. Servicetheenginewithgasolineas instructedinthe
enginemanual. Seeenginemanualfor locationof oil
andgas fill.
__kk ARNING:Useextremecarewhenhan-
dling gasoline.Gasoline is extremely
flammableand the vapors areexplosive.
Neverfuel the machine indoorsor while
the engine ishot or running. Extinguish
cigarettes, cigars, pipesand other
sources of ignition.
8
