SECTION4:
Bt
KNOWYOURLAWNTRACTOR
A
G
H
J
C
K
D
E
L
M

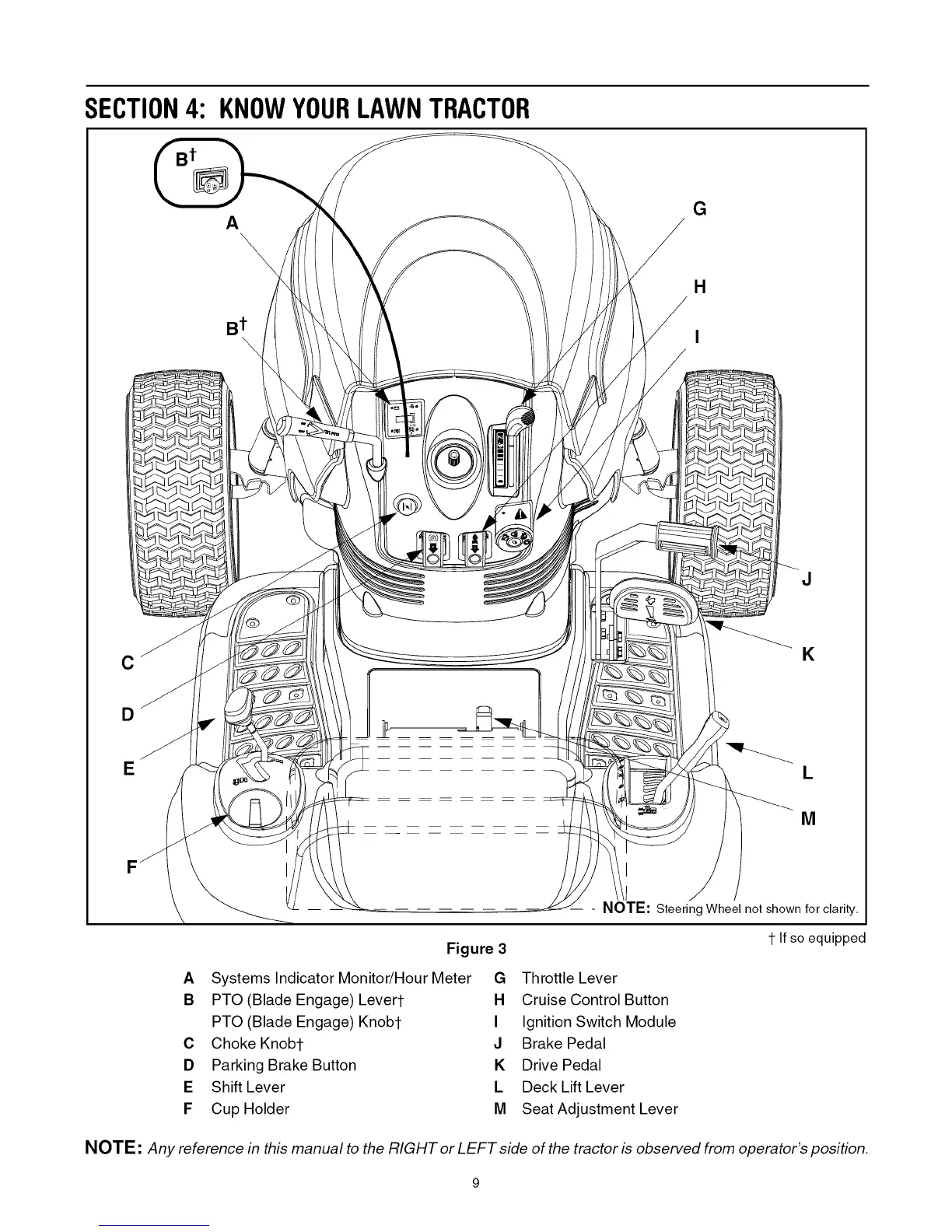

Figure 3
- NOTE: Steering Wheel not shown for clarity,
f If so equipped
A Systems Indicator Monitor/Hour Meter G Throttle Lever
B PTO (Blade Engage) Lever1- H Cruise Control Button
PTO (Blade Engage) Knob1- I Ignition Switch Module
C Choke Knob1- J Brake Pedal
D Parking Brake Button K Drive Pedal
E Shift Lever L Deck Lift Lever
F Cup Holder M Seat Adjustment Lever
NOTE: Any reference in this manual to the RIGHT or LEFT side of the tractor is observed from operator's position.
