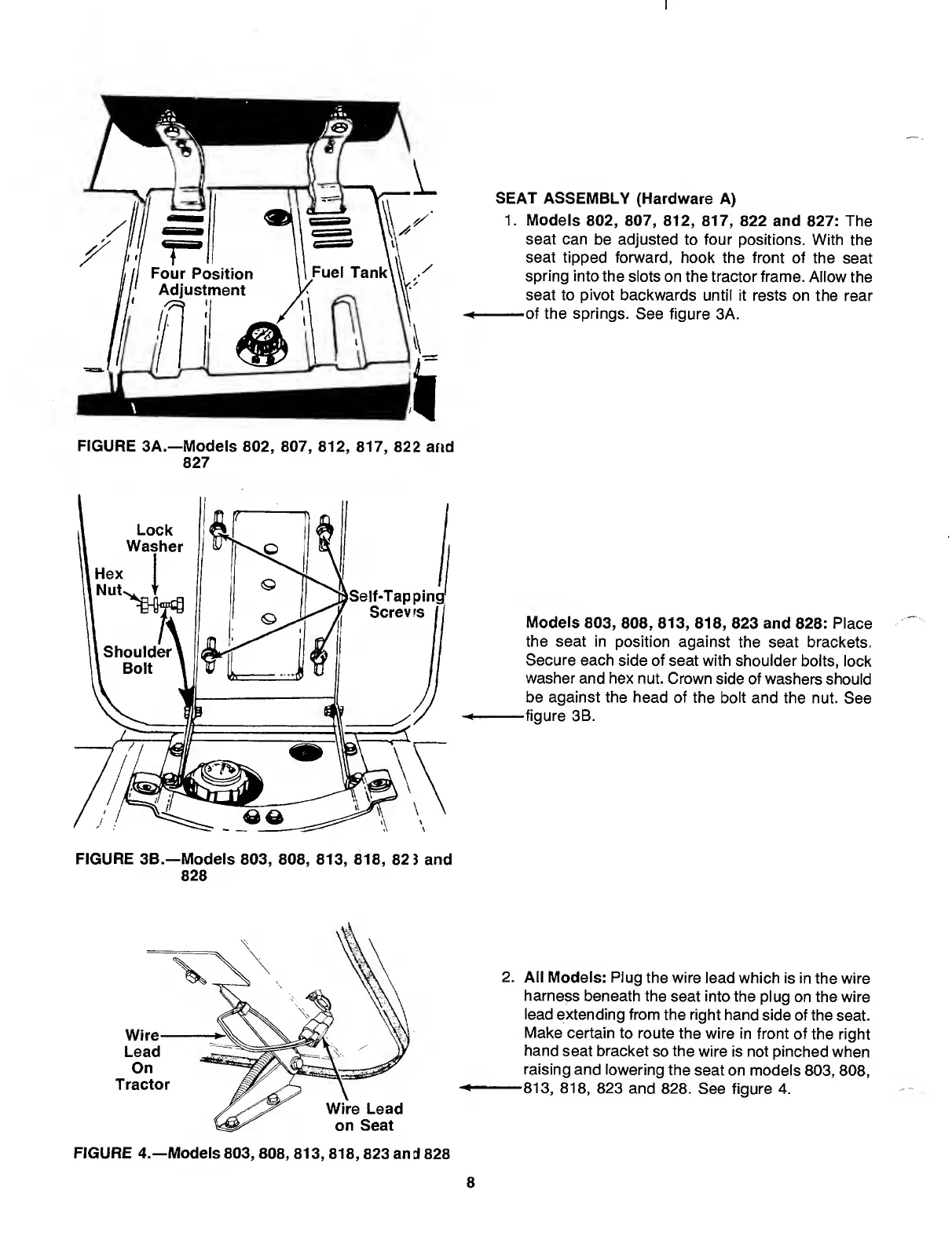

SEAT ASSEMBLY (Hardware A)
1. Models 802, 807, 812, 817, 822 and 827: The
seat can be adjusted to four positions. With the
seat tipped forward, hook the front of the seat
spring into the slots on the tractor frame. Allow the
seat to pivot backwards until it rests on the rear
-of the springs. See figure 3A.
FIGURE 3A.—Models 802, 807, 812, 817, 822 aad
827
Models 803, 808, 813, 818, 823 and 828: Place
the seat in position against the seat brackets.
Secure each side of seat with shoulder bolts, lock
washer and hex nut. Crown side of washers should
be against the head of the bolt and the nut. See
figure 3B.
FIGURE 3B.—Models 803, 808, 813, 818, 82 3 and
828
FIGURE 4.—Models 803,808, 813, 818,823 and 828
2. All Models: Plug the wire lead which is in the wire
harness beneath the seat into the plug on the wire
lead extending from the right hand side of the seat.
Make certain to route the wire in front of the right
hand seat bracket so the wire is not pinched when
raising and lowering the seat on models 803, 808,
—813, 818, 823 and 828. See figure 4.
