Contents of Carton
3
6
Before beginning installation, remove all parts from the carton to make sure everything is present. Carton contents are listed below
and shown in Figure 3-1. Three hardware packs are included in this kit and are detailed on the following page.
• Hitch Bracket Kit (5 Pcs.)
• Discharge Chute Elbow
• Grass Catcher Cover
• Two Grass Bag Assemblies
• Upper Chute Tube
• Self-Adhesive Foam Strip
• Upper Chute Support
• Hinge Cover Pin
• Vertical Support Bracket
• Bag Support Assembly
• Bagger Weight
• Three Hardware Packs (Detailed & illustrated on next page)
• Bracket Kit (not needed for this installation)
This bracket kit not needed
for installation on this unit.

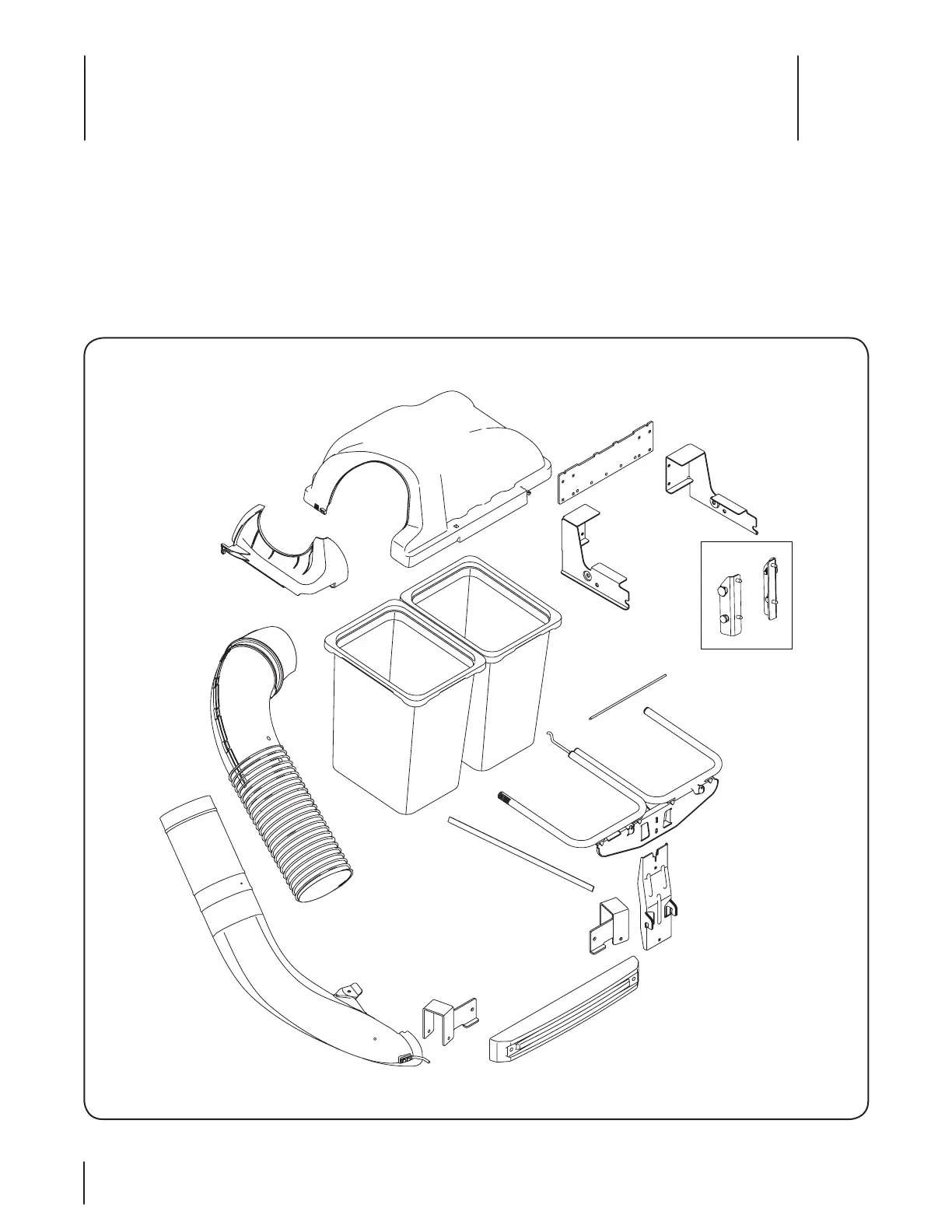

Figure 3-1
