NOTE: Stand behind
the tiller as if you were
goingto operate it. Your
righthand corresponds
to the right sideof the
tiller; your left hand
correspondsto the left
sideof the tiller.
NOTE:This operator's
manualmay cover
various models of tillers.
The units illustrated
mayvary slightlyfrom
your unit. Followonly
those instructionswhich
pertainto your model
number.
iMPORTANT
::Thisunit is shipped
without gasoline or oi
i in the engine. Fillup
i gasoline and oil as
instructedin the accom-
panying engine manual
i BEFORE operatingyour
machine.

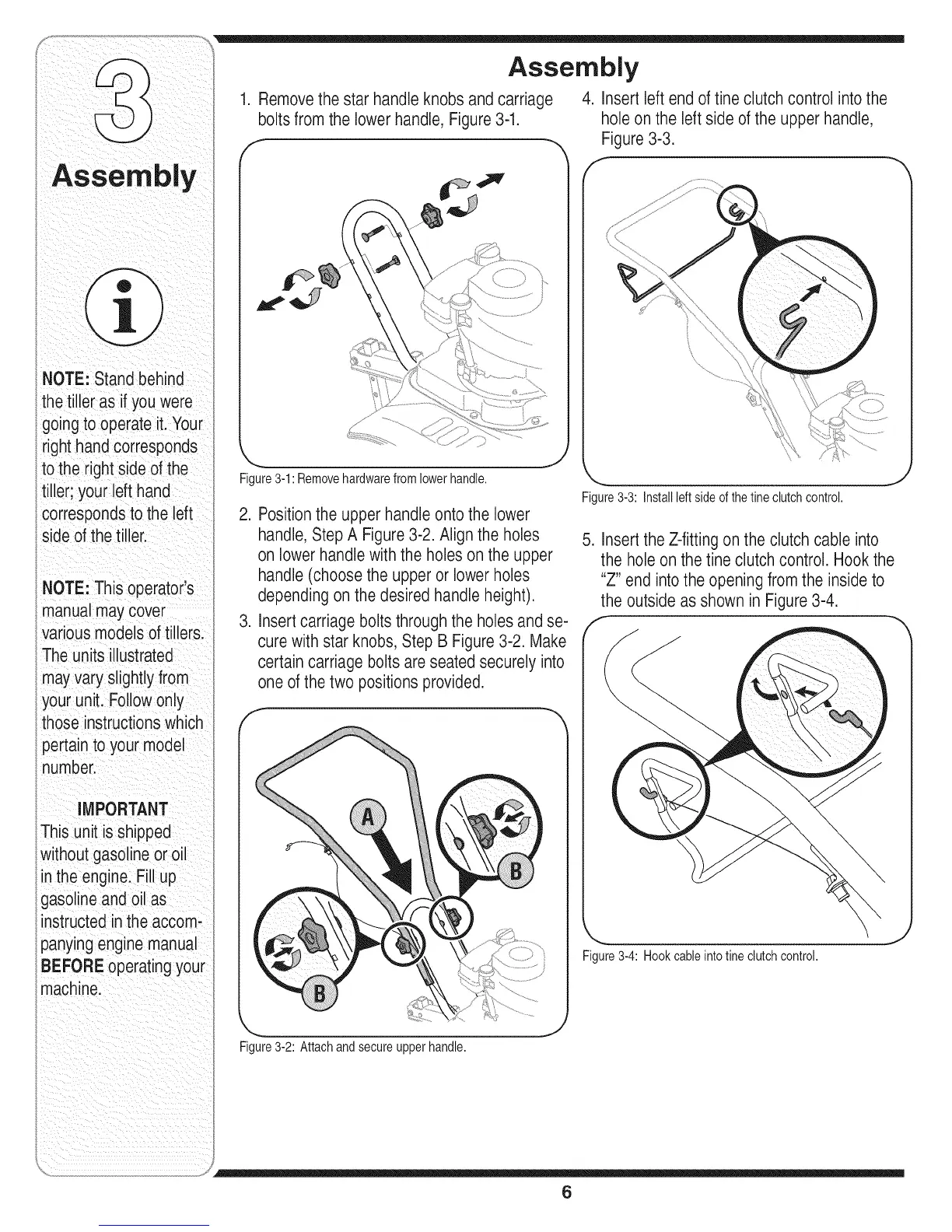

Assembly
1. Removethe star handle knobs andcarriage
boltsfrom the lowerhandle, Figure 3-1.
Figure3-1:Removehardwarefrom lowerhandle.
J
2. Positionthe upper handle ontothe lower
handle,Step A Figure 3-2. Align the holes
on lower handle with the holes on the upper
handle (choosethe upper or lower holes
dependingon the desired handle height).
3. Insertcarriage bolts through the holes and se-
cure with star knobs,Step B Figure3-2. Make
certain carriage bolts are seated securelyinto
one of the two positions provided.
f
4. Insert left end of tine clutch control into the
hole on the leftside of the upper handle,
Figure3-3.
f
\
Figure3-3: Installleft sideofthe tineclutchcontrol.
J
5. Insert the Z-fitting on the clutch cable into
the hole on the tine clutch control. Hook the
"Z" end into the opening from the inside to
the outside as shown in Figure3-4.
\
....... J
Figure3-4: Hookcableintotineclutchcontrol.
'_ _j
Figure3-2:Attachandsecureupperhandle.
6
