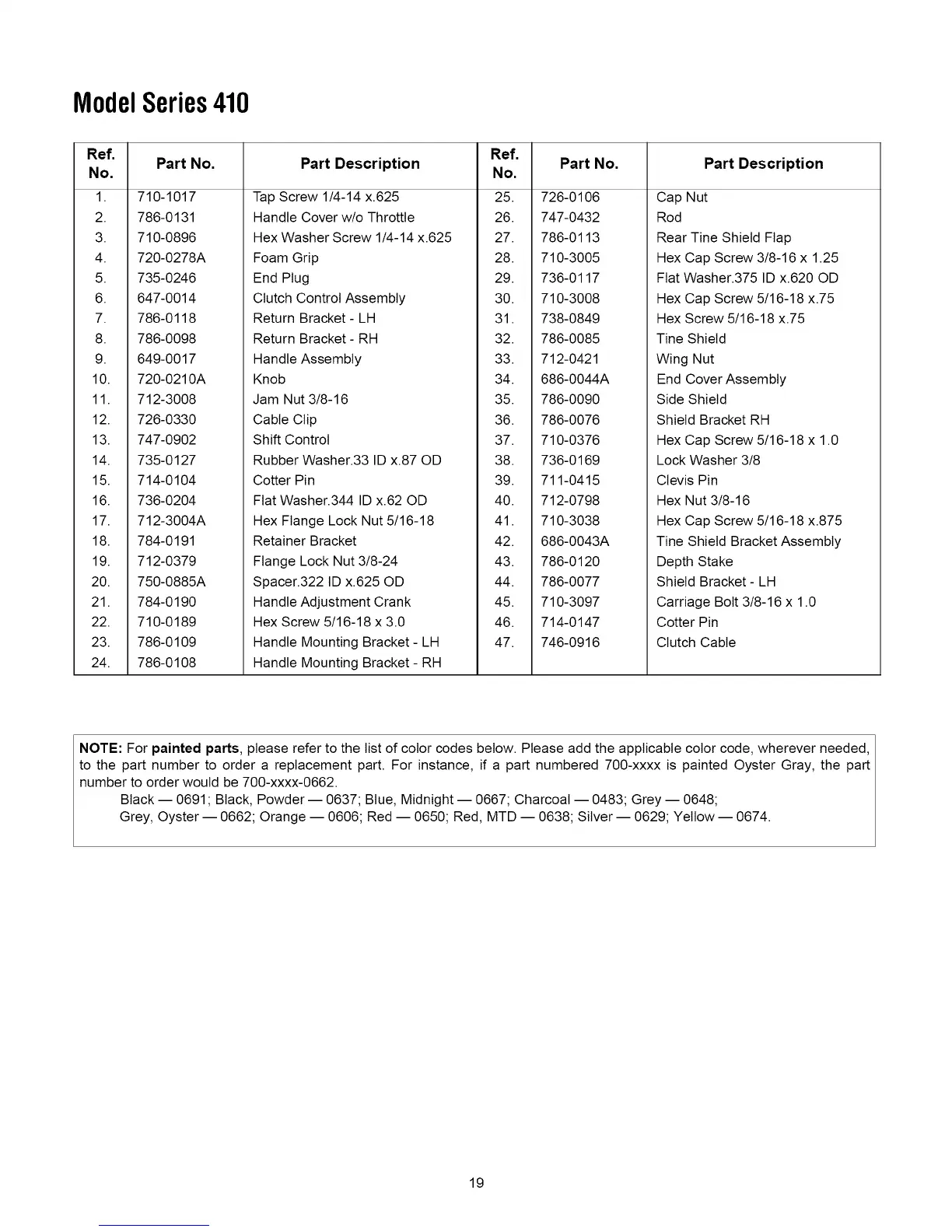

MTD 21AA413B700 - Page 19

ModelSeries410
Ref,
Part No.
No.
1. 710-1017
2. 786-0131
3. 710-0896
4. 720-0278A
5. 735-0246
6. 647-0014
7. 786-0118
8. 786-0098
9. 649-0017
10. 720-0210A
11. 712-3008
12. 726-0330
13. 747-0902
14. 735-0127
15. 714-0104
16. 736-0204
17. 712-3004A
18. 784-0191
19. 712-0379
20. 750-0885A
21. 784-0190
22. 710-0189
23. 786-0109
24. 786-0108
Ref.
Part Description No. Part No.
Tap Screw 1/4-14 x.625 25. 726-0106
Handle Cover w/o Throttle 26. 747-0432
Hex Washer Screw 1/4-14 x.625 27. 786-0113
Foam Grip 28. 710-3005
End Plug 29. 736-0117
Clutch Control Assembly 30. 710-3008
Return Bracket- LH 31. 738-0849
Return Bracket- RH 32. 786-0085
Handle Assembly 33. 712-0421
Knob 34. 686-0044A
Jam Nut 3/8-16 35. 786-0090
Cable Clip 36. 786-0076
Shift Control 37. 710-0376
Rubber Washer.33 ID x.87 OD 38. 736-0169
Cotter Pin 39. 711-0415
Flat Washer.344 ID x.62 OD 40. 712-0798
Hex Flange Lock Nut 5/16-18 41. 710-3038
Retainer Bracket 42. 686-0043A
Flange Lock Nut 3/8-24 43. 786-0120
Spacer.322 ID x.625 OD 44. 786-0077
Handle Adjustment Crank 45. 710-3097
Hex Screw 5/16-18 x 3.0 46. 714-0147
Handle Mounting Bracket- LH 47. 746-0916
Handle Mounting Bracket- RH
Part Description
Cap Nut
Rod
Rear Tine Shield Flap
Hex Cap Screw 3/8-16 x 1.25
Flat Washer.375 ID x.620 OD
Hex Cap Screw 5/16-18 x.75
Hex Screw 5/16-18 x.75
Tine Shield
Wing Nut
End Cover Assembly
Side Shield
Shield Bracket RH
Hex Cap Screw 5/16-18 x 1.0
Lock Washer 3/8
Clevis Pin
Hex Nut 3/8-16
Hex Cap Screw 5/16-18 x.875
Tine Shield Bracket Assembly
Depth Stake
Shield Bracket- LH
Carriage Bolt 3/8-16 x 1.0
Cotter Pin
Clutch Cable
NOTE: For painted parts, please refer to the list of color codes below. Please add the applicable color code, wherever needed,
to the part number to order a replacement part. For instance, if a part numbered 700-xxxx is painted Oyster Gray, the part
number to order would be 700-xxxx-0662.
Black -- 0691 ; Black, Powder-- 0637; Blue, Midnight -- 0667; Charcoal -- 0483; Grey -- 0648;
Grey, Oyster -- 0662; Orange -- 0606; Red -- 0650; Red, MTD -- 0638; Silver-- 0629; Yellow -- 0674.
