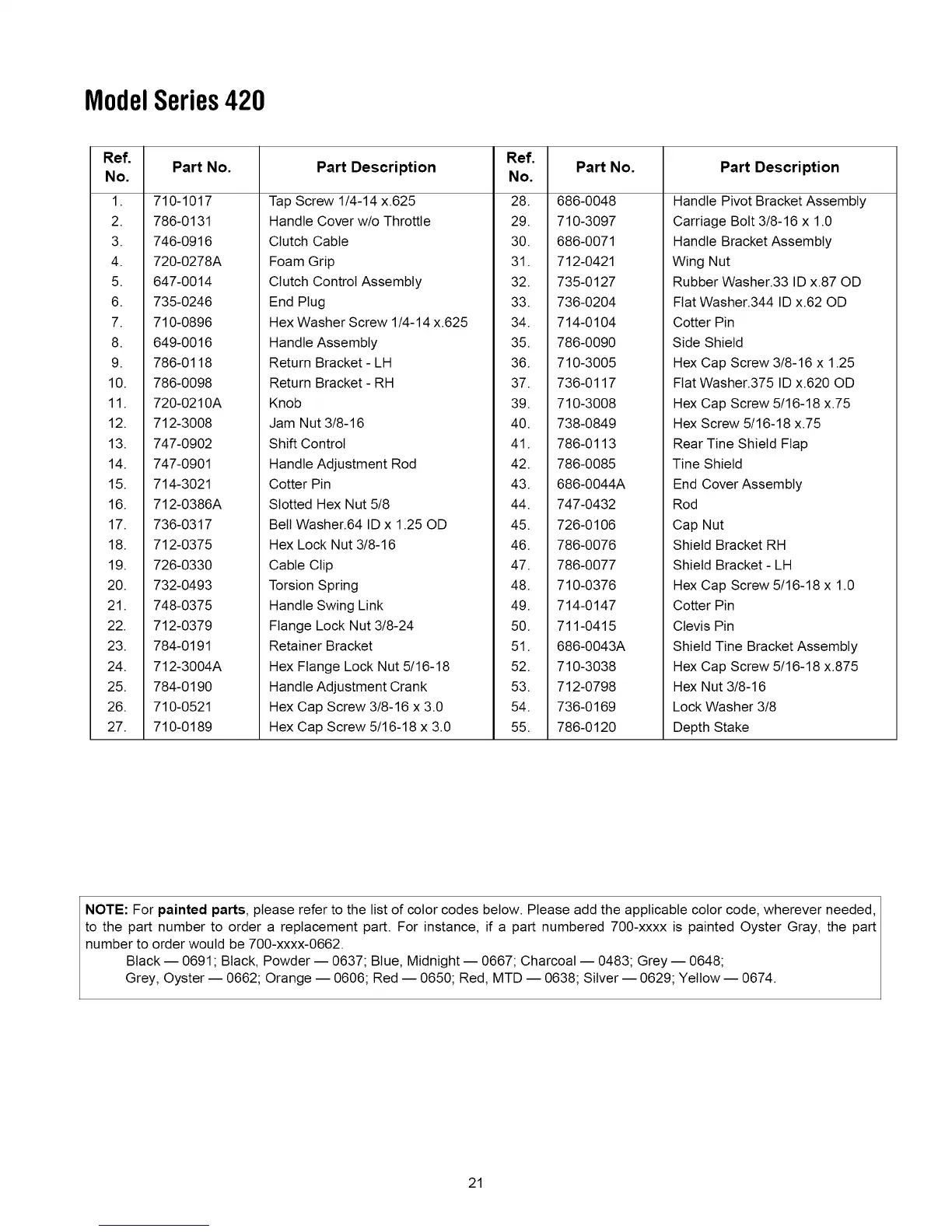

ModelSeries420
Ref,
Part No.
No.
1. 710-1017
2. 786-0131
3. 746-0916
4. 720-0278A
5. 647-0014
6. 735-0246
7. 710-0896
8. 649-0016
9. 786-0118
10. 786-0098
11. 720-0210A
12. 712-3008
13. 747-0902
14. 747-0901
15. 714-3021
16. 712-0386A
17. 736-0317
18. 712-0375
19. 726-0330
20. 732-0493
21. 748-0375
22. 712-0379
23. 784-0191
24. 712-3004A
25. 784-0190
26. 710-0521
27. 710-0189
Ref.
Part Description No. Part No.
Tap Screw 1/4-14 x.625 28. 686-0048
Handle Cover w/o Throttle 29. 710-3097
Clutch Cable 30. 686-0071
Foam Grip 31. 712-0421
Clutch Control Assembly 32. 735-0127
End Plug 33. 736-0204
Hex Washer Screw 1/4-14 x.625 34. 714-0104
Handle Assembly 35. 786-0090
Return Bracket - LH 36. 710-3005
Return Bracket - RH 37. 736-0117
Knob 39. 710-3008
Jam Nut 3/8-16 40. 738-0849
Shift Control 41. 786-0113
Handle Adjustment Rod 42. 786-0085
Cotter Pin 43. 686-0044A
Slotted Hex Nut 5/8 44. 747-0432
Bell Washer.64 ID x 1.25 OD 45. 726-0106
Hex Lock Nut 3/8-16 46. 786-0076
Cable Clip 47. 786-0077
Torsion Spring 48. 710-0376
Handle Swing Link 49. 714-0147
Flange Lock Nut 3/8-24 50. 711-0415
Retainer Bracket 51. 686-0043A
Hex Flange Lock Nut 5/16-18 52. 710-3038
Handle Adjustment Crank 53. 712-0798
Hex Cap Screw 3/8-16 x 3.0 54. 736-0169
Hex Cap Screw 5/16-18 x 3.0 55. 786-0120
Part Description
Handle Pivot Bracket Assembly
Carriage Bolt 3/8-16 x 1.0
Handle Bracket Assembly
Wing Nut
Rubber Washer.33 ID x.87 OD
Flat Washer.344 ID x.62 OD
Cotter Pin
Side Shield
Hex Cap Screw 3/8-16 x 1.25
Flat Washer.375 ID x.620 OD
Hex Cap Screw 5/16-18 x.75
Hex Screw 5/16-18 x.75
Rear Tine Shield Flap
Tine Shield
End Cover Assembly
Rod
Cap Nut
Shield Bracket RH
Shield Bracket - LH
Hex Cap Screw 5/16-18 x 1.0
Cotter Pin
Clevis Pin
Shield Tine Bracket Assembly
Hex Cap Screw 5/16-18 x.875
Hex Nut 3/8-16
Lock Washer 3/8
Depth Stake
NOTE: For painted parts, please refer to the list of color codes below. Please add the applicable color code, wherever needed,
to the part number to order a replacement part. For instance, if a part numbered 700-xxxx is painted Oyster Gray, the part
number to order would be 700-xxxx-0662.
Black -- 0691 ; Black, Powder -- 0637; Blue, Midnight -- 0667; Charcoal -- 0483; Grey -- 0648;
Grey, Oyster -- 0662; Orange -- 0606; Red -- 0650; Red, MTD -- 0638; Silver -- 0629; Yellow -- 0674.
21
