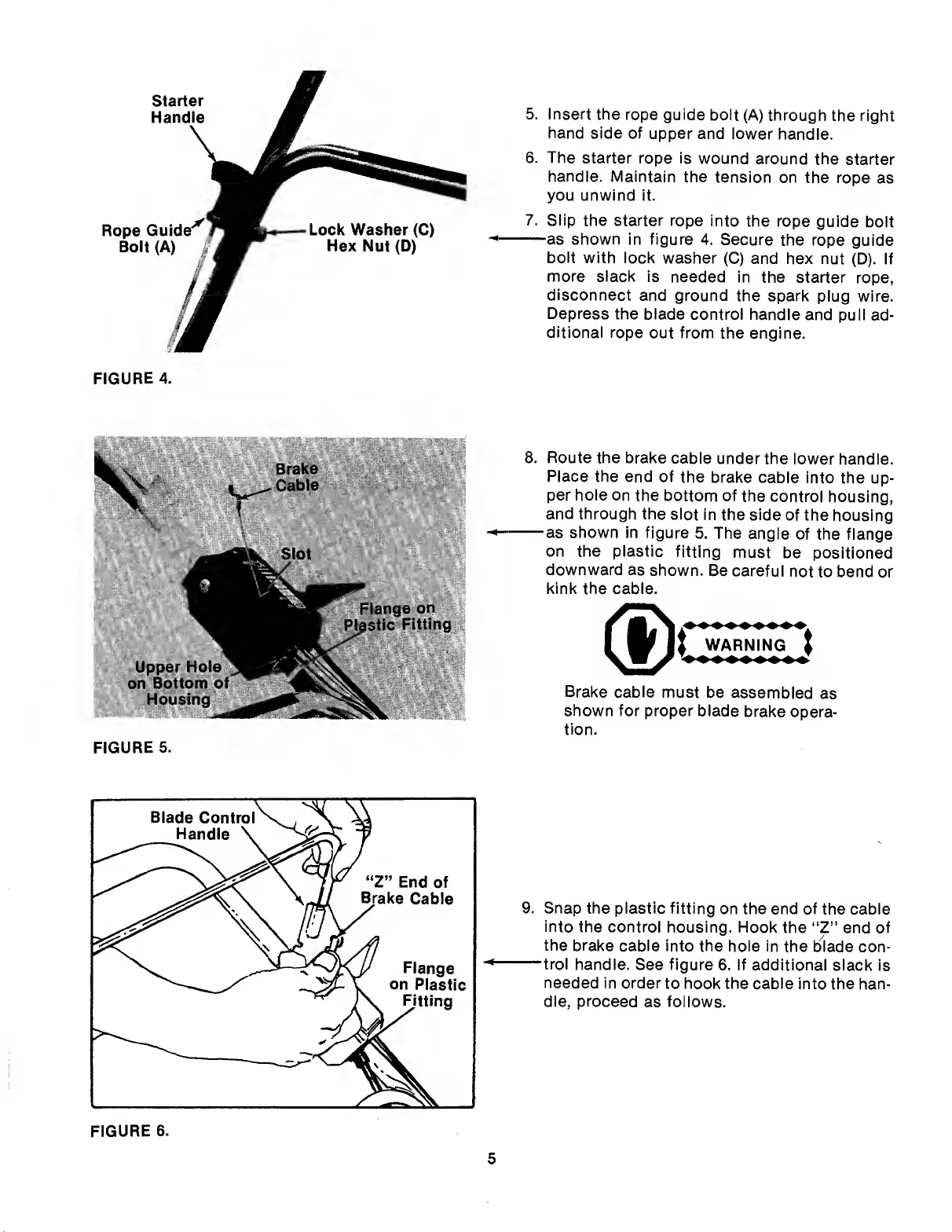

5.
Insert
the
rope
guide
bolt
(A)
through
the
right
hand
side
of
upper
and
lower
handle.
6.
The
starter
rope
is
wound
around
the
starter
handle.
Maintain
the
tension
on
the
rope
as
you
unwind
it.
7.
Slip
the
starter
rope
into
the
rope
guide
bolt
—as
shown
in
figure
4.
Secure
the
rope
guide
bolt
with
lock
washer
(C)
and
hex
nut
(D).
If
more
slack
is
needed
in
the
starter
rope,
disconnect
and
ground
the
spark
plug
wire.
Depress
the
blade
control
handle
and
pull
ad¬
ditional
rope
out
from
the
engine.
FIGURE
5.
8.
R
oute
the
brake
cable
under
the
lower
handle.
Place
the
end
of
the
brake
cable
into
the
up¬
per
hole
on
the
bottom
of
the
control
housing,
and
through
the
slot
in
the
side
of
the
housing
—
as
shown
in
figure
5.
The
angle
of
the
flange
on
the
plastic
fitting
must
be
positioned
downward
as
shown.
Be
careful
not
to
bend
or
kink
the
cable.
t
WARNING
Brake
cable
must
be
assembled
as
shown
for
proper
blade
brake
opera¬
tion.
9.
S
nap
the
plastic
fitting
on
the
end
of
the
cable
into
the
control
housing.
Hook
the
“Z”
end
of
the
brake
cable
into
the
hole
in
the
blade
con-
—trol
handle.
See
figure
6.
If
additional
slack
is
needed
in
order
to
hook
the
cable
into
the
han¬
dle,
proceed
as
follows.
