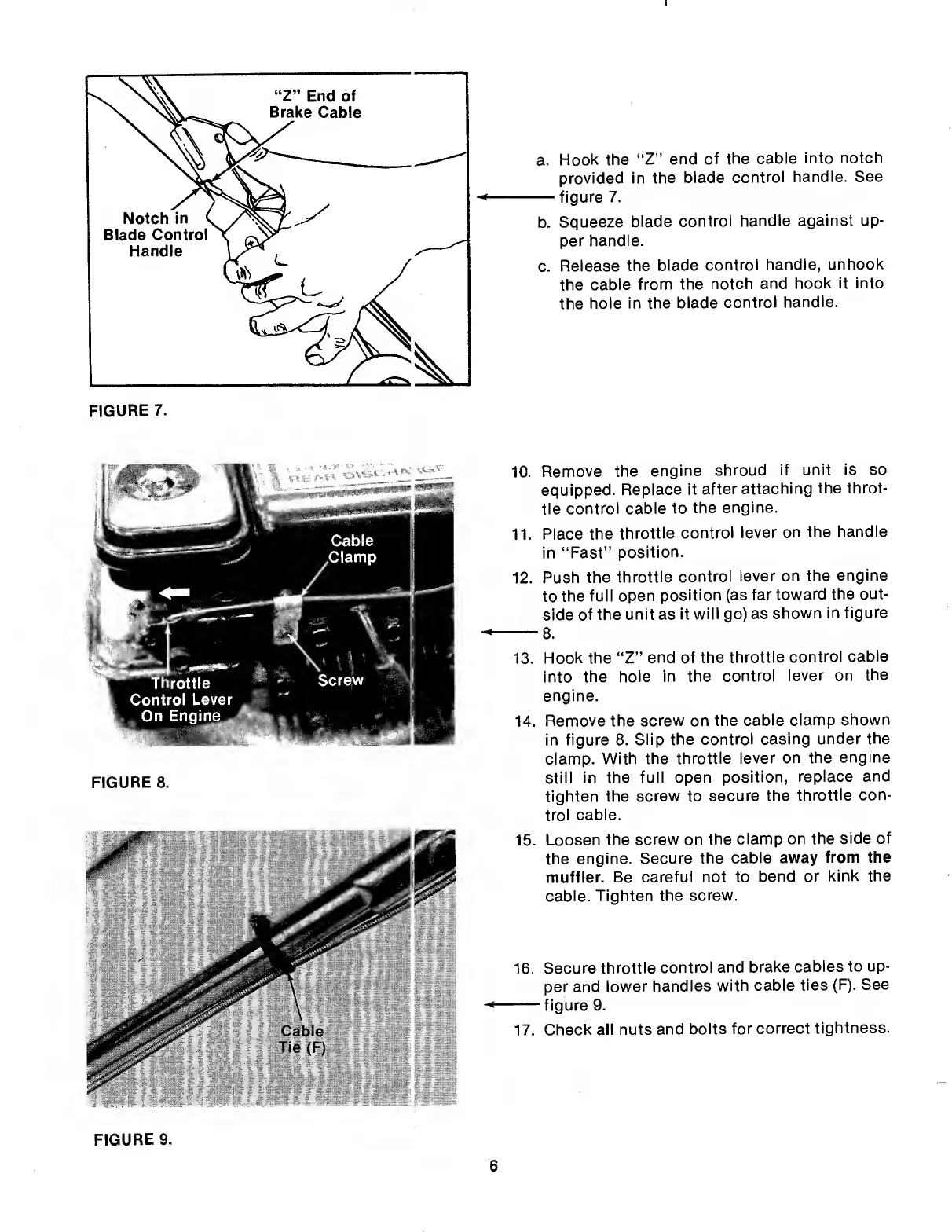

a. Hook the “Z” end of the cable into notch
provided in the blade control handle. See
— figure 7.
b. Squeeze blade control handle against up¬
per handle.
c. Release the blade control handle, unhook
the cable from the notch and hook it into
the hole in the blade control handle.
FIGURE 7.
FIGURE 8.
Cable
Tie (F)
FIGURE 9.
10. Remove the engine shroud if unit is so
equipped. Replace it after attaching the throt¬
tle control cable to the engine.
11. Place the throttle control lever on the handle
in “Fast” position.
12. Push the throttle control lever on the engine
to the full open position (as far toward the out¬
side of the unit as it will go) as shown in figure
- 8 .
13. Hook the “Z” end of the throttle control cable
into the hole in the control lever on the
engine.
14. Remove the screw on the cable clamp shown
in figure 8. Slip the control casing under the
clamp. With the throttle lever on the engine
still in the full open position, replace and
tighten the screw to secure the throttle con¬
trol cable.
15. Loosen the screw on the clamp on the side of
the engine. Secure the cable away from the
muffler. Be careful not to bend or kink the
cable. Tighten the screw.
16. Secure throttle control and brake cables to up¬
per and lower handles with cable ties (F). See
-figure 9.
17. Check all nuts and bolts for correct tightness.
