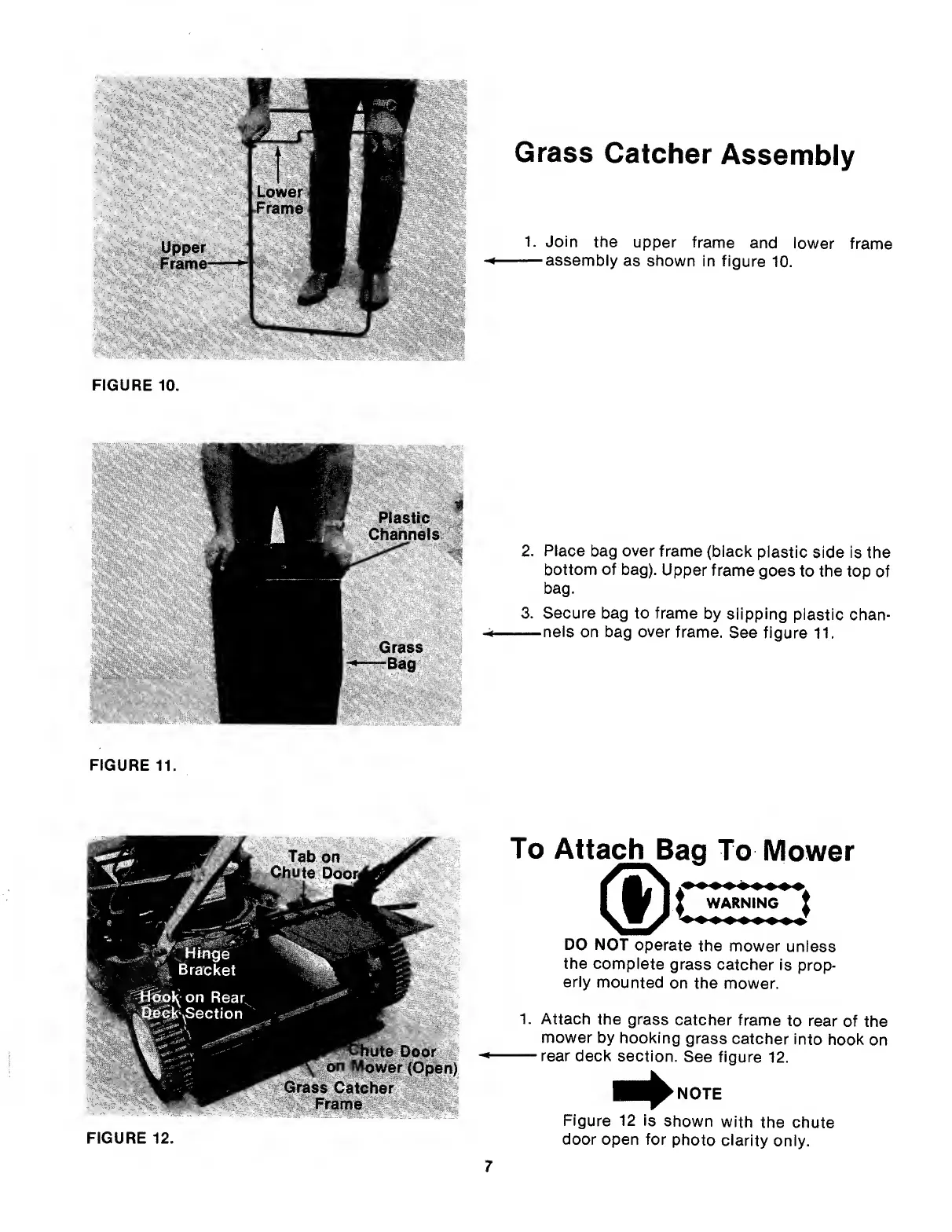

Grass Catcher Assembly
Lower
Frame
Upper
Frame-
1. J o i n the upper frame and lower frame
— assembly as shown in figure 10.
FIGURE 10.
2. Place bag over frame (black plastic side is the
bottom of bag). Upper frame goes to the top of
bag.
3. Secure bag to frame by slipping plastic chan-
—nels on bag over frame. See figure 11.
FIGURE 11.
FIGURE 12.
To
Attach Bag To Mower
t
WARNING
t
DO NOT operate the mower unless
the complete grass catcher is prop¬
erly mounted on the mower.
1. Attach the grass catcher frame to rear of the
mower by hooking grass catcher into hook on
— rear deck section. See figure 12.
Figure 12 is shown with the chute
door open for photo clarity only.
7
