Setup and
Adjustment
Always stop engine,
disconnect spark
plug, and ground
against engine before
performing adjust-
ments.
Always stop engine, disconnect
spark plug, and ground against
engine before performing
adjustments.
Cutting Height
Each wheel has a height adjustment lever to change the
cutting height of the mower.
1. Depress the lever towards the wheel and slide the
lever assembly to desired position to change the
cutting height, Figure 3-11.
IMPORTANT: All wheels must be positioned at the
same height.
IMPORTANT:
All wheels must be
placed in the same
position. For rough or
uneven lawns, move
the wheels to a higher
position to prevent
scalping of grass.
WARNING
Adjustments

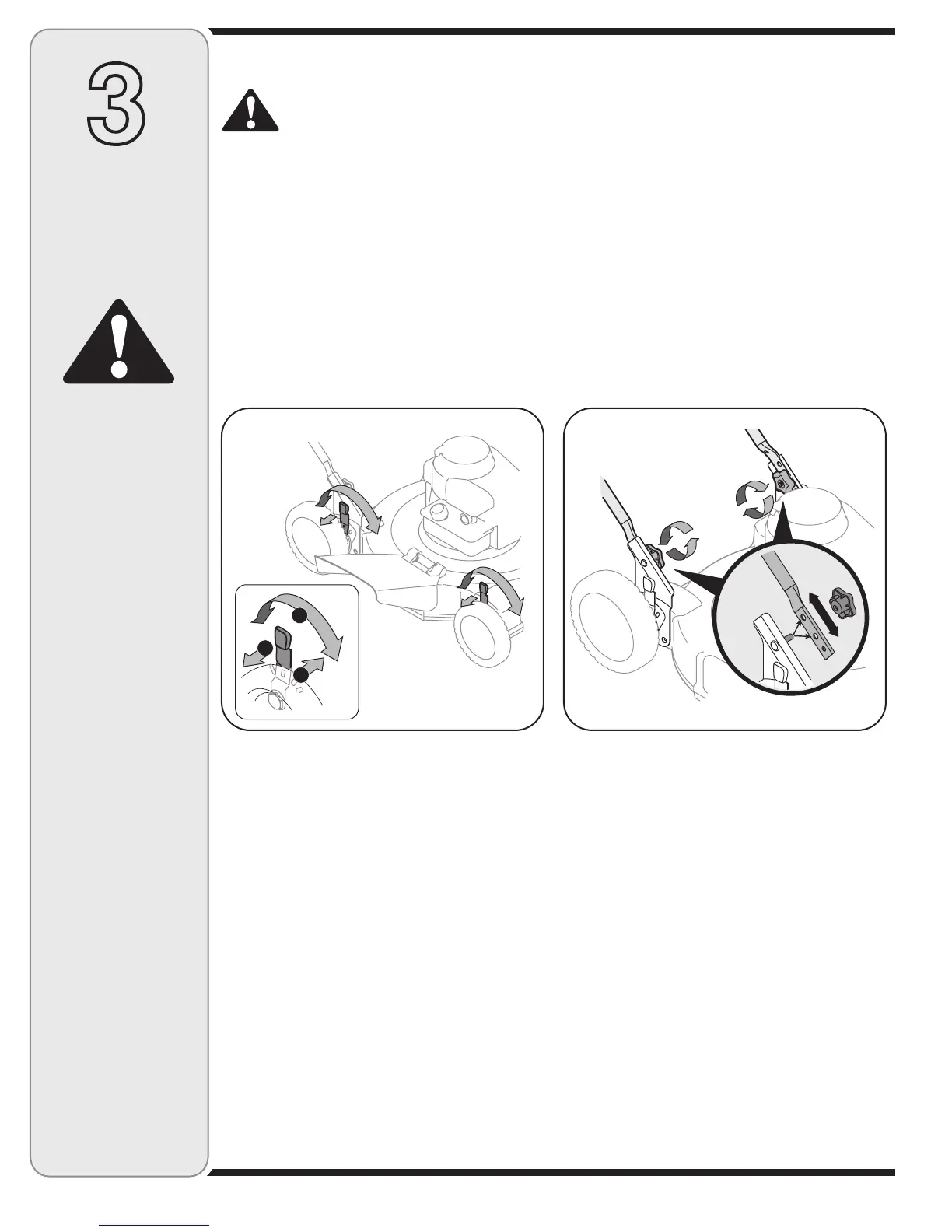

Figure 3-11: Adjusting the cutting height. Figure 3-12: Adjusting the handle height.
Handle Height
For convenience of operating, you may adjust the handle
height as follows:
1. Remove the starter rope from the rope guide.
2. Remove the star knobs shown in Figure 3-12 and
remove the lower handles.
3. Position each handle bracket stud into the appropriate
hole in the lower handle, Figure 3-12. Each end of the
lower handle must be placed in the same position.
4. Attach and tighten the star knobs.
5. Reinsert starter rope into rope guide. For instructions,
refer to the Setup section.
Remember to attach the spark plug wire after completing
the adjustments and before operating your mower.
