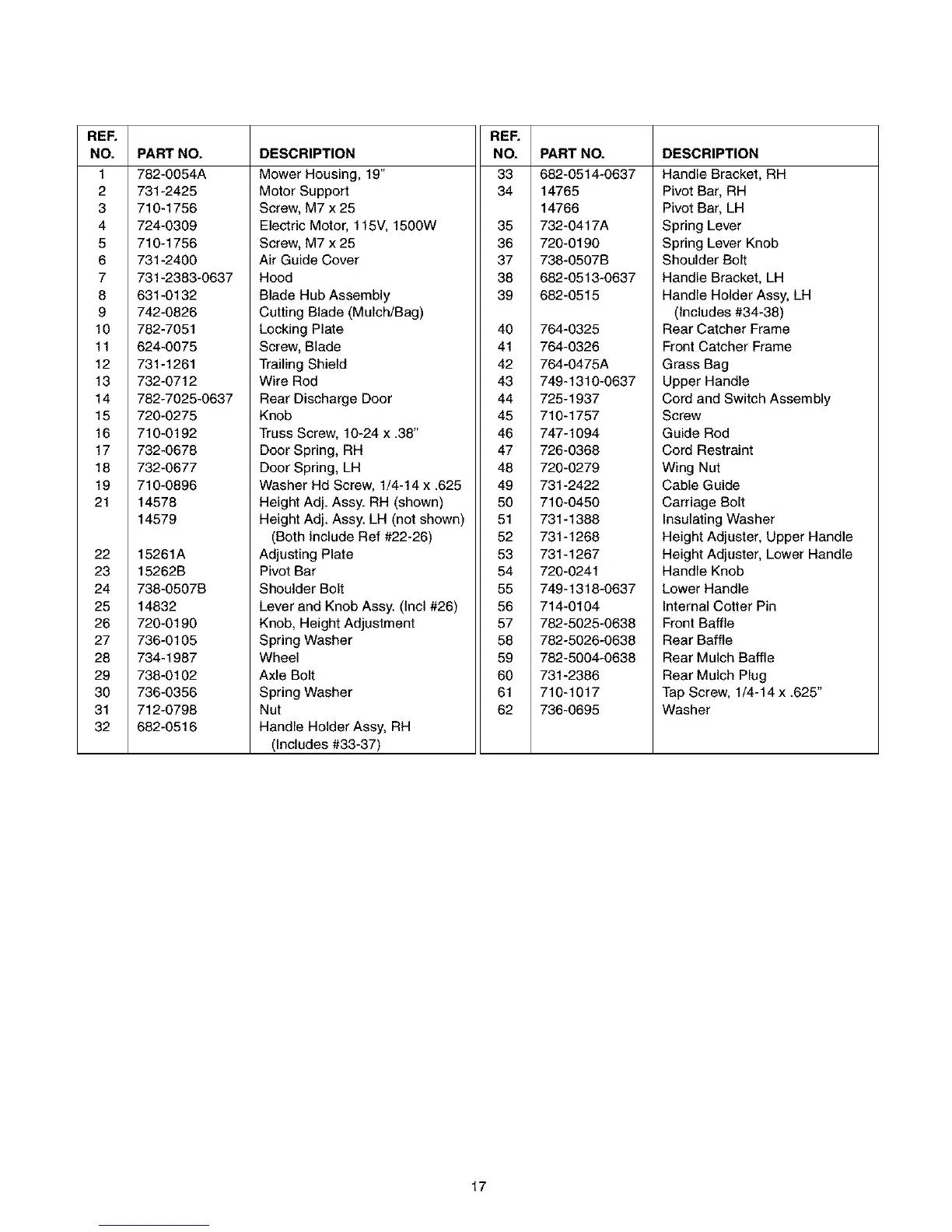

MTD 407 - Page 17

REE
NO. PART NO.
1 782-0054A
2 731-2425
3 710-1756
4 724-0309
5 710-1756
6 731-2400
7 731-2383-0637
8 631-0132
9 742-0826
10 782-7051
11 624-0075
12 731-1261
13 732-0712
14 782-7025-0637
15 720-0275
16 710-0192
17 732-0678
18 732-0677
19 710-0896
21 14578
14579
22 15261A
23 15262B
24 738-0507B
25 14832
26 720-0190
27 736-0105
28 734-1987
29 738-0102
30 736-0356
31 712-0798
32 682-0516
DESCRIPTION
Mower Housing, 19"
Motor Support
Screw, M7 x 25
Electric Motor, 115V, 1500W
Screw, M7 x 25
Air Guide Cover
Hood
Blade Hub Assembly
Cutting Blade (Mulch/Bag)
Locking Plate
Screw, Blade
Trailing Shield
Wire Rod
Rear Discharge Door
Knob
Truss Screw, 10-24 x .38"
Door Spring, RH
Door Spring, LH
Washer Hd Screw, 1/4-14 x .625
Height Adj. Assy. RH (shown)
Height Adj. Assy. LH (not shown)
(Both Include Ref #22-26)
Adjusting Plate
Pivot Bar
Shoulder Bolt
Lever and Knob Assy. (Incl #26)
Knob, Height Adjustment
Spring Washer
Wheel
Axle Bolt
Spring Washer
Nut
Handle Holder Assy, RH
(Includes #33-37)
REF.
NO. PART NO.
33 682-0514-0637
34 14765
14766
35 732-0417A
36 720-0190
37 738-0507B
38 682-0513-0637
39 682-0515
40 764-0325
41 764-0326
42 764-0475A
43 749-1310-0637
44 725-1937
45 710-1757
46 747-1094
47 726-0368
48 720-0279
49 731-2422
50 710-0450
51 731-1388
52 731-1268
53 731-1267
54 720-0241
55 749-1318-0637
56 714-0104
57 782-5025-0638
58 782-5026-0638
59 782-5004-0638
60 731-2386
61 710-1017
62 736-0695
DESCRIPTION
Handle Bracket, RH
Pivot Bar, RH
Pivot Bar, LH
Spring Lever
Spring Lever Knob
Shoulder Bolt
Handle Bracket, LH
Handle Holder Assy, LH
(Includes #34-38)
Rear Catcher Frame
Front Catcher Frame
Grass Bag
Upper Handle
Cord and Switch Assembly
Screw
Guide Rod
Cord Restraint
Wing Nut
Cable Guide
Carriage Bolt
Insulating Washer
Height Adjuster, Upper Handle
Height Adjuster, Lower Handle
Handle Knob
Lower Handle
Internal Cotter Pin
Front Baffle
Rear Baffle
Rear Mulch Baffle
Rear Mulch Plug
Tap Screw, 1/4-14 x .625"
Washer
