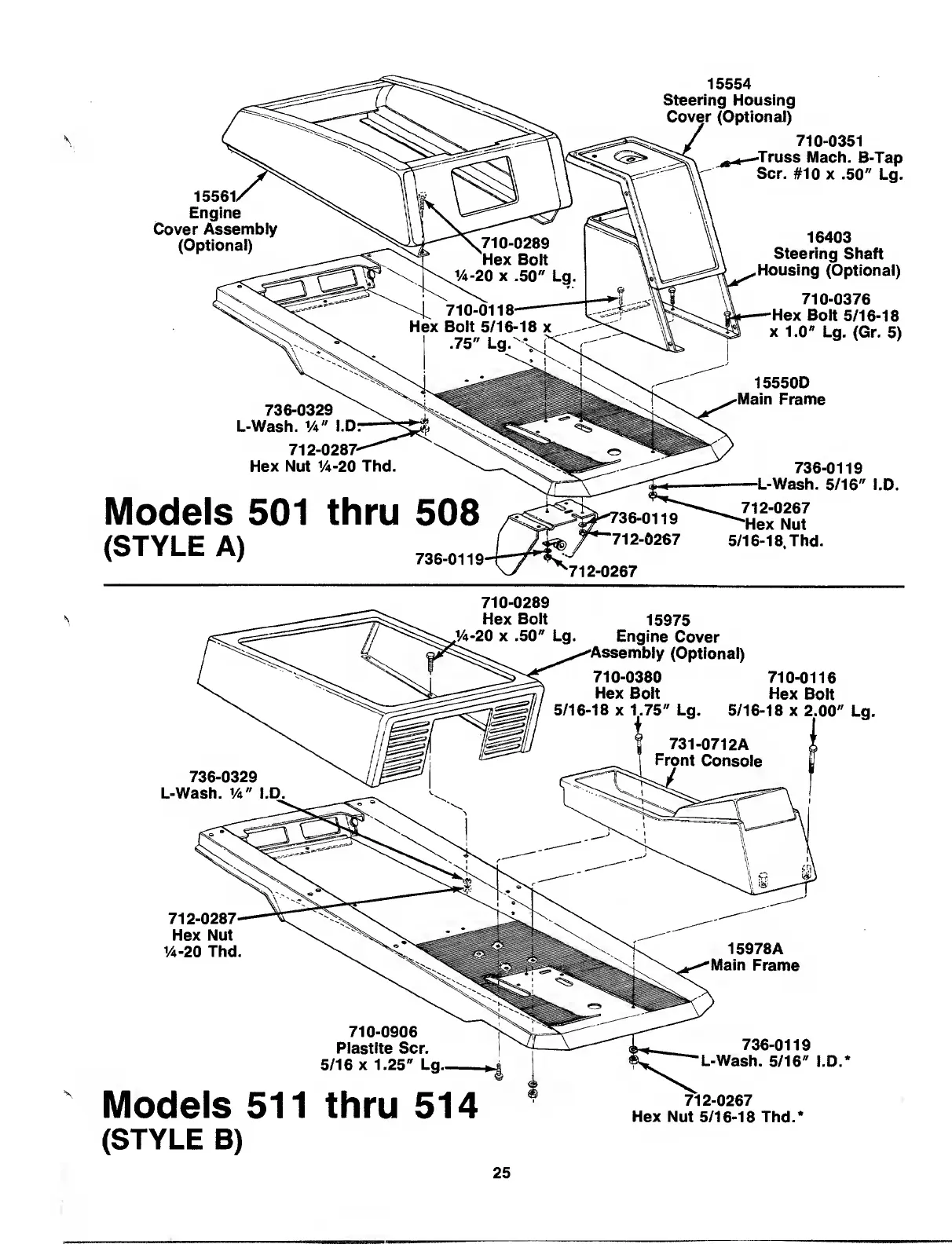

MTD 504 - Page 25

Steering Housing
Cover (Optional)
15561/
Engine
Cover Assembly
(Optional)
Ai^\710-0289
Hex Bolt
\T\V4-20 x .50" Lg.
-..L '710-0118--
Hex Bolt 5/16-18 x
| .75" Lg.-VT\
736-0329
L-Wash. 1 / 4 " I.O:—^
712-0287-^
Hex Nut 1/4-20 Thd.
Models 501 thru
(STYLE A)
736-0329
L-Wash. i/4" I.D.
508
736-0119-
*736-0119
■ 712-0267
'“712-0267
710-0289
Hex Bolt
1/4-20 x .50" Lg.
710-0351
-Truss Mach. B-Tap
Scr. #10 x .50" Lg.
16403
Steering Shaft
.Housing (Optional)
710-0376
—Hex Bolt 5/16-18
x 1.0" Lg. (Gr. 5)
15550D
-Main Frame
736-0119
-L-Wash. 5/16" I.D.
712-0267
Hex Nut
5/16-18. Thd.
15975
Engine Cover
'Assembly (Optional)
710-0380
Hex Bolt
5/16-18 x 1.75" Lg.
710-0116
Hex Bolt
5/16-18 x 2.00'
731-0712A
Front Console
712-0287-
Hex Nut
1/4-20 Thd.
15978A
'Main Frame
710-0906
Plastite Scr.
5/16 x 1.25" Lg..
Models 511 thru 514
(STYLE B)
_ 736-0119
L-Wash. 5/16" I.D.
712-0267
Hex Nut 5/16-18 Thd.*
