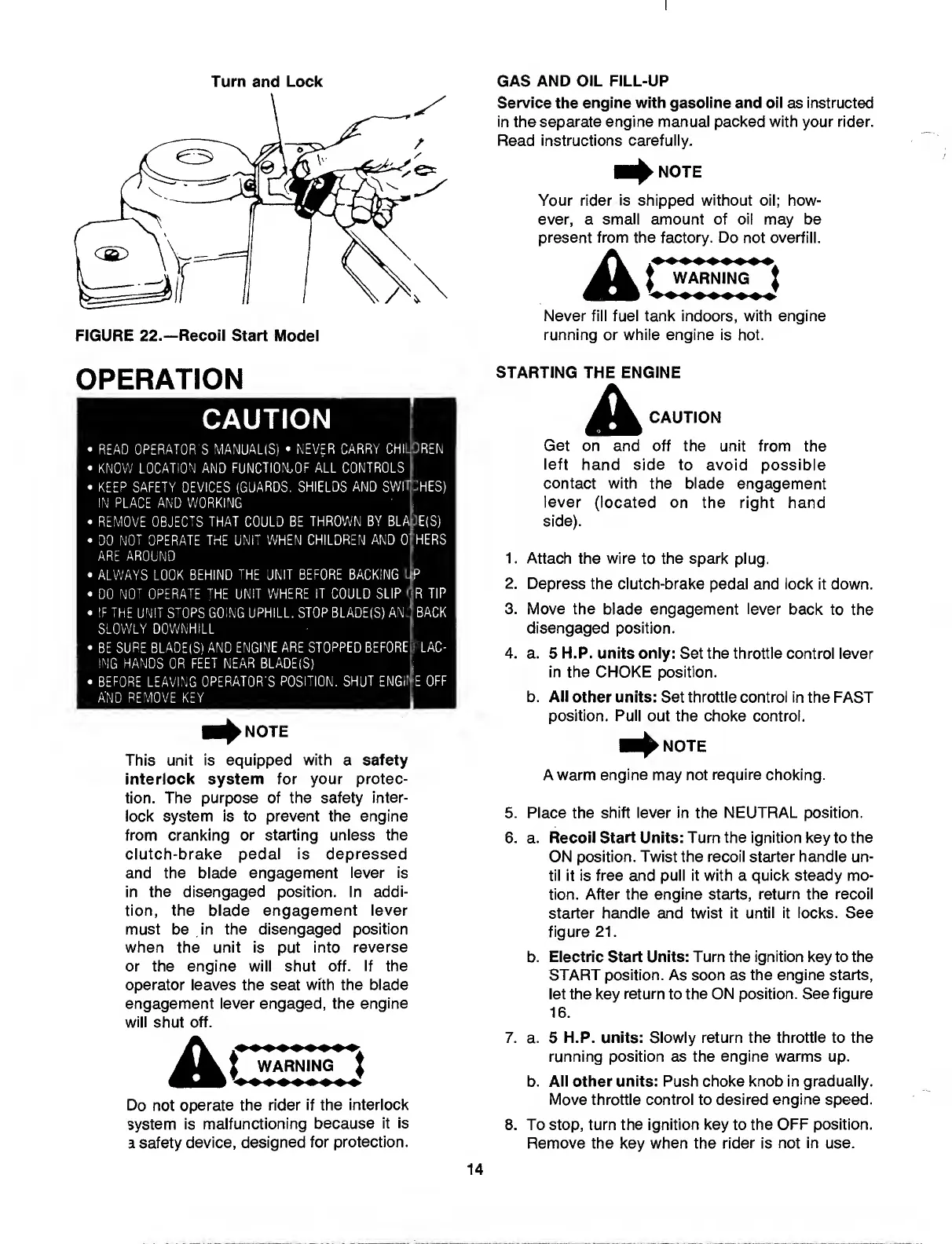

I
Turn
and
Lock
FIGURE
22.—Recoil
Start
Model
GAS
AND
OIL
FILL-UP
Service
the
engine
with
gasoline
and
oil
as
instructed
in
the
separate
engine
manual
packed
with
your
rider.
Read
instructions
carefully.
NOTE
Your
rider
is
shipped
without
oil;
how¬
ever,
a
small
amount
of
oil
may
be
present
from
the
factory.
Do
not
overfill.
AC
WARNING
J
Never
fill
fuel
tank
indoors,
with
engine
running
or
while
engine
is
hot.
OPERATION
CAUTION
READ
OPERATOR'S
MANUAL(S)
«
NEVER
CARRY
CHI
KNOW
LOCATION
AND
FUNCTIOMOF
ALL
CONTROLS
KEEP
SAFETY
DEVICES
(GUARDS.
SHIELDS
AND
SWITj
IN
PLACE
AND
WORKING
REMOVE
OBJECTS
THAT
COULD
BE
THROWN
BY
BLA
DO
NOT
OPERATE
THE
UNIT
WHEN
CHILDREN
AND
0
ARE
AROUND
ALWAYS
LOOK
BEHIND
THE
UNIT
BEFORE
BACKING
L|l
DO
NOT
OPERATE
THE
UNIT
WHERE
IT
COULD
SLIP
IF
THE
UNIT
STOPS
GOING
UPHILL.
STOP
BLADE(S)
AND
SLOWLY
DOWNHILL
BE
SURE
BLADE(S)
AND
ENGINE
ARE
STOPPED
BEFORE
HANDS
OR
FEET
NEAR
BLADE(S)
BEFORE
LEAVING
OPERATOR'S
POSITION.
SHUT
ENGIF
AND
REMOVE
KEY
NOTE
This
unit
is
equipped
with
a
safety
interlock
system
for
your
protec¬
tion.
The
purpose
of
the
safety
inter¬
lock
system
is
to
prevent
the
engine
from
cranking
or
starting
unless
the
clutch-brake
pedal
is
depressed
and
the
blade
engagement
lever
is
in
the
disengaged
position.
In
addi¬
tion,
the
blade
engagement
lever
must
be
in
the
disengaged
position
when
the
unit
is
put
into
reverse
or
the
engine
will
shut
off.
If
the
operator
leaves
the
seat
with
the
blade
engagement
lever
engaged,
the
engine
will
shut
off.
Do
not
operate
the
rider
if
the
interlock
system
is
malfunctioning
because
it
is
a
safety
device,
designed
for
protection.
STARTING
THE
ENGINE
CAUTION
Get
on
and
off
the
unit
from
the
left
hand
side
to
avoid
possible
contact
with
the
blade
engagement
lever
(located
on
the
right
hand
side).
1.
Attach
the
wire
to
the
spark
plug.
2.
Depress
the
clutch-brake
pedal
and
lock
it
down.
3.
Move
the
blade
engagement
lever
back
to
the
disengaged
position.
4.
a.
5
H.P.
units
only:
Set
the
throttle
control
lever
in
the
CHOKE
position.
b.
All
other
units:
Set
throttle
control
in
the
FAST
position.
Pull
out
the
choke
control.
NOTE
A
warm
engine
may
not
require
choking.
5.
Place
the
shift
lever
in
the
NEUTRAL
position.
6.
a.
Recoil
Start
Units:
Turn
the
ignition
key
to
the
ON
position.
Twist
the
recoil
starter
handle
un¬
til
it
is
free
and
pull
it
with
a
quick
steady
mo¬
tion.
After
the
engine
starts,
return
the
recoil
starter
handle
and
twist
it
until
it
locks.
See
figure
21.
b.
Electric
Start
Units:
Turn
the
ignition
key
to
the
START
position.
As
soon
as
the
engine
starts,
let
the
key
return
to
the
ON
position.
See
figure
16.
7.
a.
5
H.P.
units:
Slowly
return
the
throttle
to
the
running
position
as
the
engine
warms
up.
b.
All
other
units:
Push
choke
knob
in
gradually.
Move
throttle
control
to
desired
engine
speed.
8.
To
stop,
turn
the
ignition
key
to
the
OFF
position.
Remove
the
key
when
the
rider
is
not
in
use.
14
