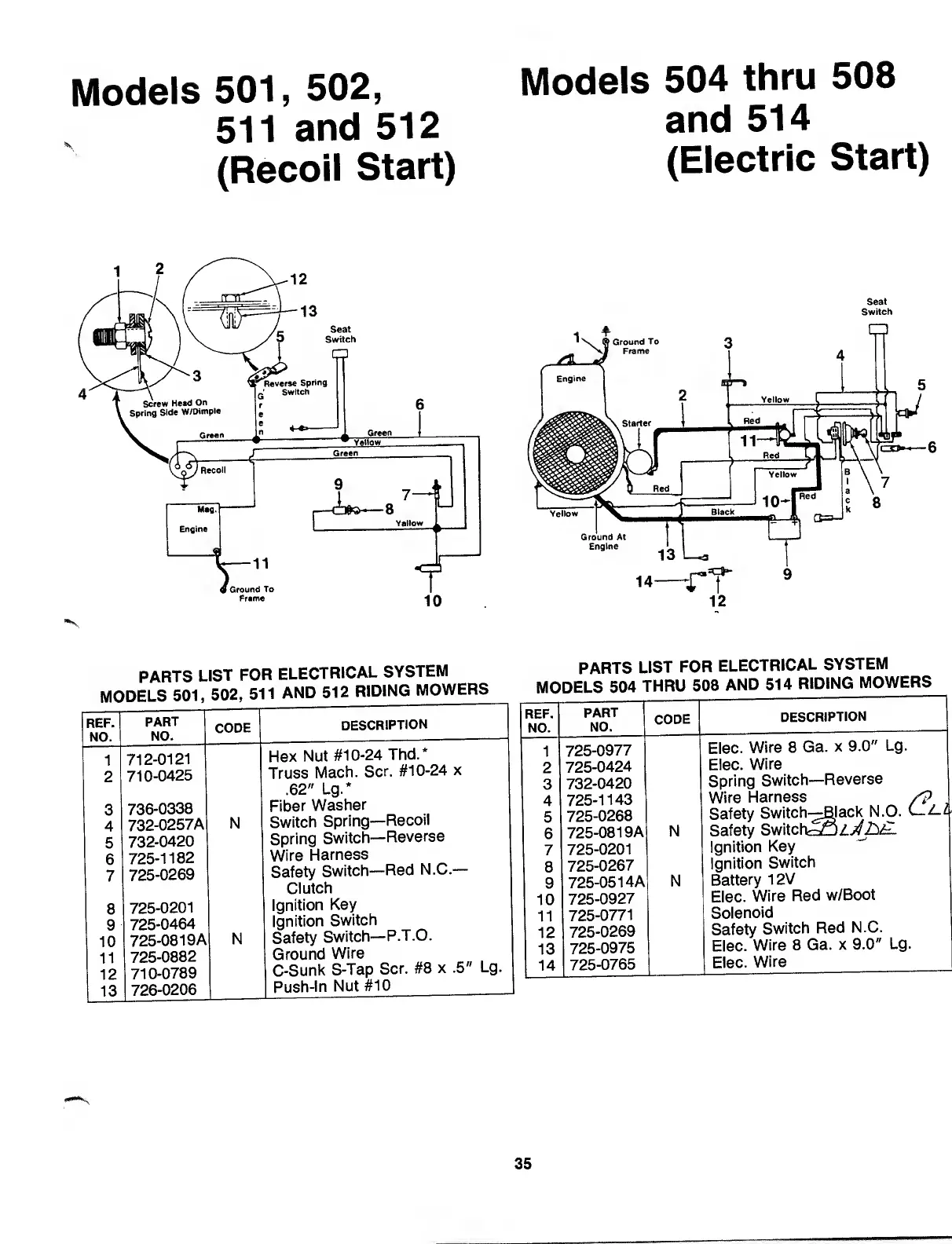

MTD 504 - Electrical System

Models 501, 502,
511 and 512
(Recoil Start)
-V
Models 504 thru 508
and 514
(Electric Start)
Seat
Switch
12
PARTS LIST FOR ELECTRICAL SYSTEM
MODELS 501, 502, 511 AND 512 RIDING MOWERS
REF.
NO.
PART
NO.
CODE
DESCRIPTION
1
712-0121
Hex Nut #10-24 Thd.*
2
710-0425
Truss Mach. Scr. #10-24 x
.62" Lg.*
3
736-0338
Fiber Washer
4
732-0257A
N
Switch Spring—Recoil
5
732-0420
Spring Switch—Reverse
6
725-1182
Wire Harness
7
725-0269
Safety Switch—Red N.C.—
Clutch
8
725-0201
Ignition Key
9
725-0464
Ignition Switch
10
725-0819A
N
Safety Switch—P.T.O.
11
725-0882
Ground Wire
12
710-0789
C-Sunk S-Tap Scr. #8 x .5" Lg.
13
726-0206
Push-In Nut #10
PARTS LIST FOR ELECTRICAL SYSTEM
MODELS 504 THRU 508 AND 514 RIDING MOWERS
REF.
NO.
PART
NO.
CODE
DESCRIPTION
1
725-0977
Elec. Wire 8 Ga. x 9.0" Lg.
2
725-0424
Elec. Wire
3
732-0420
Spring Switch—Reverse
4
725-1143
Wire Harness /?
5
725-0268
Safety Switch—jBlack N.O.
6
725-0819A
N
Safety SwitchcaOz^Ztel
7
725-0201
Ignition Key
8
725-0267
Ignition Switch
9
725-0514A
N
Battery 12V
10
725-0927
Elec. Wire Red w/Boot
11
725-0771
Solenoid
12
725-0269
Safety Switch Red N.C.
13
725-0975
Elec. Wire 8 Ga. x 9.0" Lg.
14
725-0765
Elec. Wire
35
