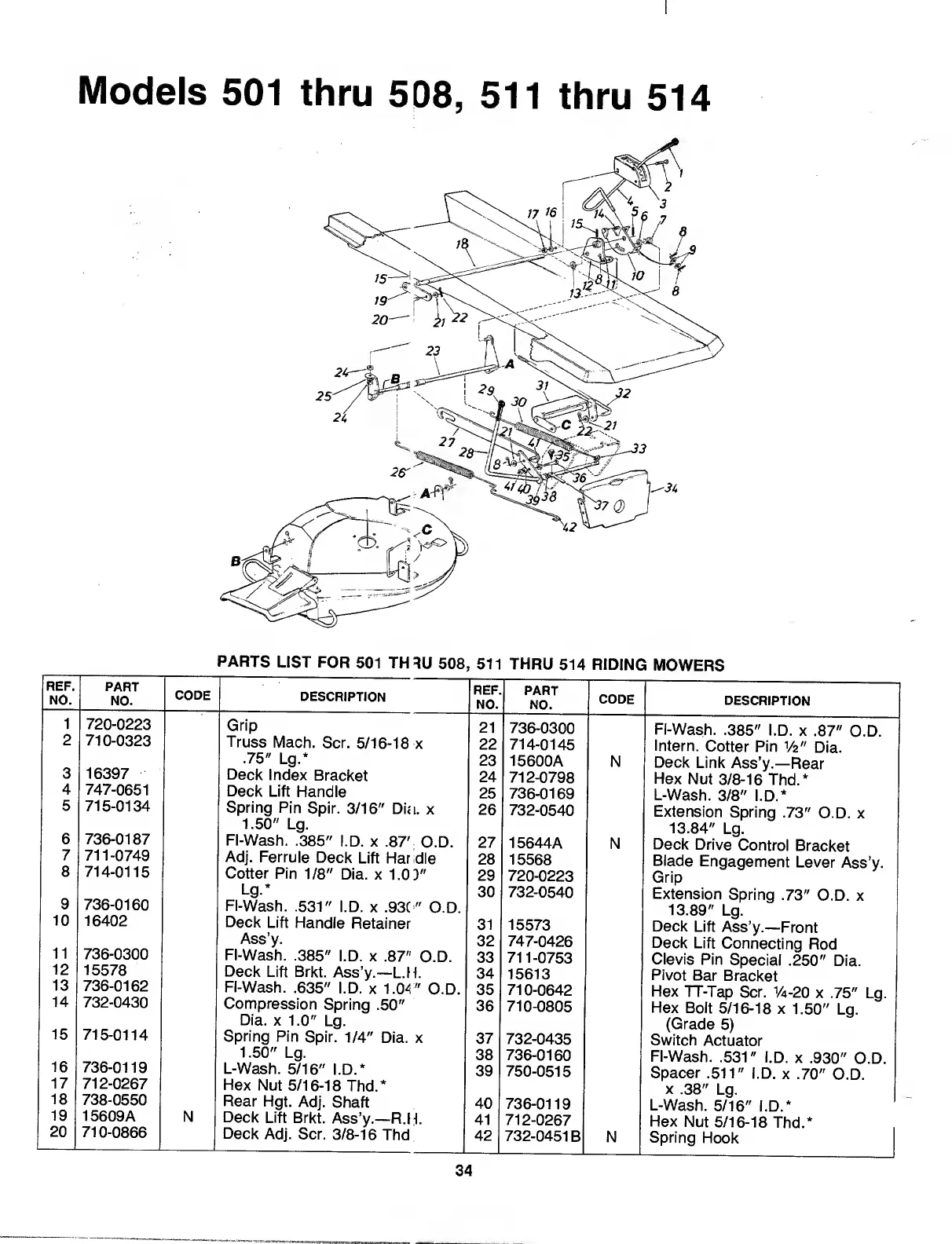

Models 501 thru 508, 511 thru 514
PARTS LIST FOR 501 THRU 508, 511 THRU 514 RIDING MOWERS
REF.
NO.
PART
NO.
CODE
DESCRIPTION
REF
NO.
PART
NO.
CODE
DESCRIPTION
1
720-0223
Grip
21
736-0300
FI-Wash. .385" I.D. x .87" O.D.
2
710-0323
Truss Mach. Scr. 5/16-18 x
22
714-0145
Intern. Cotter Pin Vz" Dia.
.75" Lg.*
23
15600A N
Deck Link Ass’y.—Rear
3 16397
Deck Index Bracket
24
712-0798
Hex Nut 3/8-16 Thd.*
4
747-0651
Deck Lift Handle
25
736-0169
L-Wash. 3/8" I.D.*
5
715-0134
Spring Pin Spir. 3/16" Din. x
26
732-0540
Extension Spring .73" O.D. x
1.50" Lg.
13.84" Lg.
6 736-0187
FI-Wash. .385" I.D. x .87' O.D.
27
15644A
N
Deck Drive Control Bracket
7
711-0749
Adj. Ferrule Deck Lift Har die
28
15568
Blade Engagement Lever Ass’y.
8
/14-0115
Cotter Pin 1/8" Dia. x 1.03"
29
720-0223
Grip
Lg*
30
732-0540
Extension Spring .73" O.D. x
9
736-0160
FI-Wash. .531" I.D. x .93C" O.D.
13.89" Lg.
10
16402
Deck Lift Handle Retainer
31
15573
Deck Lift Ass’y.—Front
Ass’y.
32
747-0426
Deck Lift Connecting Rod
11
736-0300
FI-Wash. .385" I.D. x .87" O.D.
33
711-0753
Clevis Pin Special .250" Dia.
12
15578
Deck Lift Brkt. Ass’y.—L.H.
34
15613
Pivot Bar Bracket
13
736-0162
FI-Wash. .635" I.D. x 1.04" O.D.
35
710-0642
Hex TT-Tap Scr. V4-20 x .75" Lq.
14
732-0430
Compression Spring .50"
36
710-0805
Hex Bolt 5/16-18 x 1.50" Lg.
Dia. x 1.0" Lg.
(Grade 5)
15
715-0114
Spring Pin Spir. 1/4" Dia. x
37
732-0435
Switch Actuator
1.50" Lg.
38
736-0160
FI-Wash. .531" I.D. x .930" O.D.
16
736-0119
L-Wash. 5/16" I.D.*
39
750-0515
Spacer .511" I.D. x .70" O.D.
17
712-0267
Hex Nut 5/16-18 Thd.*
x .38" Lg.
18
738-0550
Rear Hgt. Adj. Shaft
40
736-0119
L-Wash. 5/16" I.D.*
19
15609A
N
Deck Lift Brkt. Ass’y.—R.H.
41
712-0267
Hex Nut 5/16-18 Thd.*
20
710-0866
Deck Adj. Scr. 3/8-16 Thd
42
732-0451B
N
Spring Hook
34
