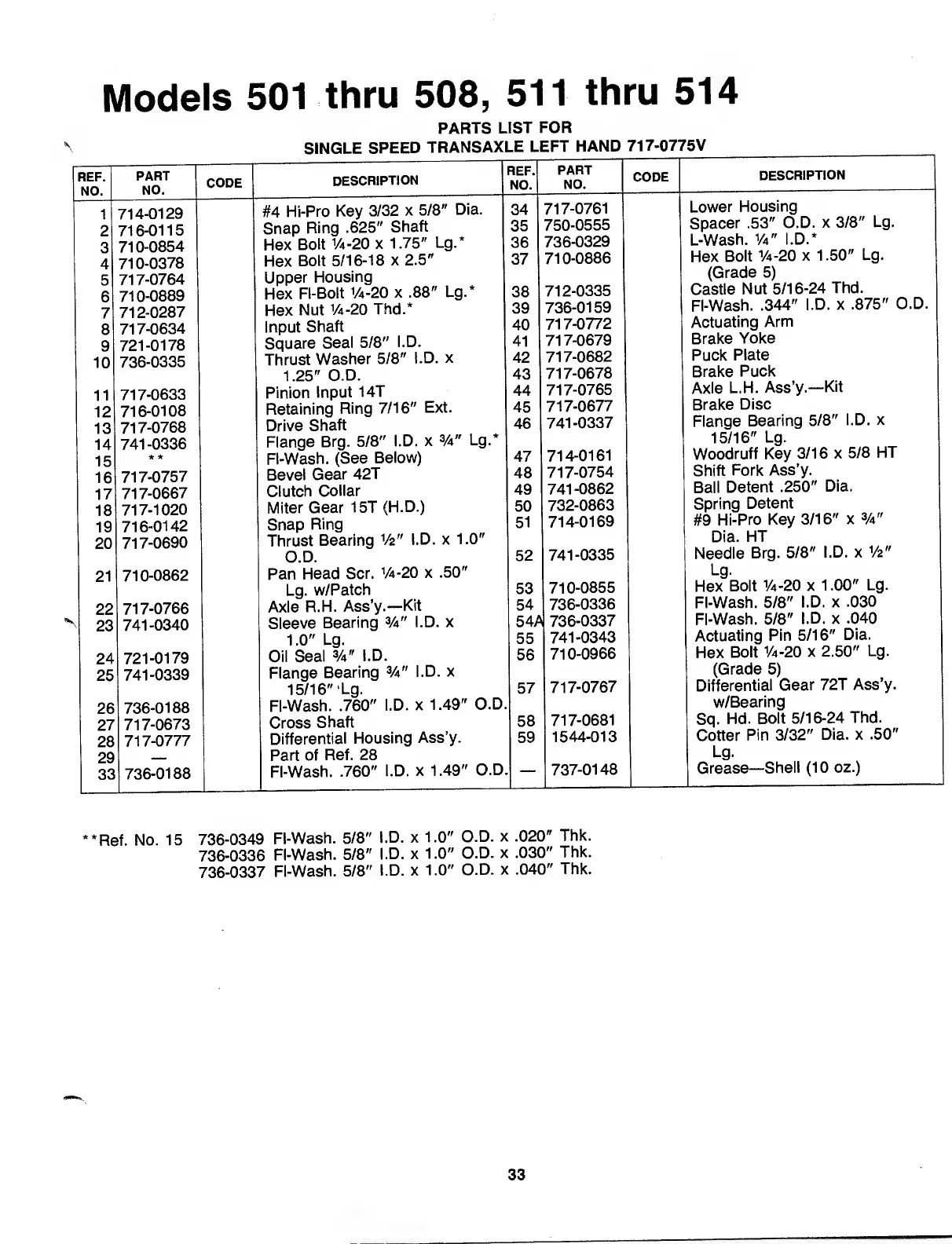

MTD 504 - Page 33

Models 501 thru 508, 511 thru 514
PARTS LIST FOR
V SINGLE SPEED TRANSAXLE LEFT HAND 717-0775V
REF.
NO.
PART
NO.
CODE
DESCRIPTION
REF.
NO.
PART
NO.
CODE
DESCRIPTION
1
714-0129
#4 Hi-Pro Key 3/32 x 5/8" Dia.
34
717-0761
Lower Housing
2 716-0115
Snap Ring .625" Shaft
35
750-0555
Spacer .53" O.D. x 3/8" Lg.
3
710-0854
Hex Bolt V4-20 x 1.75" Lg.*
36
736-0329
L-Wash. 14" I.D.*
4
710-0378
Hex Bolt 5/16-18 x 2.5"
37
710-0886
Hex Bolt 1/4-20 x 1.50" Lg.
5
717-0764
Upper Housing
(Grade 5)
6
710-0889
Hex Fl-Bolt 1/4-20 x .88" Lg.‘
38
712-0335
Castle Nut 5/16-24 Thd.
7
712-0287
Hex Nut V4-20 Thd.*
39
736-0159
FI-Wash. .344" I.D. x .875" O.D.
8
717-0634
Input Shaft
40
717-0772
Actuating Arm
9
721-0178
Square Seal 5/8" I.D.
41
717-0679
Brake Yoke
10
736-0335
Thrust Washer 5/8" I.D. x
42
717-0682
Puck Plate
1.25" O.D.
43
717-0678
Brake Puck
11
717-0633
Pinion Input 14T
44
717-0765
Axle L.H. Ass’y.—Kit
12
716-0108
Retaining Ring 7/16" Ext.
45
717-0677
Brake Disc
13
717-0768
Drive Shaft
46
741-0337
Flange Bearing 5/8" I.D. x
14
741-0336
Flange Brg. 5/8" I.D. x 3/4" Lg.*
15/16" Lg.
15
* *
FI-Wash. (See Below)
47
714-0161
Woodruff Key 3/16 x 5/8 HT
16
717-0757
Bevel Gear 42T
48
717-0754
Shift Fork Ass’y.
17
717-0667
Clutch Collar
49
741-0862
Ball Detent .250" Dia.
18
717-1020
Miter Gear 15T (H.D.)
50
732-0863
Spring Detent
19
716-0142
Snap Ring
51
714-0169
#9 Hi-Pro Key 3/16" x %"
20
717-0690
Thrust Bearing Vz" I.D. x 1.0"
Dia. HT
O.D.
52
741-0335
Needle Brg. 5/8" I.D. x Vz"
21
710-0862
Pan Head Scr. V4-20 x .50"
Lg-
Lg. w/Patch
53
710-0855
Hex Bolt 1/4-20 x 1.00" Lg.
22
717-0766
Axle R.H. Ass’y.—Kit
54
736-0336
FI-Wash. 5/8" I.D. x .030
23
741-0340
Sleeve Bearing %" I.D. x
54
736-0337
FI-Wash. 5/8" I.D. x .040
1 . 0" Lg.
55
741-0343
Actuating Pin 5/16" Dia.
24
721-0179
Oil Seal 3/ 4 " I.D.
56
710-0966
Hex Bolt 1/4-20 x 2.50" Lg.
25
741-0339
Flange Bearing %" I.D. x
(Grade 5)
15/16" Lg.
57
717-0767
Differential Gear 72T Ass y.
26
736-0188
FI-Wash. .760" I.D. x 1.49" O.D
w/Bearing
27
717-0673
Cross Shaft
58
717-0681
Sq. Hd. Bolt 5/16-24 Thd.
28
717-0777
Differential Housing Ass’y-
59
1544-013
Cotter Pin 3/32" Dia. x .50"
29
..
Part of Ref. 28
Lg.
33
736-0188
FI-Wash. .760" I.D. x 1.49" O.D
—
737-0148
Grease—Shell (10 oz.)
* * Ref. No. 15 736-0349 FI-Wash. 5/8" I.D. x 1.0" O.D. x .020" Thk.
736-0336 FI-Wash. 5/8" I.D. x 1.0" O.D. x .030" Thk.
736-0337 FI-Wash. 5/8" I.D. x 1.0" O.D. x .040" Thk.
