MTD 504 - Page 27

Models 501 thru 508, 511 thru 514

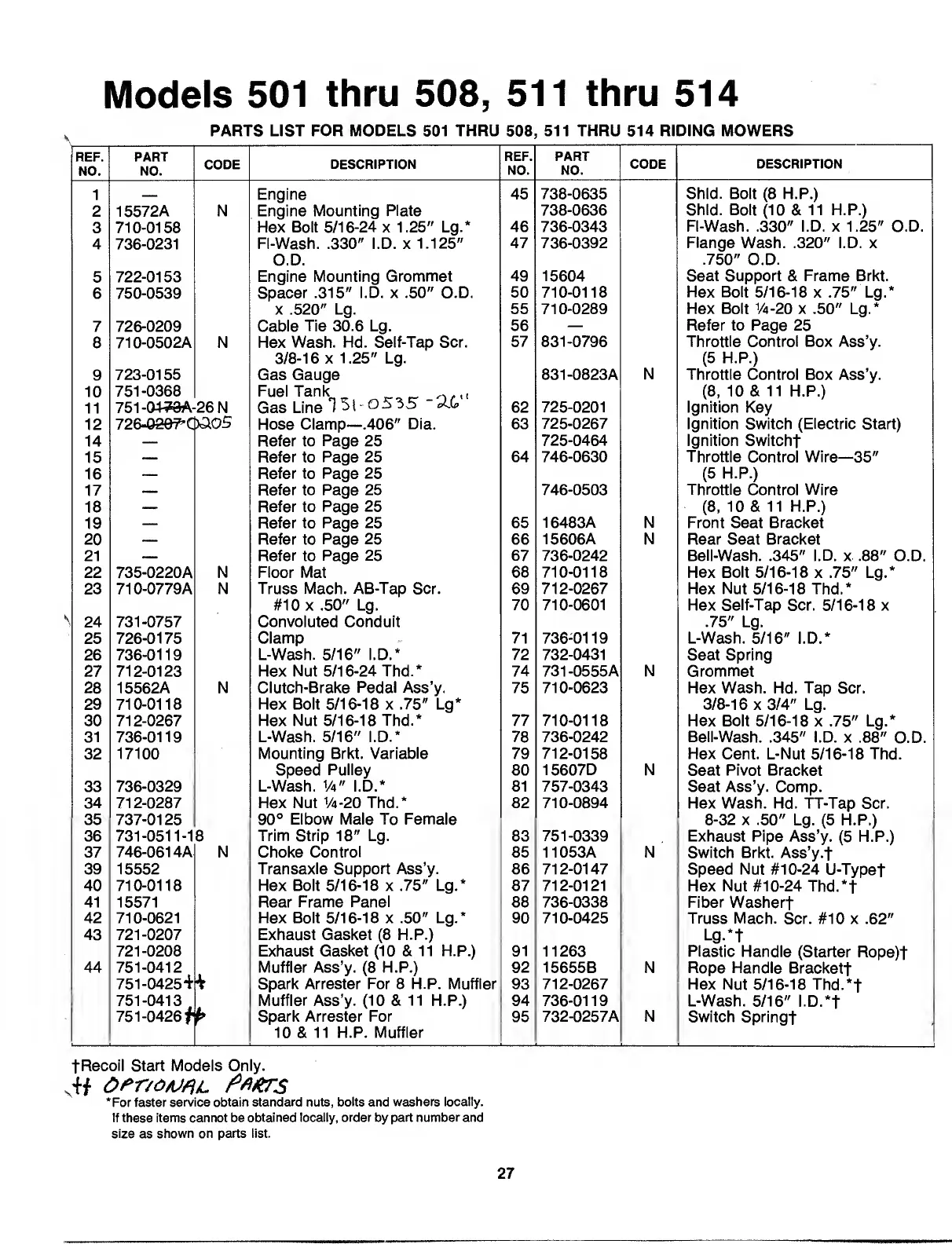

PARTS LIST FOR MODELS 501 THRU 508, 511 THRU 514 RIDING MOWERS
REF.
NO.
PART
NO.
CODE
DESCRIPTION
REF.
NO.
PART
NO.
CODE
DESCRIPTION
1
_
Engine
45 738-0635
Shld. Bolt (8 H.P.)
2
15572A N Engine Mounting Plate
738-0636 Shld. Bolt (10 & 11 H.P.)
3 710-0158
Hex Bolt 5/16-24 x 1.25" Lg.*
46 736-0343
FI-Wash. .330" I.D. x 1.25" O.D.
4 736-0231
FI-Wash. .330" I.D. x 1.125"
47 736-0392 Flange Wash. .320" I.D. x
O.D.
.750" O.D.
5
722-0153
Engine Mounting Grommet
49 15604
Seat Support & Frame Brkt.
6 750-0539
Spacer .315" I.D. x .50" O.D.
50 710-0118 Hex Bolt 5/16-18 x .75" Lg.*
x .520" Lg.
55 710-0289 Hex Bolt 1/4-20 x .50" Lg.*
7 726-0209
Cable Tie 30.6 Lg.
56
—
Refer to Page 25
8
710-0502A N
Hex Wash. Hd. Self-Tap Scr.
57
831-0796 Throttle Control Box Ass’y.
3/8-16 x 1.25" Lg.
(5 H.P.)
9
723-0155
Gas Gauge
831-0823A
N
Throttle Control Box Ass’y.
10
751-0368
Fuel Tank _
(8, 10 & 11 H.P.)
11
751-O4-5*0A-26 N
Gas Line ‘1 'M- oi sb £L>
62
725-0201 Ignition Key
12
726-©2e7'C
&OS
Hose Clamp—.406" Dia.
63
725-0267
Ignition Switch (Electric Start)
14
—
Refer to Page 25
725-0464
Ignition Switch!
15
—
Refer to Page 25
64 746-0630
Throttle Control Wire—35"
16
—
Refer to Page 25
(5 H.P.)
17
—
Refer to Page 25 746-0503 Throttle Control Wire
18
—
Refer to Page 25 (8, 10 & 11 H.P.)
19
—
Refer to Page 25
65
16483A N
Front Seat Bracket
20
—
Refer to Page 25 66
15606A N
Rear Seat Bracket
21
—
Refer to Page 25
67 736-0242 Bell-Wash. .345" I.D. x .88" O.D.
22 735-0220A
N Floor Mat 68 710-0118 Hex Bolt 5/16-18 x .75" Lg.*
23
710-0779A N Truss Mach. AB-Tap Scr. 69
712-0267
Hex Nut 5/16-18 Thd.*
#10 x .50" Lg.
70
710-0601 Hex Self-Tap Scr. 5/16-18 x
24
731-0757 Convoluted Conduit ■ 75" Lg.
25
726-0175
Clamp
71 736-0119 L-Wash. 5/16" I.D.*
26 736-0119
L-Wash. 5/16" I.D.*
72 732-0431 Seat Spring
27
712-0123
Hex Nut 5/16-24 Thd.* 74 731-0555A N
Grommet
28
15562A N
Clutch-Brake Pedal Ass’y. 75
710-0623
Hex Wash. Hd. Tap Scr.
29
710-0118 Hex Bolt 5/16-18 x .75" Lg*
3/8-16 x 3/4" Lg.
30 712-0267 Hex Nut 5/16-18 Thd.* 77 710-0118
Hex Bolt 5/16-18 x .75" Lg.*
31 736-0119
L-Wash. 5/16" I.D.*
78
736-0242
Bell-Wash. .345" I.D. x .88" O.D.
32
17100 Mounting Brkt. Variable 79
712-0158 Hex Cent. L-Nut 5/16-18 Thd.
Speed Pulley 80
15607D N
Seat Pivot Bracket
33
736-0329
L-Wash. V4" I.D.* 81
757-0343 Seat Ass’y. Comp.
34
712-0287
Hex Nut 1/4-20 Thd.* 82 710-0894
Hex Wash. Hd. TT-Tap Scr.
35 737-0125
90° Elbow Male To Female
8-32 x .50" Lg. (5 H.P.)
36
731-0511-18 Trim Strip 18" Lg.
83 751-0339
Exhaust Pipe Ass’y. (5 H.P.)
37
746-0614A
N
Choke Control 85 11053A N
Switch Brkt. Ass’y.t
39 15552
Transaxle Support Ass’y-
86 712-0147
Speed Nut #10-24 U-Typef
40
710-0118 Hex Bolt 5/16-18 x .75" Lg.* 87 712-0121
Hex Nut #10-24 Thd.*t
41 15571 Rear Frame Panel 88 736-0338 Fiber Washer!
42 710-0621 Hex Bolt 5/16-18 x .50" Lg.*
90 710-0425
Truss Mach. Scr. #10 x .62"
43
721-0207
Exhaust Gasket (8 H.P.)
Lg.*t
721-0208 Exhaust Gasket (10 & 11 H.P.) 91
11263
Plastic Handle (Starter Rope)f
44
751-0412
Muffler Ass’y. (8 H.P.) 92 15655B N
Rope Handle Brackett
751-04254 4
Spark Arrester For 8 H.P. Muffler
93
712-0267
Hex Nut 5/16-18 Thd.*t
751-0413 Muffler Ass’y. (10 & 11 H.P.) 94
736-0119
L-Wash. 5/16" I.D.*f
751-0426f
►
Spark Arrester For
95
732-0257A N
Switch Spring!
10 & 11 H.P. Muffler
