Models 501 thru 508, 511 thru 514

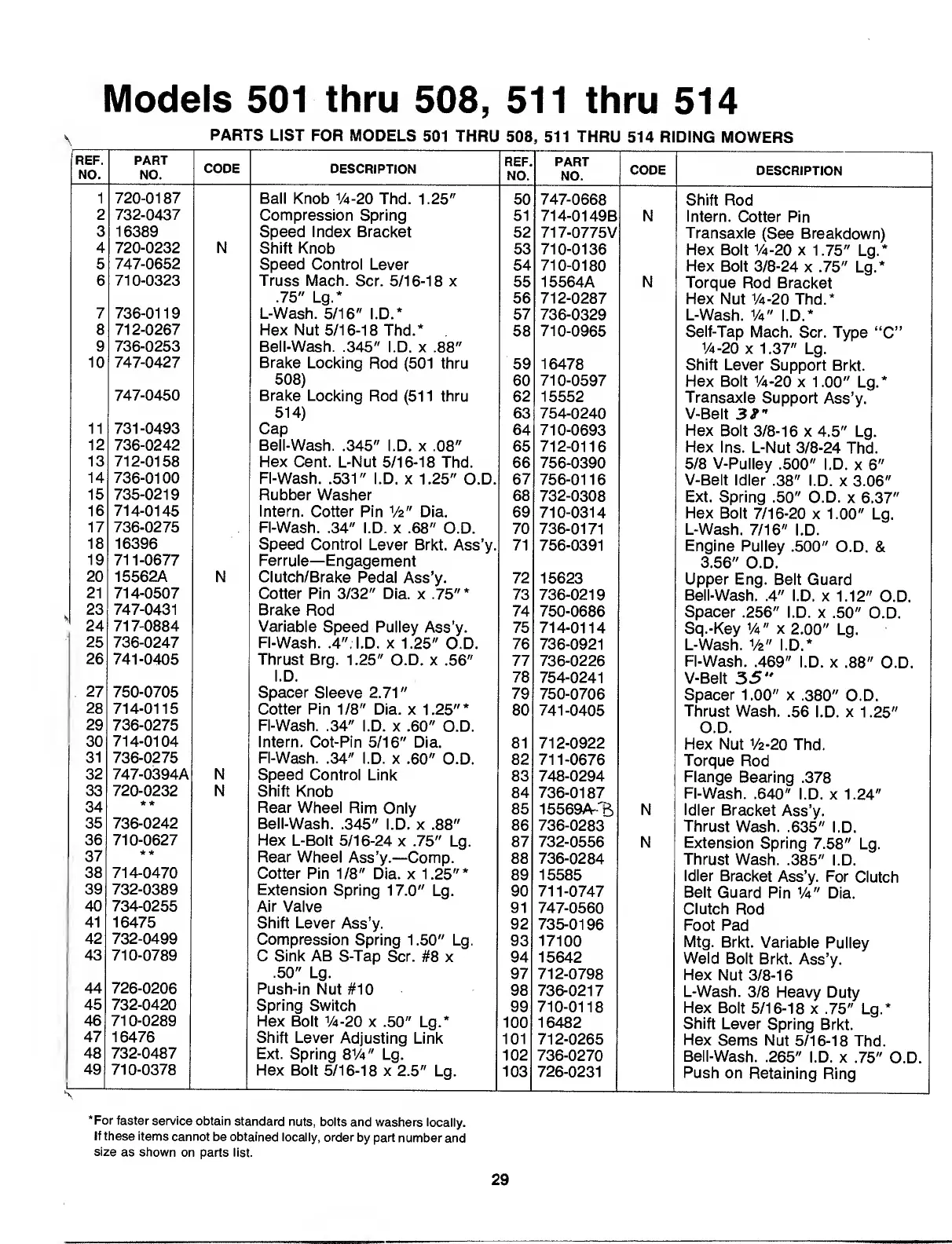

PARTS LIST FOR MODELS 501 THRU 508, 511 THRU 514 RIDING MOWERS
REF.
NO.
PART
NO.
CODE
DESCRIPTION
REF.
NO.
PART
NO.
CODE
DESCRIPTION
1 720-0187
Ball Knob y 4 - 20 Thd. 1.25"
50
747-0668
Shift Rod
2 732-0437
Compression Spring
51
714-0149B N
Intern. Cotter Pin
3
16389
Speed Index Bracket
52
717-0775V
Transaxle (See Breakdown)
4
720-0232 N
Shift Knob
53
710-0136
Hex Bolt V 4 - 20 x 1.75" Lg.*
5 747-0652
Speed Control Lever
54
710-0180
Hex Bolt 3/8-24 x .75" Lg.*
6 710-0323
Truss Mach. Scr. 5/16-18 x
55 15564A N
Torque Rod Bracket
.75" Lg.*
56
712-0287
Hex Nut y 4 - 20 Thd.*
7
736-0119
L-Wash. 5/16" I.D.*
57
736-0329
L-Wash. y 4 " I.D.*
8 712-0267
Hex Nut 5/16-18 Thd.*
58
710-0965
Self-Tap Mach. Scr. Type “C”
9 736-0253
Bell-Wash. .345" I.D. x .88"
1/4-20 x 1.37" Lg.
10 747-0427
Brake Locking Rod (501 thru
59
16478
Shift Lever Support Brkt.
508)
60 710-0597
Hex Bolt 1/4-20 x 1.00" Lg.*
747-0450
Brake Locking Rod (511 thru
62
15552
Transaxle Support Ass’y."
514)
63
754-0240
V-Belt 3?''
11
731-0493
Cap
64
710-0693
Hex Bolt 3/8-16 x 4.5" Lg.
12 736-0242
Bell-Wash. .345" I.D. x .08"
65
712-0116
Hex Ins. L-Nut 3/8-24 Thd.
13
712-0158
Hex Cent. L-Nut 5/16-18 Thd.
66
756-0390
5/8 V-Pulley .500" I.D. x 6"
14
736-0100
FI-Wash. .531" I.D. x 1.25" O.D.
67
756-0116
V-Belt Idler .38" I.D. x 3.06"
15
735-0219
Rubber Washer
68
732-0308
Ext. Spring .50" O.D. x 6.37"
16
714-0145
Intern. Cotter Pin V 2 " Dia.
69
710-0314
Hex Bolt 7/16-20 x 1.00" Lg.
17
736-0275
FI-Wash. .34" I.D. x .68" O.D.
70 736-0171
L-Wash. 7/16" I.D.
18
16396
Speed Control Lever Brkt. Ass’y. 71
756-0391
Engine Pulley .500" O.D. &
19 711-0677
Ferrule—Engagement
3.56" O.D.
20 15562A
N
Clutch/Brake Pedal Ass’y.
72
15623
Upper Eng. Belt Guard
21
714-0507
Cotter Pin 3/32" Dia. x .75"*
73 736-0219
Bell-Wash. .4" I.D. x 1.12" O.D.
23 747-0431
Brake Rod
74
750-0686
Spacer .256" I.D. x .50" O.D.
24 717-0884
Variable Speed Pulley Ass’y.
75 714-0114
Sq.-Key V 4 " x 2.00" Lg.
25
736-0247
FI-Wash. .4". I.D. x 1.25" O.D.
76
736-0921
L-Wash. 1 / 2 " I.D.*
26
741-0405
Thrust Brg. 1.25" O.D. x .56"
77 736-0226
FI-Wash. .469" I.D. x .88" O.D.
I.D.
78
754-0241
V-Belt 35"
27
750-0705
Spacer Sleeve 2.71"
79 750-0706
Spacer 1.00" x .380" O.D.
28
714-0115
Cotter Pin 1/8" Dia. x 1.25"*
80
741-0405
Thrust Wash. .56 I.D. x 1.25"
29
736-0275
FI-Wash. .34" I.D. x .60" O.D.
O.D.
30 714-0104
Intern. Cot-Pin 5/16" Dia.
81
712-0922
Hex Nut 1 / 2-20 Thd.
31
736-0275
FI-Wash. .34" I.D. x .60" O.D.
82
711-0676
Torque Rod
32 747-0394A N
Speed Control Link
83 748-0294
Flange Bearing .378
33
720-0232
N
Shift Knob
84
736-0187
FI-Wash. .640" I.D. x 1.24"
34
•k ★
Rear Wheel Rim Only
85
15569A~'B
N
Idler Bracket Ass’y.
35
736-0242
Bell-Wash. .345" I.D. x .88"
86
736-0283
Thrust Wash. .635" I.D.
36
710-0627
Hex L-Bolt 5/16-24 x .75" Lg.
87
732-0556
N
Extension Spring 7.58" Lg.
37
* *
Rear Wheel Ass’y.—Comp.
88
736-0284
Thrust Wash. .385" I.D.
38
714-0470
Cotter Pin 1/8" Dia. x 1.25"*
89 15585
Idler Bracket Ass’y. For Clutch
39
732-0389
Extension Spring 17.0" Lg.
90
711-0747
Belt Guard Pin 1 / 4 " Dia.
40
734-0255
Air Valve
91
747-0560
Clutch Rod
41
16475
Shift Lever Ass’y.
92
735-0196
Foot Pad
42
732-0499
Compression Spring 1.50" Lg.
93
17100
Mtg. Brkt. Variable Pulley
43
710-0789
C Sink AB S-Tap Scr. #8 x
94
15642
Weld Bolt Brkt. Ass’y.
.50" Lg.
97
712-0798
Hex Nut 3/8-16
44
726-0206
Push-in Nut #10
98
736-0217
L-Wash. 3/8 Heavy Duty
45
732-0420
Spring Switch
99
710-0118
Hex Bolt 5/16-18 x .75" Lg.*
46
710-0289
Hex Bolt 1/4-20 x .50" Lg.‘
100 16482
Shift Lever Spring Brkt.
47
16476
Shift Lever Adjusting Link
101
712-0265
Hex Sems Nut 5/16-18 Thd.
48 732-0487
Ext. Spring 8V 4 " Lg.
102
736-0270
Bell-Wash. .265" I.D. x .75" O.D.
49
710-0378
Hex Bolt 5/16-18 x 2.5" Lg.
103
726-0231
Push on Retaining Ring
For faster service obtain standard nuts, bolts and washers locally.
If these items cannot be obtained locally, order by part number and
size as shown on parts list.
