MTD 504 - Page 31

Models 501 thru 508, 511 thru 514

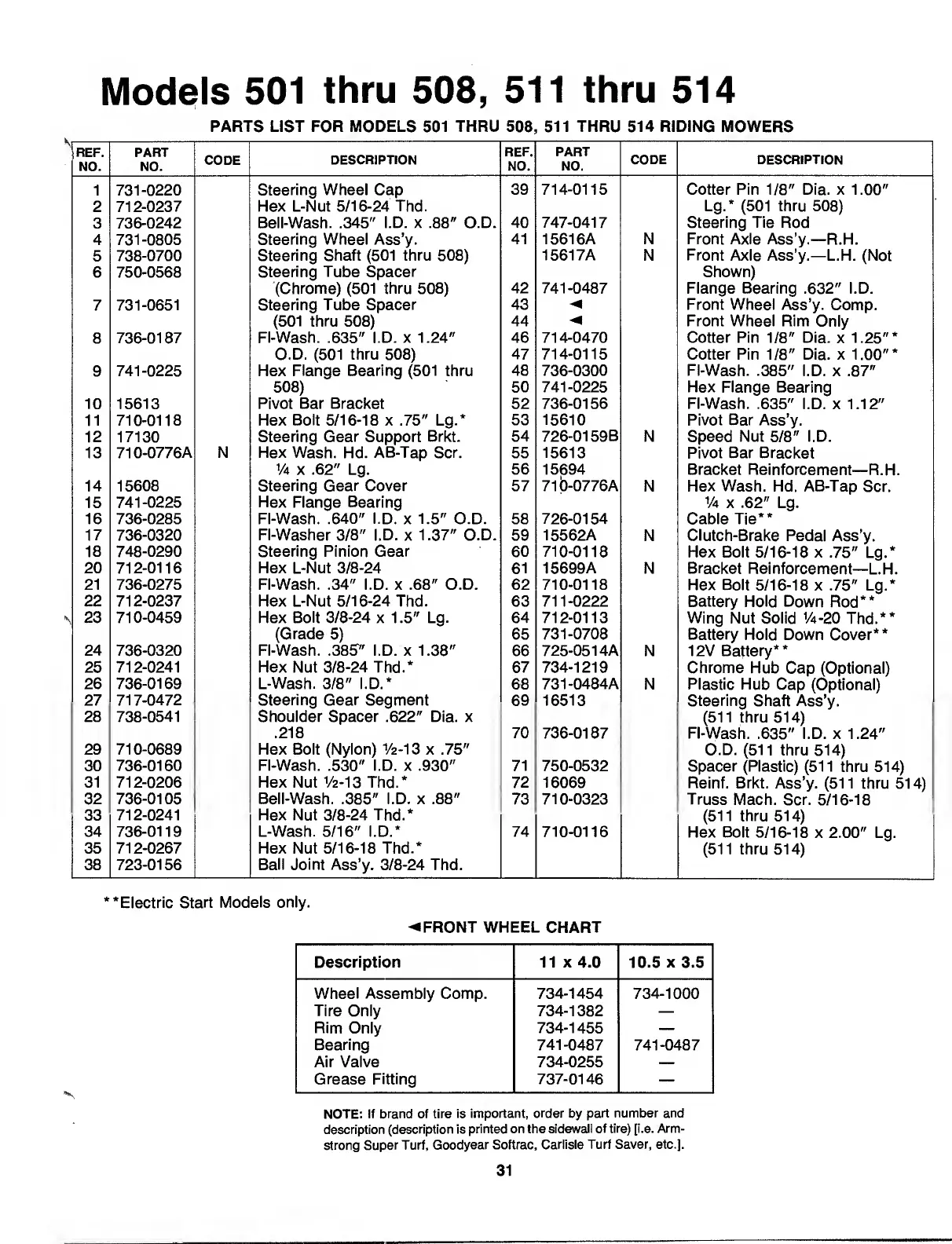

PARTS LIST FOR MODELS 501 THRU 508, 511 THRU 514 RIDING MOWERS
DESCRIPTION
REF.
NO.
PART
NO.
CODE
DESCRIPTION
1 731-0220
Steering Wheel Cap
39 714-0115
Cotter Pin 1/8" Dia. x 1.00"
2
712-0237 Hex L-Nut 5/16-24 Thd.
Lg.* (501 thru 508)
3
736-0242 Bell-Wash. .345" I.D. x .88" O.D.
40 747-0417 Steering Tie Rod
4 731-0805 Steering Wheel Ass’y.
41 15616A N
Front Axle Ass’y.—R.H.
5
738-0700
Steering Shaft (501 thru 508)
15617A
N Front Axle Ass’y.—L.H. (Not
6 750-0568
Steering Tube Spacer Shown)
(Chrome) (501 thru 508)
42
741-0487 Flange Bearing .632" I.D.
7 731-0651
Steering Tube Spacer
43
◄
Front Wheel Ass’y. Comp.
(501 thru 508)
44
◄
Front Wheel Rim Only
8
736-0187
FI-Wash. .635" I.D. x 1.24" 46 714-0470
Cotter Pin 1/8" Dia. x 1.25"*
O.D. (501 thru 508) 47 714-0115
Cotter Pin 1/8" Dia. x 1.00"*
9 741-0225
Hex Flange Bearing (501 thru
48 736-0300
FI-Wash. .385" I.D. x .87"
508) 50
741-0225 Hex Flange Bearing
10 15613
Pivot Bar Bracket 52 736-0156
FI-Wash. .635" I.D. x 1.12"
11 710-0118 Hex Bolt 5/16-18 x .75" Lg.*
53 15610 Pivot Bar Ass’y.
12
17130
Steering Gear Support Brkt.
54 726-0159B
N
Speed Nut 5/8" I.D.
13
710-0776A N Hex Wash. Hd. AB-Tap Scr.
55 15613 Pivot Bar Bracket
1/4 x .62" Lg. 56 15694
Bracket Reinforcement—R.H.
14 15608
Steering Gear Cover
57 71 (3-0776A N
Hex Wash. Hd. AB-Tap Scr.
15
741-0225
Hex Flange Bearing
1/4 x .62" Lg.
16 736-0285
FI-Wash. .640" I.D. x 1.5" O.D.
58
726-0154
Cable Tie**
17
736-0320
Fl-Washer 3/8" I.D. x 1.37" O.D.
59
15562A
N
Clutch-Brake Pedal Ass’y.
18 748-0290 Steering Pinion Gear 60
710-0118
Hex Bolt 5/16-18 x .75" Lg.*
20 712-0116 Hex L-Nut 3/8-24
61
15699A N
Bracket Reinforcement—L.H.
21
736-0275 FI-Wash. .34" I.D. x .68" O.D. 62 710-0118
Hex Bolt 5/16-18 x .75" Lg.*
22 712-0237
Hex L-Nut 5/16-24 Thd. 63
711-0222
Battery Hold Down Rod**
23 710-0459 Hex Bolt 3/8-24 x 1.5" Lg.
64 712-0113
Wing Nut Solid 74-20 Thd.**
(Grade 5)
65
731-0708
Battery Hold Down Cover**
24
736-0320 FI-Wash. .385" I.D. x 1.38"
66
725-0514A N
12V Battery**
25
712-0241 Hex Nut 3/8-24 Thd.*
67 734-1219
Chrome Hub Cap (Optional)
26
736-0169
L-Wash. 3/8" I.D.*
68
731-0484A N
Plastic Hub Cap (Optional)
27
717-0472
Steering Gear Segment
69 16513 Steering Shaft Ass’y.
28 738-0541
Shoulder Spacer .622" Dia. x
(511 thru 514)
.218
70
736-0187
FI-Wash. .635" I.D. x 1.24"
29 710-0689 Hex Bolt (Nylon) V2-13 x .75"
O.D. (511 thru 514)
30
736-0160
FI-Wash. .530" I.D. x .930"
71 750-0532
Spacer (Plastic) (511 thru 514)
31 712-0206
Hex Nut V2-13 Thd.*
72
16069
Reinf. Brkt. Ass’y. (511 thru 514)
32 736-0105 Bell-Wash. .385" I.D. x .88"
73 710-0323
Truss Mach. Scr. 5/16-18
33
712-0241 Hex Nut 3/8-24 Thd.*
(511 thru 514)
34
736-0119
L-Wash. 5/16" I.D.* 74
710-0116
Hex Bolt 5/16-18 x 2.00" Lg.
35
712-0267
Hex Nut 5/16-18 Thd.*
(511 thru 514)
38
723-0156
Ball Joint Ass’y. 3/8-24 Thd.
** Electric Start Models only.
◄ FRONT WHEEL CHART
Description 11 x 4.0
10.5 x 3.5
Wheel Assembly Comp. 734-1454 734-1000
Tire Only
734-1382
—
Rim Only 734-1455
—
Bearing 741-0487 741-0487
Air Valve 734-0255
—
Grease Fitting 737-0146 —
NOTE: If brand of tire is important, order by part number and
description (description is printed on the sidewall of tire) [i.e. Arm¬
strong Super Turf, Goodyear Softrac, Carlisle Turf Saver, etc.].
31
