11

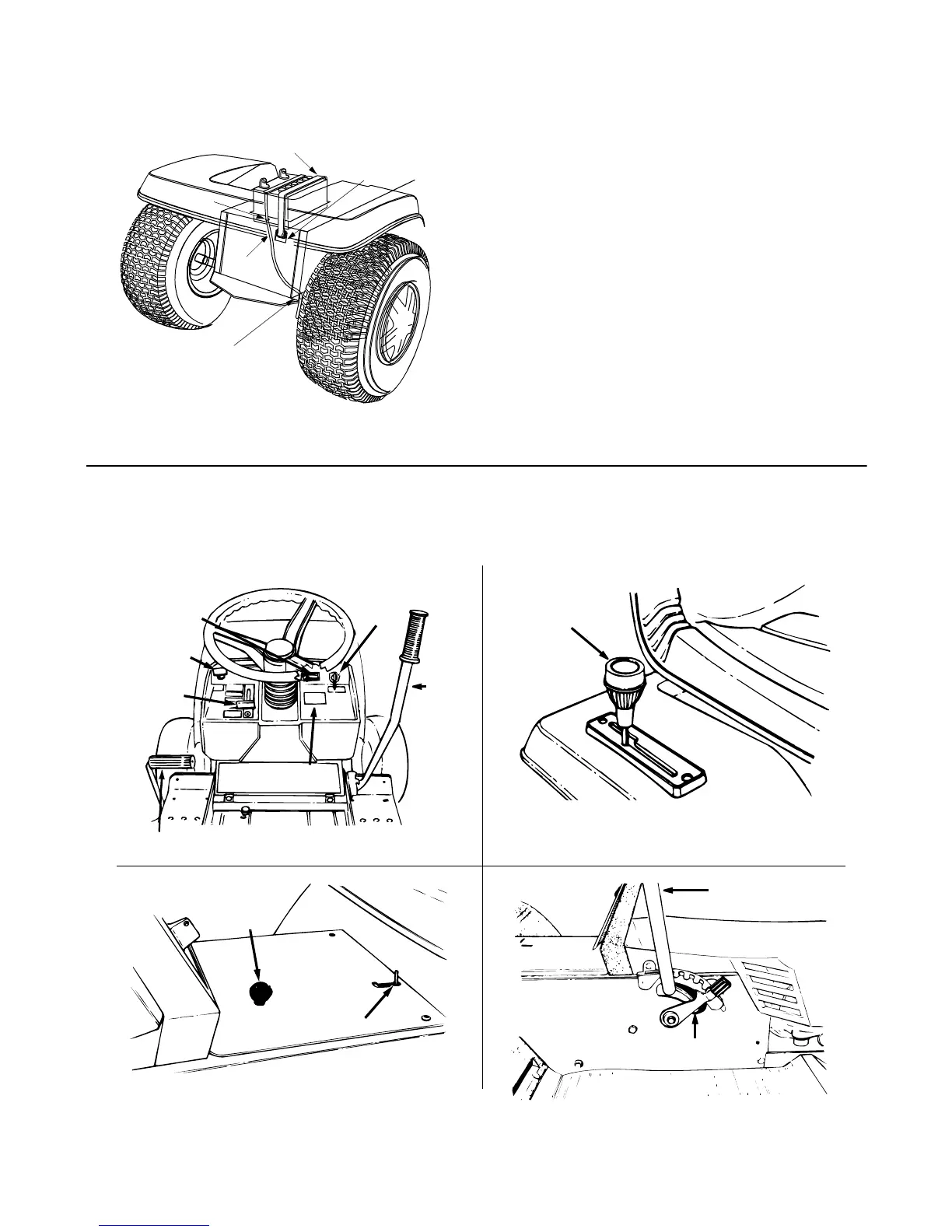

• Secure battery by hooking battery strap into slot in
rear frame, under the fender. See Figure 10 .
Figure 10
• Insert the drain tube down through the hole in the
battery compartment and the hole in the transaxle
reinforcement bracket located on the right side of
the unit. See Figure 10 . Be certain drain tube is
routed away from the wheel rim.
• Trim excess end of drain tube if necessary (about
4" should extend past the bracket or cable tie).
SECTION 4: KNOW YOUR LAWN TRACTOR
Compare the illustrations in Figure 11 with the controls present on your tractor to familiarize yourself with the
location and features of various controls.
Figure 11
Slot
in Frame
Battery
Strap
Drain
Tube
Transaxle
Reinforcement
Bracket
Hole
Light
Switch
(Optional)
Ignition
Switch
Choke
Throttle
Control
Ammeter
(Optional)
Lift
Lever
Clutch-Brake
Pedal
Hydrostatic
Control
Lever
Relief
Valve
Parking
Brake
Knob
Deck
Lift Indicator
(Optional)
Lift Lever
