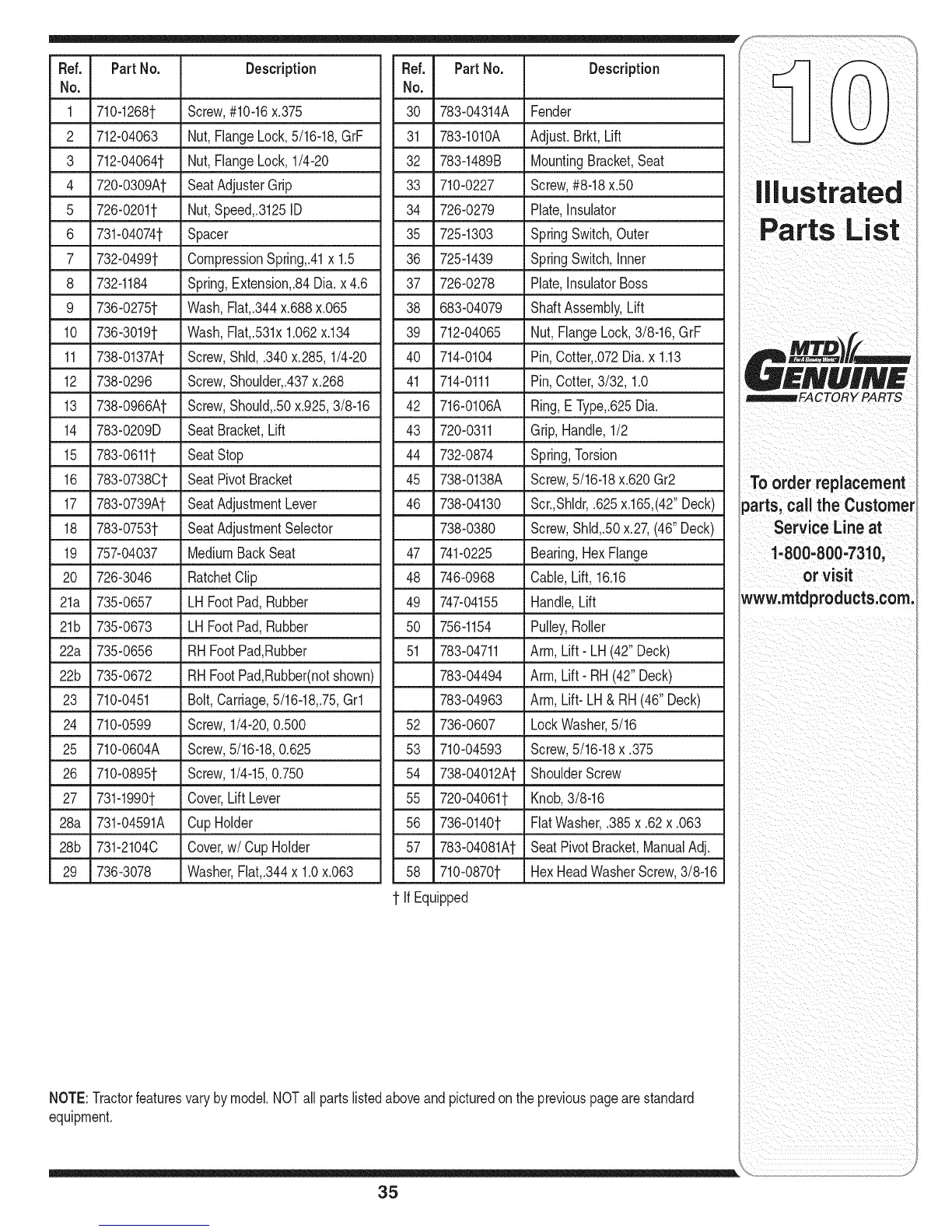

MTD 769-01645A - Page 35

Ref. Part No. Description Ref. PartNo. Description
No. No.
1 710-1268t Screw,#10-16x.375 30 783-04314A Fender
2 712-04063 Nut, FlangeLock,5/16-18,GrF
3 712-04064t Nut,FlangeLock,1/4-20
4 720-0309At SeatAdjusterGrip
5 726-0201t Nut,Speed,.3125ID
6 731-04074t Spacer
7 732-0499t CompressionSpring,.41x 1.5
8 732-1184 Spring,Extension,.84Dia.x 4.6
9 736-0275t Wash,Flat,.344x.688x.065
10 736-3019t Wash,Flat,.531x1.062x.134
11 738-0137At Screw,Shld,.340x.285,1/4-20
12 738-0296 Screw,Shoulder,.437x.268
13 738-0966At Screw,Should,.50x.925,3/8-16
14 783-0209D SeatBracket,Lift
15 783-0611t SeatStop
16 783-07380t Seat PivotBracket
17 783-0739At SeatAdjustmentLever
18 783-0753t SeatAdjustmentSelector
19 757-04037 MediumBackSeat
20 726-3046 RatchetClip
21a 735-0657 LHFootPad,Rubber
21b 735-0673 LHFootPad,Rubber
22a 735-0656 RH FootPad,Rubber
22b 735-0672 RH FootPad,Rubber(notshown)
23 710-0451 Bolt,Carriage,5/16-18,.75,Grl
24 710-0599 Screw,1/4-20,0.500
25 710-0604A Screw,5/16-18,0.625
26 710-0895t Screw,1/4-15,0.750
27 731-1990t Cover,Lift Lever
28a 731-04591A CupHolder
28b 731-21040 Cover,w/Cup Holder
29 736-3078 Washer,Flat,.344x 1.0x.063
31 783-1010A Adjust.Brkt, Lift
32 783-1489B MountingBracket,Seat
33 710-0227 Screw,#8-18x.50
34 726-0279 Plate,Insulator
35 725-1303 SpringSwitch,Outer
36 725-1439 SpringSwitch,inner
37 726-0278 Plate,InsulatorBoss
38 683-04079 ShaftAssembly,Lift
39 712-04065 Nut,FlangeLock,3/8-16,GrF
40 714-0104 Pin,Cotter,.072Dia.x 1.13
41 714-0111 Pin,Cotter,3/32, 1.0
42 716-0106A Ring,E Type,.625Dia.
43 720-0311 Grip,Handle,1/2
44 732-0874 Spring,Torsion
45 738-0138A Screw,5/16-18x.620Gr2
46 738-04130 Scr.,Shldr,.625x.165,(42"Deck)
738-0380 Screw,Shld,.50x.27,(46"Deck)
47 741-0225 Bearing,HexFlange
48 746-0968 Cable,Lift, 16.16
49 747-04155 Handle,Lift
50 756-1154 Pulley,Roller
51 783-04711 Arm,Lift- LH(42"Deck)
783-04494 Arm,Lift- RH(42"Deck)
783-04963 Arm,Lift- LH& RH(46" Deck)
52 736-0607 LockWasher,5/16
53 710-04593 Screw,5/16-18x.375
54 738-04012At ShoulderScrew
55 720-04061t Knob,3/8-16
56 736-0140t FiatWasher,.385x .62x .063
57 783-04081At SeatPivotBracket,ManualAdj.
58 710-0870t HexHeadWasherScrew,3/8-16
tIf Equipped
NOTE:Tractorfeaturesvaryby model.NOTall partslistedaboveandpicturedonthepreviouspagearestandard
equipment.
i _ i _ i i i i i I
i! iiii!
To orderreplacement
parts;call theCustomer
Service Line at
1'800,800.73101
www.mtdproducts:com,
35
