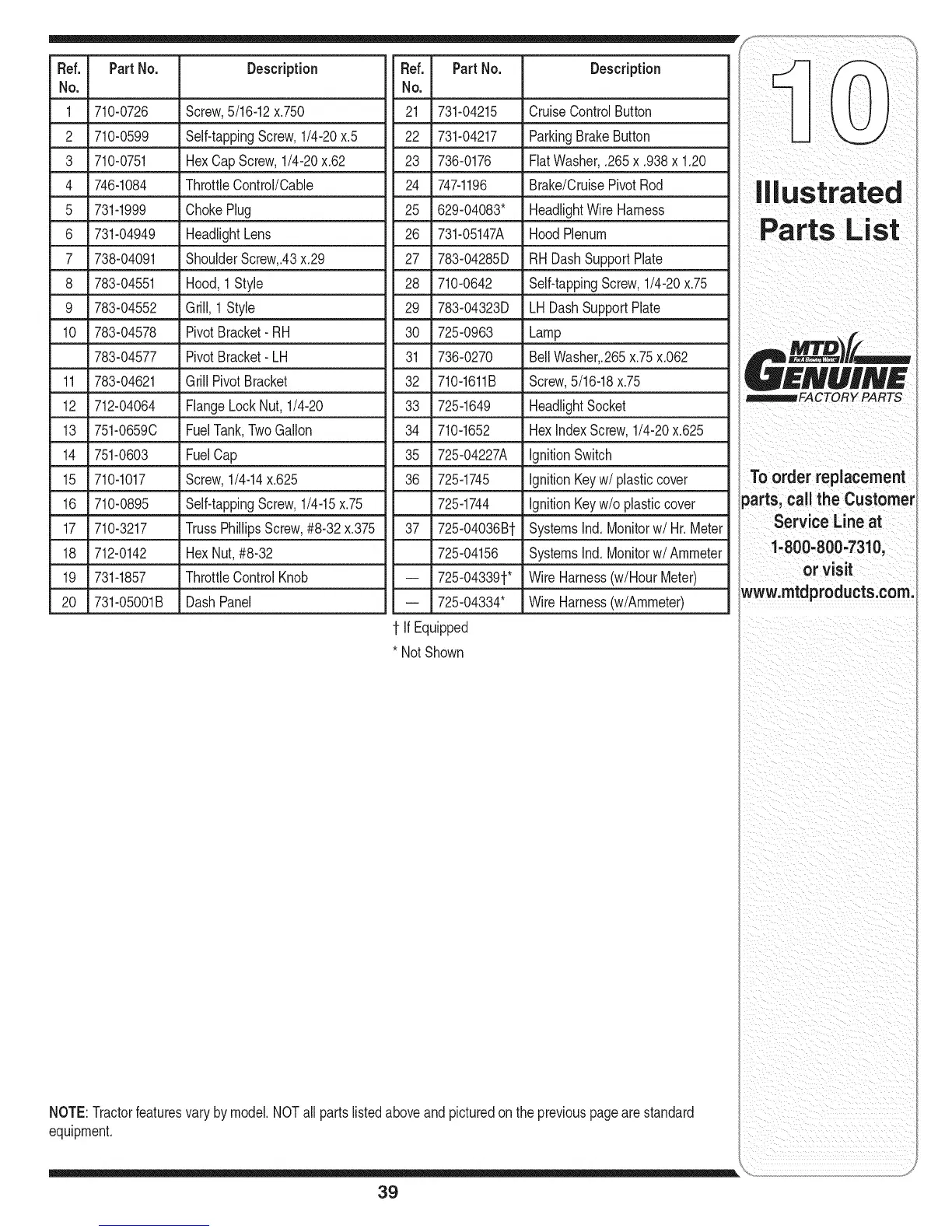

MTD 769-01645A - Page 39

Ref. Part No.
No.
1 710-0726
2 710-0599
3 710-0751
4 746-1084
5 731-1999
6 731-04949
7 738-04091
8 783-04551
Description
Screw,5/16-12x.750
Self-tappingScrew,1/4-20x.5
HexCapScrew,1/4-20x.62
ThrottleControl/Cable
ChokePlug
HeadlightLens
ShoulderScrew,.43x.29
Hood,1Style
Ref. Part No.
No.
21 731-04215
22 731-04217
23 736-0176
24 747-1196
25 629-04083*
26 731-05147A
27 783-04285D
28 710-0642
Description
CruiseControlButton
ParkingBrakeButton
FiatWasher,.265x .938x 1.20
Brake/CruisePivotRod
HeadlightWireHarness
HoodPlenum
RHDashSupportPlate
Self-tappingScrew,1/4-20x.75
9 783-04552 Grill, 1Style 29 783-04323D LH DashSupportPlate
10 783-04578
783-04577
11 783-04621
12 712-04064
13 751-0659C
14 751-0603
15 710-1017
16 710-0895
PivotBracket-RH
PivotBracket-LH
GrillPivotBracket
FlangeLockNut,1/4-20
FuelTank,TwoGallon
FuelCap
Screw,1/4-14x.625
Self-tappingScrew,1/4-15x.75
30 725-0963
31 736-0270
32 710-1611B
33 725-1649
34 710-1652
35 725-04227A
36 725-1745
725-1744
Lamp
BellWasher,.265x.75x.062
Screw,5/16-18x.75
HeadlightSocket
HexindexScrew,1/4-20x.625
ignitionSwitch
ignitionKeyw/plastic cover
ignitionKeyw/o plasticcover
17 710-3217 TrussPhillipsScrew,#8-32x.375 37 725-04036Bt SystemsInd.Monitorw/ Hr.Meter
18 712-0142 HexNut,#8-32 725-04156 SystemsInd.Monitorw/Ammeter
19 731-1857 ThrottleControlKnob -- 725-043391-* WireHarness(w/HourMeter)
20 731-05001B DashPanel -- 725-04334* WireHarness(w/Ammeter)
1 If Equipped
* NotShown
NOTE:Tractorfeaturesvaryby model.NOTall partslistedaboveandpicturedonthepreviouspagearestandard
equipment.
