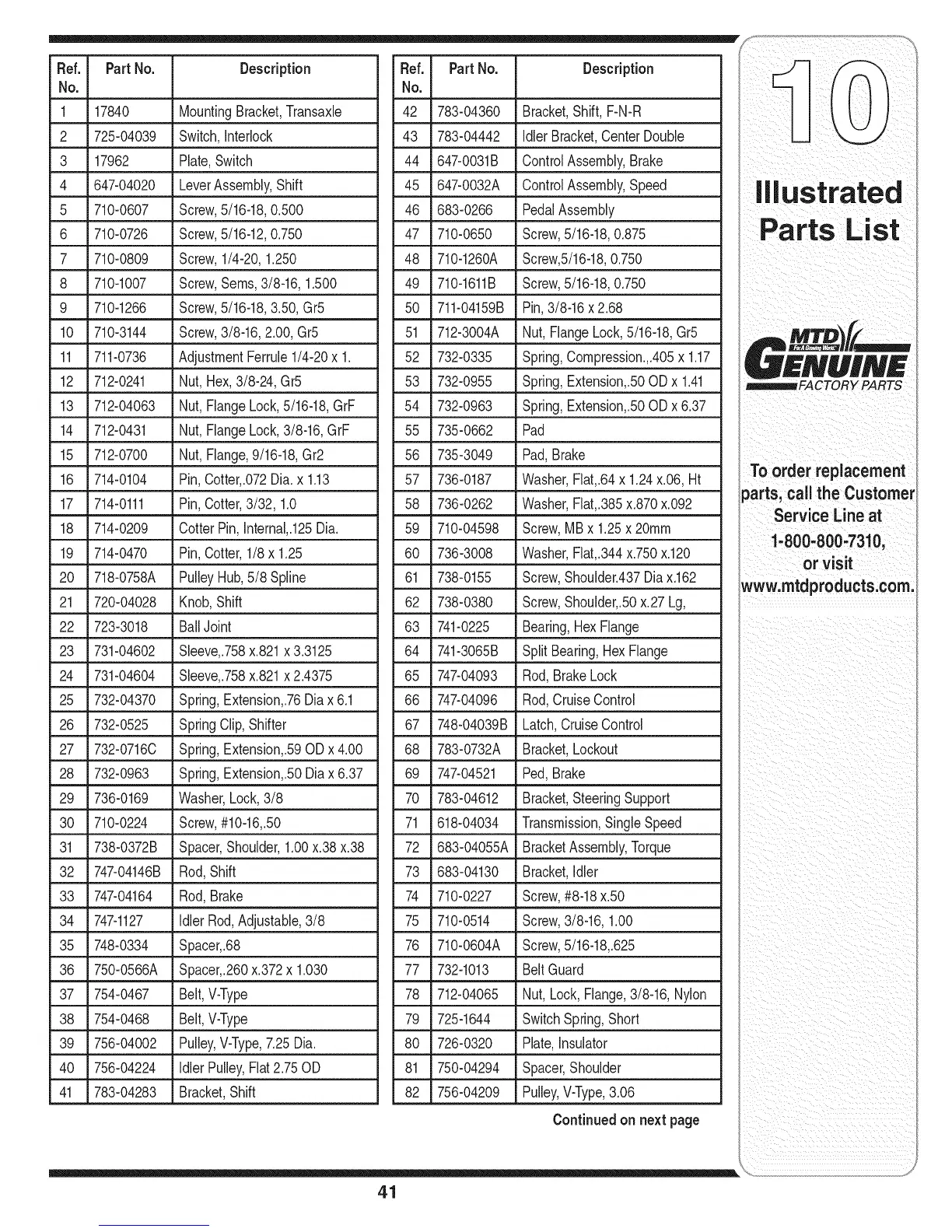

MTD 769-01645A - Page 41

Fief. PartNo. Description
No.
1 17840 MountingBracket,Transaxle
2 725-04039 Switch,Interlock
3 17962 Plate,Switch
4 647-04020 LeverAssembly,Shift
5 710-0607 Screw,5/16-18,0.500
6 710-0726 Screw,5/16-12,0.750
7 710-0809 Screw,1/4-20,1.250
8 710-1007 Screw,Seres,3/8-16,1.500
9 710-1266 Screw,5/16-18,3.50,Gr5
10 710-3144 Screw,3/8-16,2.00,Gr5
11 711-0736 AdjustmentFerrule1/4-20x 1.
12 712-0241 Nut,Hex,3/8-24,Gr5
13 712-04063 Nut,FlangeLock,5/16-18,GrF
14 712-0431 Nut,FlangeLock,3/8-16,GrF
15 712-0700 Nut,Flange,9/16-18,Gr2
16 714-0104 Pin,Cotter,.072Dia.x 1.13
17 714-0111 Pin,Cotter,3/32, 1.0
18 714-0209 CotterPin,Internal,.125Dia.
19 714-0470 Pin,Cotter,1/8 x 1.25
20 718-0758A PulleyHub,5/8Spline
21 720-04028 Knob,Shift
22 723-3018 BallJoint
23 731-04602 Sleeve,.758x.821x 3.3125
24 731-04604 Sleeve,.758x.821x 2.4375
25 732-04370 Spring,Extension,.76Diax6.1
26 732-0525 SpringClip,Shifter
27 732-0716C Spring,Extension,.590Dx4.00
28 732-0963 Spring,Extension,.50Diax6.37
29 736-0169 Washer,Lock,3/8
30 710-0224 Screw,#10-16,.50
31 738-0372B Spacer,Shoulder,1.00x.38x.38
32 747-04146B Rod,Shift
33 747-04164 Rod,Brake
34 747-1127 IdlerRod,Adjustable,3/8
35 748-0334 Spacer,.68
36 750-0566A Spacer,.260x.372x 1.030
37 754-0467 Belt,V-Type
38 754-0468 Belt,V-Type
39 756-04002 Pulley,V-Type,7.25Dia.
40 756-04224 IdlerPulley,Flat2.75OD
41 783-04283 Bracket,Shift
Fief. PartNo. Description
No.
42 783-04360 Bracket,Shift, F-N-R
43 783-04442 IdlerBracket,CenterDouble
44 647-0031B ControlAssembly,Brake
45 647-0032A ControlAssembly,Speed
46 683-0266 PedalAssembly
47 710-0650 Screw,5/16-18,0.875
48 710-1260A Screw,5/16-18,0.750
49 710-1611B Screw,5/16-18,0.750
50 711-04159B Pin,3/8-16x2.68
51 712-3004A Nut,FlangeLock,5/16-18,Gr5
52 732-0335 Spring,Compression.,.405x 1.17
53 732-0955 Spring,Extension,.50OD x 1.41
54 732-0963 Spring,Extension,.50OD x 6.37
55 735-0662 Pad
56 735-3049 Pad,Brake
57 736-0187 Washer,Flat,.64x 1.24x.06,Ht
58 736-0262 Washer,Flat,.385x.870x.092
59 710-04598 Screw,MBx 1.25x 20ram
60 736-3008 Washer,Flat,.344x.750x.120
61 738-0155 Screw,Shoulder.437Diax.162
62 738-0380 Screw,Shoulder,.50x.27Lg,
63 741-0225 Bearing,HexFlange
64 741-3065B SplitBearing,HexFlange
65 747-04093 Rod,BrakeLock
66 747-04096 Rod,CruiseControl
67 748-04039B Latch,CruiseControl
68 783-0732A Bracket,Lockout
69 747-04521 Ped,Brake
70 783-04612 Bracket,SteeringSupport
71 618-04034 Transmission,SingleSpeed
72 683-04055A BracketAssembly,Torque
73 683-04130 Bracket,Idler
74 710-0227 Screw,#8-18x.50
75 710-0514 Screw,3/8-16,1.00
76 710-0604A Screw,5/16-18,.625
77 732-1013 BeltGuard
78 712-04065
79 725-1644
80 726-0320
81 750-04294
82 756-04209
Nut,Lock,Flange,3/8-16,Nylon
SwitchSpring,Short
Plate,Insulator
Spacer,Shoulder
Pulley,V-Type,3.06
Continued on nextpage
llui tra'
Parts List
To order replacement
Line at
1=800.800=7310,
or visit
41
