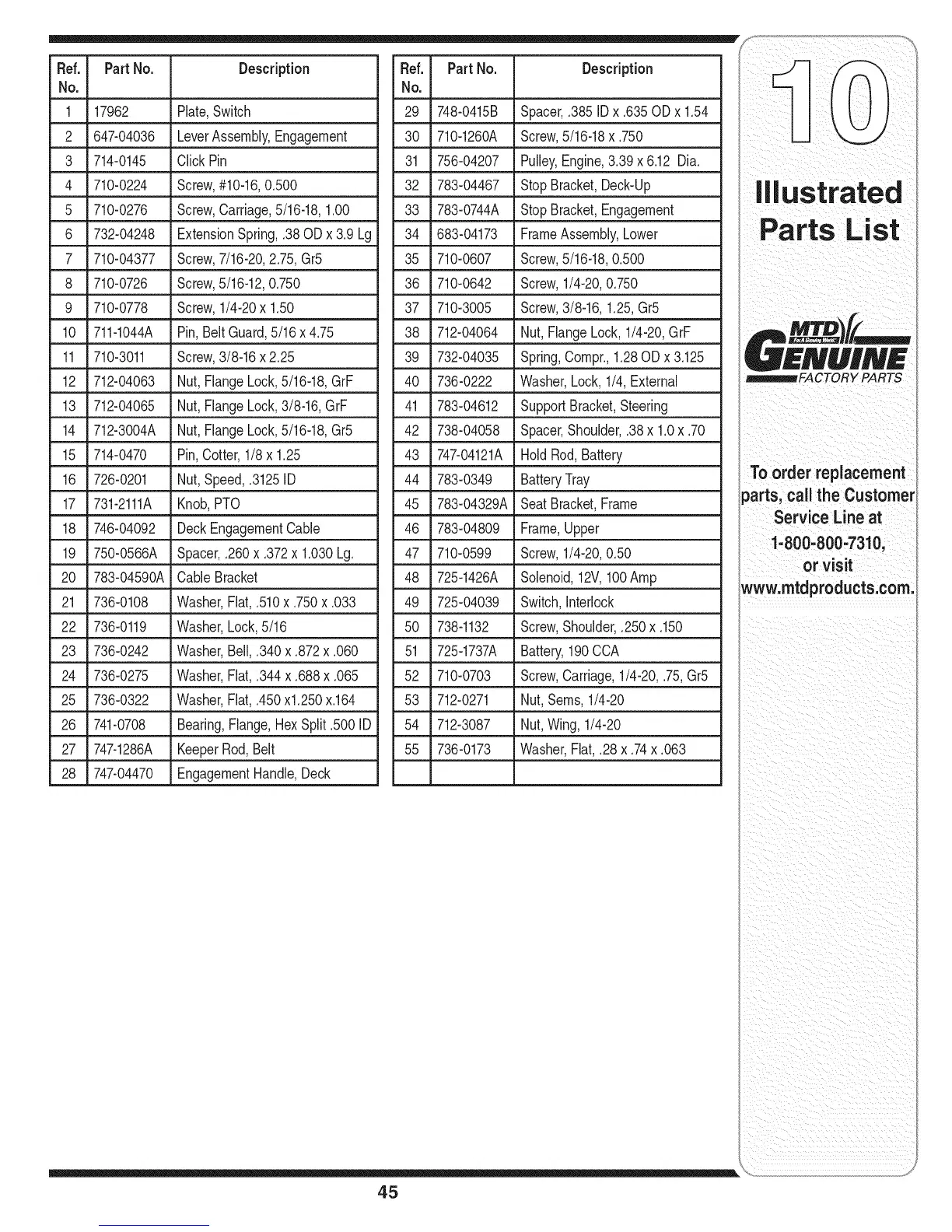

Fief. PartNo. Description
No.
1 17962 Plate,Switch
2 647-04036 LeverAssembly,Engagement
3 714-0145 ClickPin
4 710-0224 Screw,#10-16,0.500
5 710-0276 Screw,Carriage,5/16-18,1.00
6 732-04248 ExtensionSpring,.38 ODx 3.9 Lg
7 710-04377 Screw,7/16-20,2.75,Gr5
8 710-0726 Screw,5/16-12,0.750
9 710-0778 Screw,1/4-20x 1.50
10 711-1044A Pin,BeltGuard,5/16x 4.75
11 710-3011 Screw,3/8-16x2.25
12 712-04063 Nut,FlangeLock,5/16-18,GrF
13 712-04065 Nut,FlangeLock,3/8-16,GrF
14 712-3004A Nut,FlangeLock,5/16-18,Gr5
15 714-0470 Pin,Cotter,1/8 x 1.25
16 726-0201 Nut,Speed,.3125ID
17 731-2111A Knob,PTO
18 746-04092 DeckEngagementCable
19 750-0566A Spacer,.260x.372x 1.030Lg.
20 783-04590A CableBracket
21 736-0108 Washer,Fiat,.510x .750x .033
22 736-0119 Washer,Lock,5/16
23 736-0242 Washer,Bell,.340x.872x .060
24 736-0275 Washer,Fiat,.344x.688x .065
25 736-0322 Washer,Fiat,.450x1.250x.164
26 741-0708 Bearing,Flange,HexSplit.500 ID
27 747-1286A KeeperRod,Belt
28 747-04470 EngagementHandle,Deck
Fief. PartNo. Description
No.
29 748-0415B Spacer,.385IDx .635ODx 1.54
30 710-1260A Screw,5/16-18x.750
31 756-04207 Pulley,Engine,3.39 x 6.12 Dia.
32 783-04467 StopBracket,Deck-Up
33 783-0744A StopBracket,Engagement
34 683-04173 FrameAssembly,Lower
35 710-0607 Screw,5/16-18,0.500
36 710-0642 Screw,1/4-20,0.750
37 710-3005 Screw,3/8-16,1.25,Gr5
38 712-04064 Nut,FlangeLock, 1/4-20,GrF
39 732-04035 Spring,Compr.,1.28ODx 3.125
40 736-0222 Washer,Lock,1/4,External
41 783-04612 SupportBracket,Steering
42 738-04058 Spacer,Shoulder,.38x 1.0x.70
43 747-04121A Hold Rod,Battery
44 783-0349 BatteryTray
45 783-04329A Seat Bracket,Frame
46 783-04809 Frame,Upper
47 710-0599 Screw,1/4-20,0.50
48 725-1426A Solenoid,12V,100Amp
49 725-04039 Switch,Interlock
50 738-1132 Screw,Shoulder,.250x .150
51 725-1737A Battery,190CCA
52 710-0703 Screw,Carriage,1/4-20,.75,Gr5
53 712-0271 Nut, Seres,1/4-20
54 712-3087 Nut,Wing,1/4-20
55 736-0173 Washer,Fiat,.28x .74x .063
