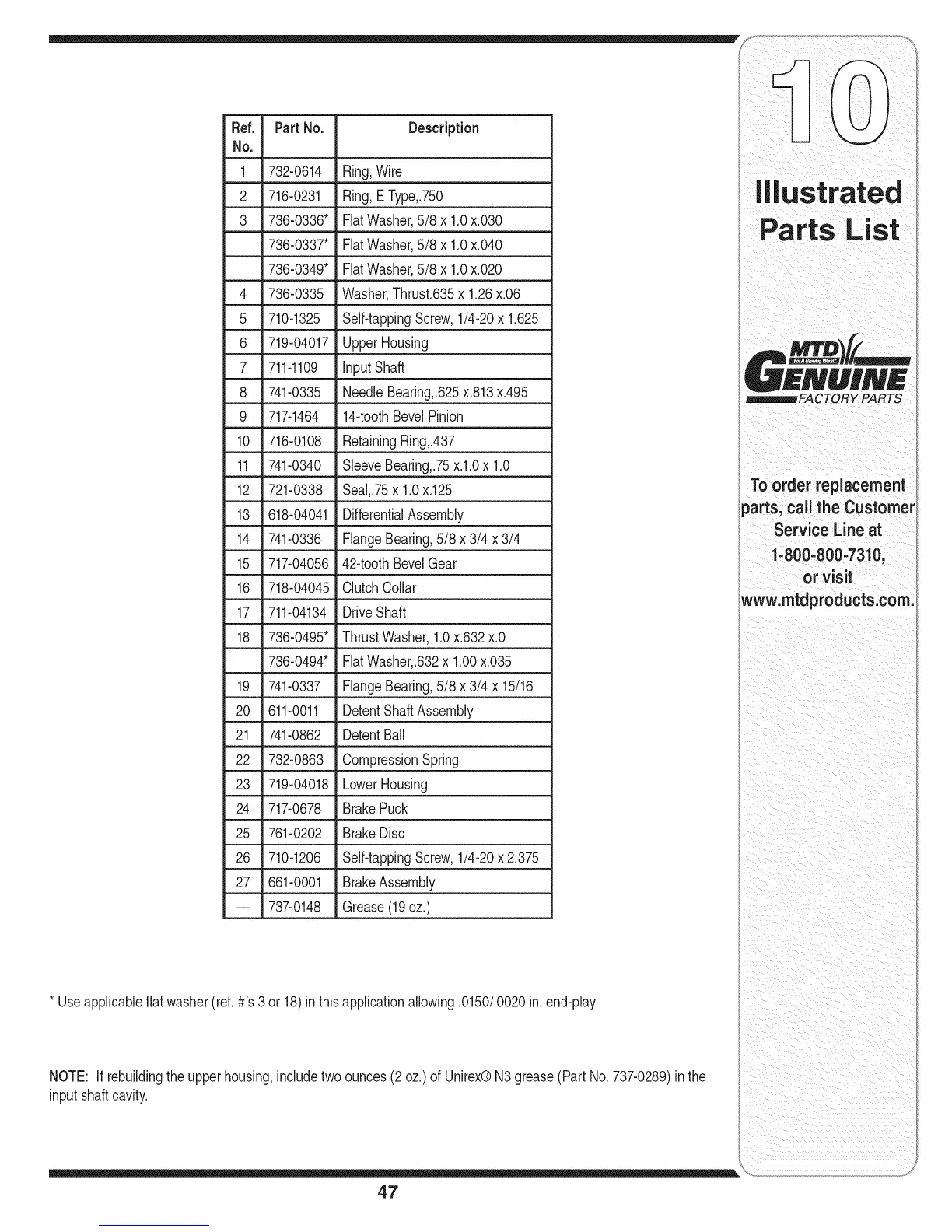

MTD 769-01645A - Page 47

Ref. Part No. Description
No.
1 732-0614 Ring,Wire
2 716-0231 Ring,EType,.750
3 736-0336" FlatWasher,5/8x 1.0x.030
736-0337" FlatWasher,5/8 x 1.0x.040
736-0349" FlatWasher,5/8 x 1.0x.020
4 736-0335 Washer,Thrust.635x 1.26x.06
5 710-1325 Self-tappingScrew,1/4-20x 1.625
6 719-04017 UpperHousing
7 711-1109 inputShaft
8 741-0335 NeedleBearing,.625x.813x.495
9 717-1464 14-toothBevelPinion
10 716-0108 RetainingRing,.437
11 741-0340 SleeveBearing,.75x.l.0 x 1.0
12 721-0338 Seal,.75x1.0x.125
13 618-04041 DifferentialAssembly
14 741-0336 FlangeBearing,5/8 x 3/4 x 3/4
15 717-04056 42-toothBevelGear
16 718-04045 ClutchCollar
17 711-04134 DriveShaft
18 736-0495* ThrustWasher,1.0x.632x.O
736-0494* FiatWasher,.632x 1.00x.035
19 741-0337 FlangeBearing,5/8 x 3/4 x 15/16
20 611-0011 DetentShaftAssembly
21 741-0862 DetentBall
22 732-0863 CompressionSpring
23 719-04018 LowerHousing
24 717-0678 BrakePuck
25 761-0202 BrakeDisc
26 710-1206 Self-tappingScrew,1/4-20x2.375
27 661-0001 BrakeAssembly
-- 737-0148 Grease(19oz.)
* Useapplicableflat washer(ref.#'s 3 or 18)inthis applicationallowing.0150/.0020in.end-play
NOTE: If rebuildingtheupperhousing,includetwoounces(2oz.)of Unirex®N3grease(Part No.737-0289)in the
inputshaftcavity.
