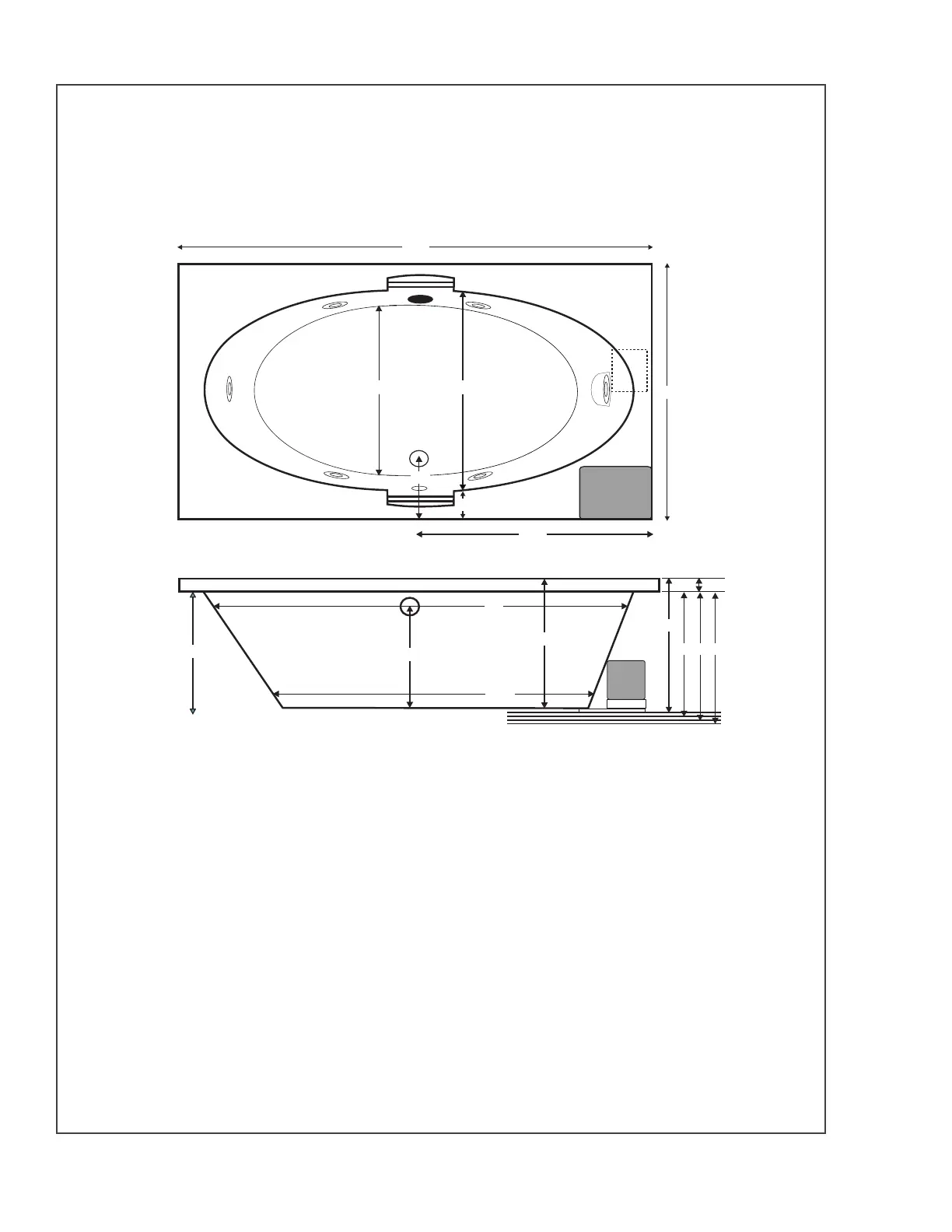

A: Overall length
B: Overall width
C: Overall height
D: Height — flange bottom to tub bottom
E: Inside tub height
F: Center of overflow to tub bottom
G: Drain center to right tub edge
H: Inside bowl width at top of bowl
I: Inside bowl width at bottom of bowl
J: Inside bowl length at top of bowl
K: Inside bowl length at bottom of bowl
L: Flange edge depth
M: Top flange width
N: Drain center to edge of flange
O: Allow 1/2” to 1” to D for wet bedding
P: Pre-leveled frame height* – Adds
1/2”- 3” to height
Q: Air bath height* – Adds approximately
2” to height
* Please measure actual tub prior to building
any decking or framing. Specifications are
subject to change without notice. MTI Baths
is NOT responsible for any preparatory
labor or materials.
IMPORTANT INSTALLATION
MEASUREMENTS
To Next Page
