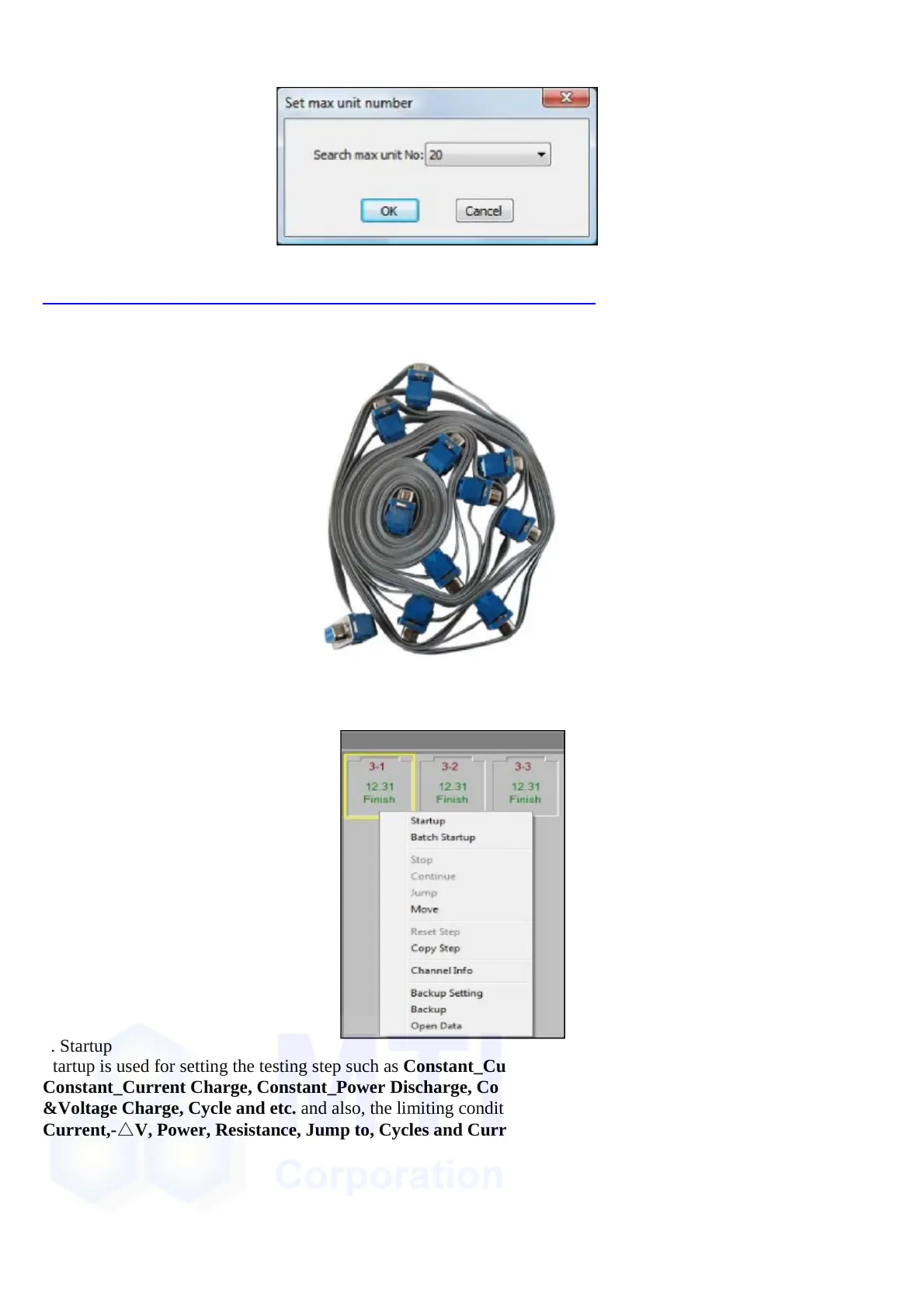

Please order multi-port cable with 11 rs232 terminals at
http://www.mtixtl.com/index.asp?PageAction=VIEWPROD&ProdID=1719
, which means the customer can use
only one computer to control as many as 10 sets battery analyzer in one GUI:
3. Setting
3-1. Choose a channel you need to test and make sure the battery is well connected.
3-2. Right click the block representing the channel and you will see a menu as below:
a. Startup
Startup is used for setting the testing step such as Constant_Current Discharge, Constant_Voltage Charge,
Constant_Current Charge, Constant_Power Discharge, Constant_Resistance Charge, Constant_Current
&Voltage Charge, Cycle and etc. and also, the limiting condition (or cut-off condition) Time, Voltage,
Current,-△V, Power, Resistance, Jump to, Cycles and Current-Stop.
