Item Description
Constant_Current Discharge Limiting condition Current is required, others as optional
Constant_Voltage Charge Limiting condition Voltage is required, others as optional
Constant_Current Charge Limiting condition Current is required, others as optional
Constant_Power Discharge Limiting condition Power is required and at least one in others as discharge
cut-off condition.
Constant_Current
&Voltage Charge
Limiting condition Current, Voltage and Current-stop are required, others as
optional
Constant_Resistance
Discharge
Limiting condition Resistant is required and at least one in others as discharge
cut-off condition.
Cycle Limiting condition Cycles (cycle times, 9999 at max) and Jump-to (cycle
starting step number) is required
Pause Temporarily stop the testing
Rest Limiting condition Time is required
Stop Stop as the last step
For every procedure, the maximum step number is 64 and “stop” as the last step.
For limiting condition (or cut-off) in one step, they are in Logic OR Operation, no value means not in use.

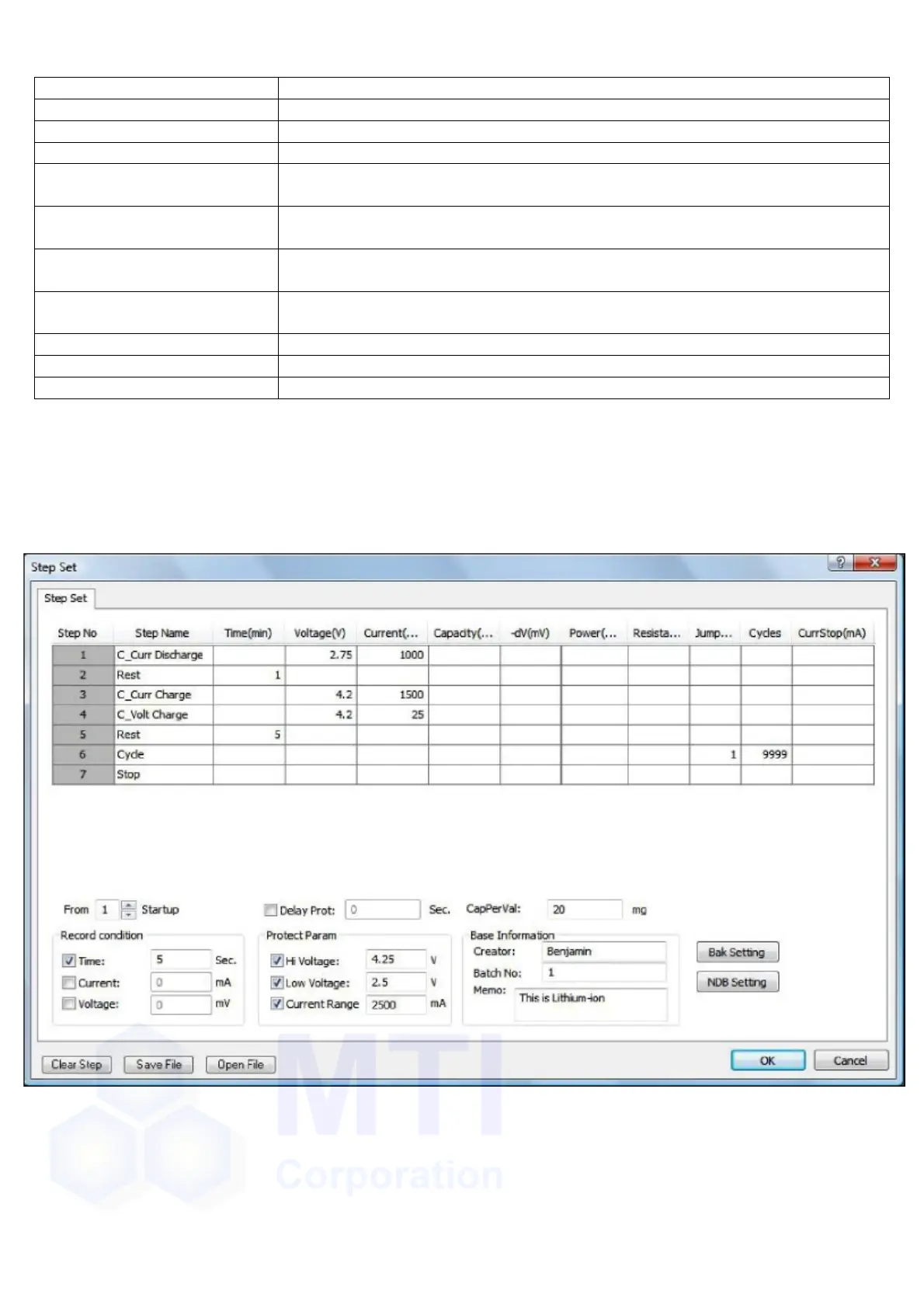

Here, we take 3000mAH Lithium Ion battery for example to set the process as described in the below picture.
