MTI DESIGNER COLLECTION - Rough-in Measurements

2
B
A
** The overflow assembly for models 134, 146, 147 & 180 is pre-installed at the factory. Tub does not
have an access panel. Must have access below the tub for installation and servicing.
* Due to the concave shape of the model 82, the edge of the tub at the overflow is inset from the
corners. Use these measurements when estimating distance from the wall to center of tub or drain.
Note: All specifications are subject to change without notice. MTI recommends
measuring your specific tub on site.

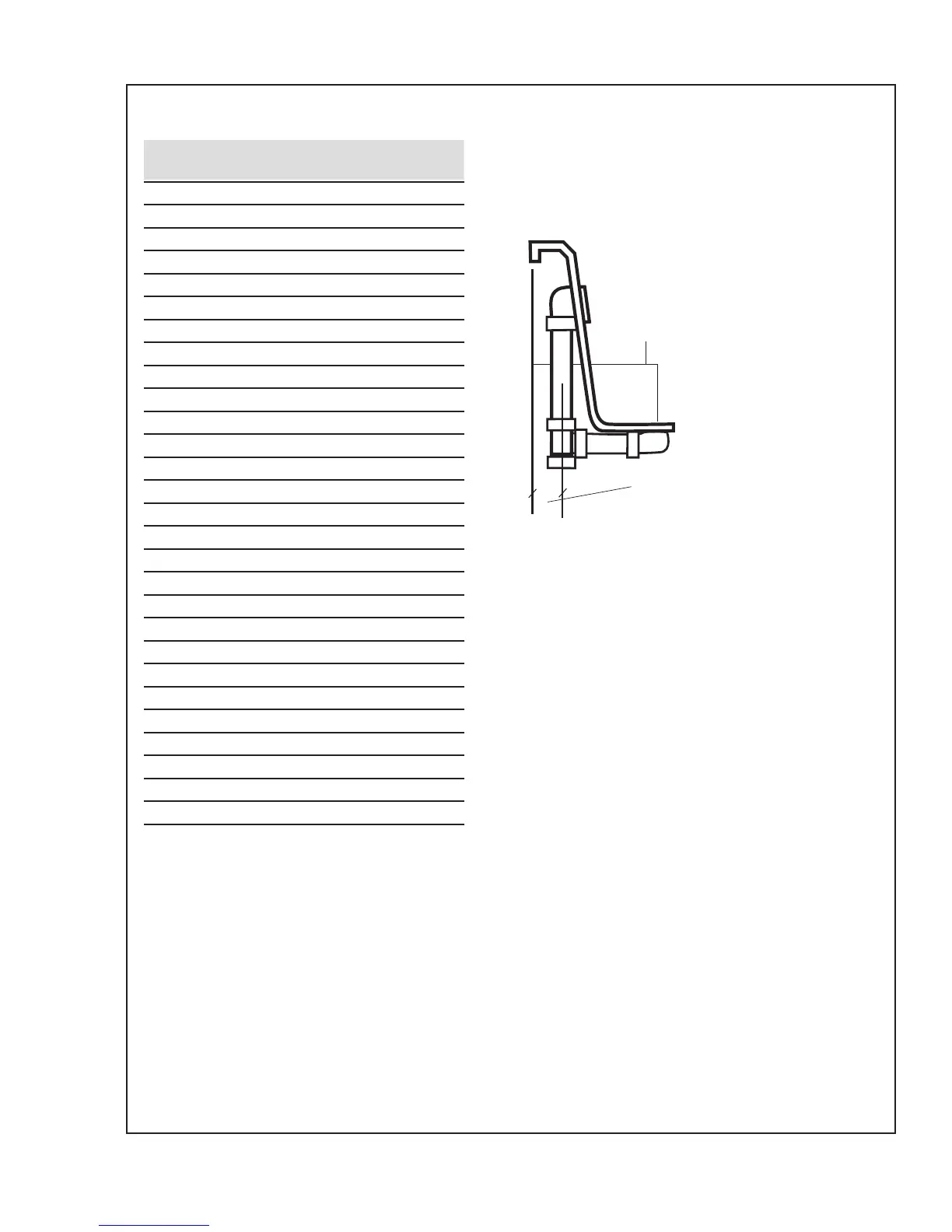

ROUGH-IN MEASUREMENTS FOR FREESTANDING TUBS
66 3” 9.625"
67 2.75” 8”
68 3” 9.625”
74 4” 9.5”
75 3” 7.5”
82 3.625” / 5.125” * 9.625” / 11.125” *
86 2.375” 9.25”
88 4.125” 9.625”
100 3.625” 9.625”
112 3.125” 8.25”
118 4.25” 9.75”
120 4” 10”
134 ** **
136 3.5” 10.25”
143 4.5” 10”
145 3.75” 9.75”
146 4.75” 9.75”
147 ** **
178 4.5" 9.25"
180 17.25" ** 12.75" **
182 5.5" 11.5"
184 5.5" 12"
191 6.75" 12"
201 5.25" 10.5"
202 5.25" 10.5"
204 1.75" 9.25"
208 3.5" ** 9.75" **
210 3.75" 9.25"
MODEL
#
MEASUREMENT
A
MEASUREMENT
B
