MTS Systems 318.25 User Manual

318 Load Unit Introduction
23

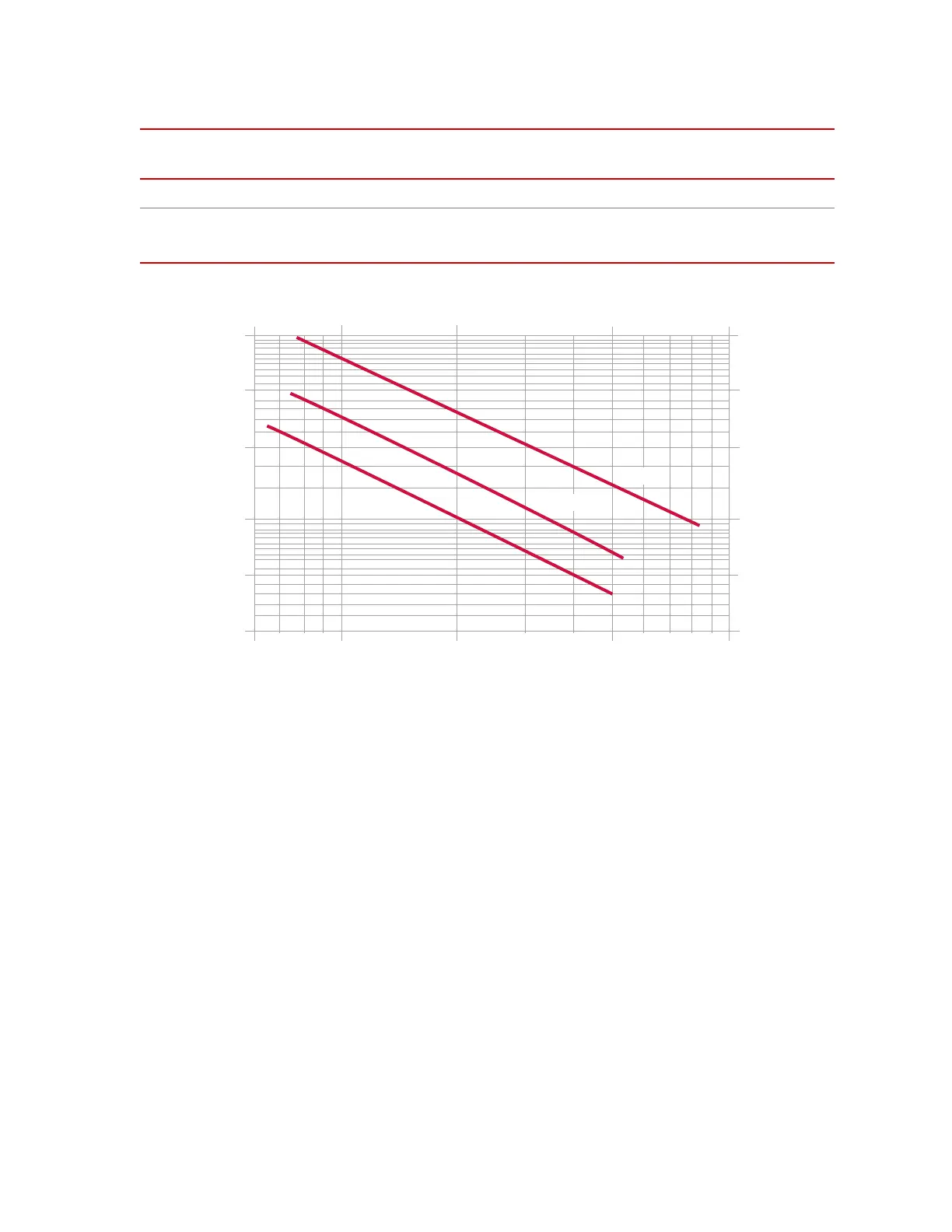

Stiffness Graph
A - D overall frame 0.38 mm 0.015 in 0.58 mm 0.023 in 0.66 mm 0.026 in
Spring rates
2.6 x 10
8
N/m
(1.5 x 10
6
lb/in)
4.3 x 10
8
N/m
(2.4 x 10
6
lb/in)
7.5 x 10
8
N/m
(4.3 x 10
6
ib/in)
DEFLECTIONS MODEL 318.10
100
KN/22 KIP
MODEL 318.25
250
KN/55 KIP
MODEL 318.50
500
KN/110 KIP
Free Column Length (cm)
Free Column Length (in)
Maximum Side Load Limits (kips)
Maximum Side Load Limits (kN)
10 25 50 125 250
5 10 20 50 100
20
10
5
2
1
0.5
80
45
22
9
4.5
2
318.10
318.25
318.50
