ATS-22AG Automatic Transfer Switch

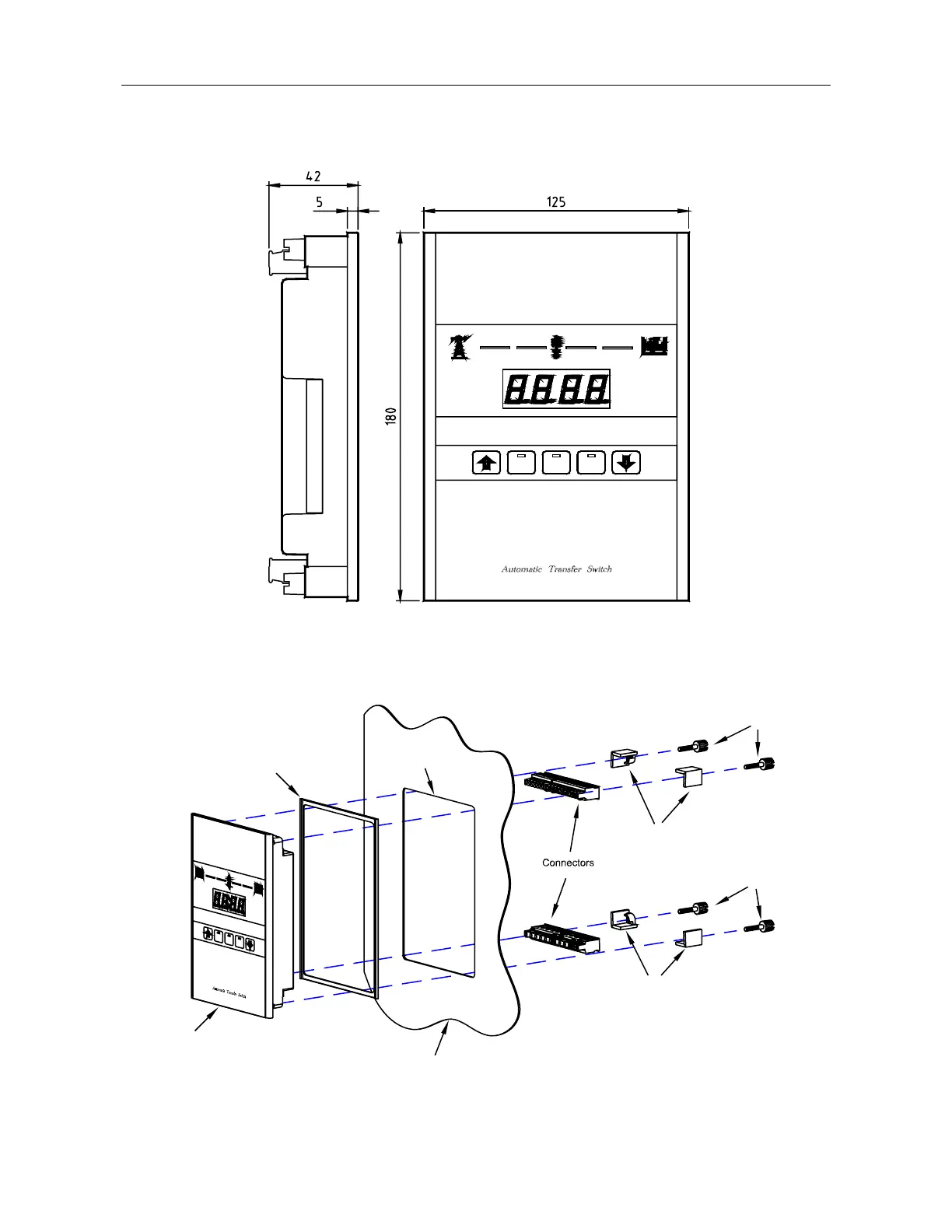

4.3 Unit Dimensions ( All Dimensions in MM. )

4.4 Installation Reference

Silicon waterproof seal

Panel Cut-out

A T S

Metal door

Fix bracket

Screw

Fix bracket
