MTS Systems ATS-21AG - Section 4: Installation Instructions

ATS-22AG Automatic Transfer Switch
______________________________________________________________________________________
7
3.8 Specification Summary
PARAMETER SPECIFICATION
AC Voltage Measurement Range
50 VAC to 300 VAC 50/60 HZ
Frequency Measurement Range
40HZ to 75HZ
Remote Start Contact
7A @ 250VAC Max
Normal ON Contact
7A @ 250VAC Max
Emergency ON Contact
7A @ 250VAC Max
Auxiliary Contact Output
7A @ 250VAC Max
Operating Temperature
Storage Temperature
Operating Humidity
Maximum 90% relative humidity
Weight
0.55lbs 2%
SECTION 4: INSTALLATION INSTRUCTIONS
4.1 General
The ATS-22AG is made for front panel mounting.

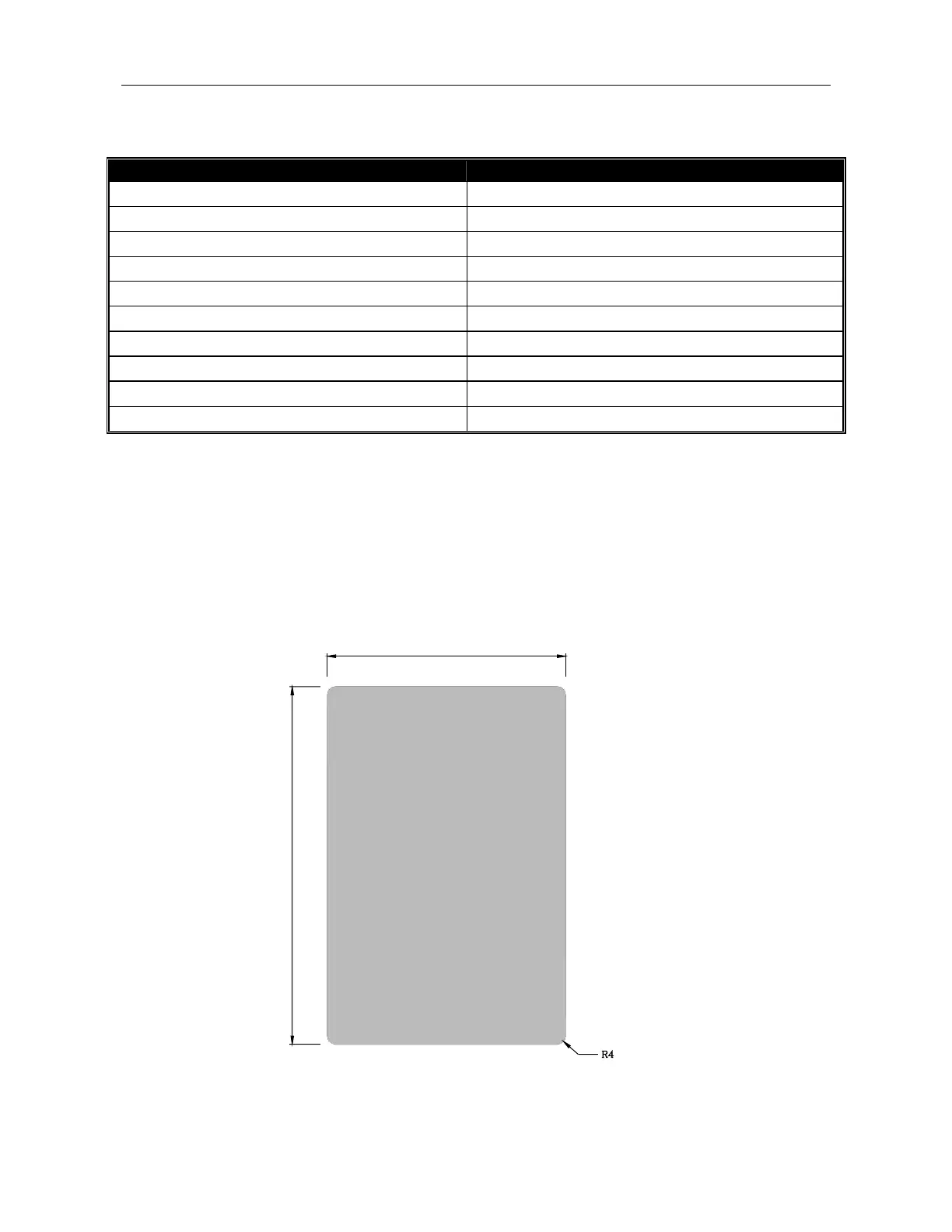

4.2 Panel Cut-Out (All Dimensions in Inches)
-4F to 160F
-4F to 160F
4.45
6.6
