MTS Systems ATS-21AG User Manual

ATS-22AG Automatic Transfer Switch
______________________________________________________________________________________
8

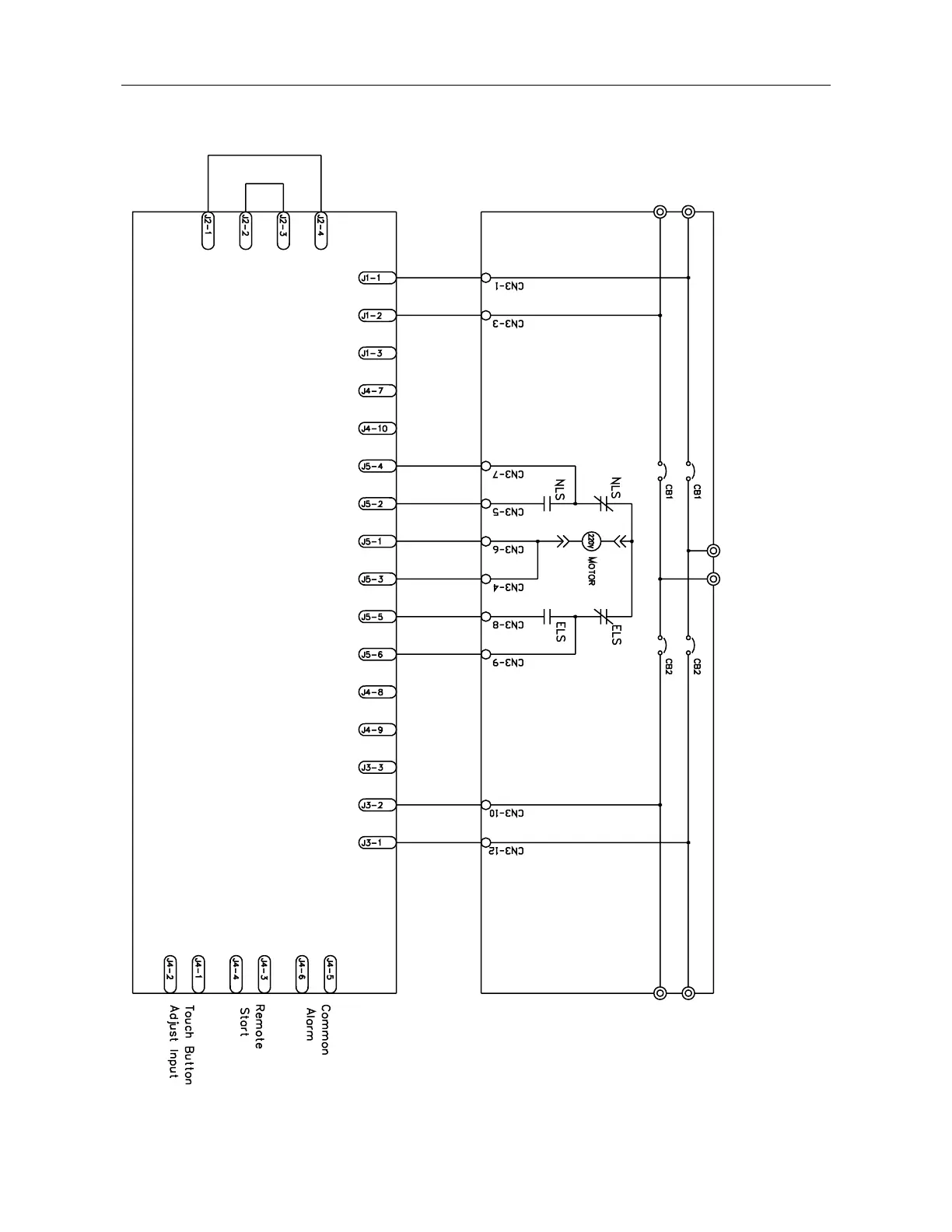

SECTION 5 : TYPICAL WIRING AG Unit
GENSET
LOAD
MAINS
ATS-22AG Control Unit
#ELS>>Genset Auxiliary Switch
#NLS>>Normal Auxiliary Switch
L1 L2
MCCB TYPE BTS
L2
L1
L1
L2
