The MTX Audio MUD65PL is a high-performance cage mount speaker pod designed for outdoor enthusiasts who want to enjoy exceptional sound quality and volume wherever their adventures take them. This robust speaker is built with all-weather construction, ensuring its durability and reliability in various outdoor environments. Beyond its audio capabilities, the MUD65PL also features an integrated RGB LED light kit, allowing users to customize the speaker's lighting color on the grille for a personalized aesthetic.

Function Description

The primary function of the MUD65PL is to deliver high-quality audio in outdoor settings. It is designed to be mounted on cages or bars, commonly found on off-road vehicles, boats, or other recreational equipment. The speaker's enclosure houses a polypropylene woofer and a Mylar dome tweeter, working in conjunction to produce a full range of sound, from deep bass to crisp highs. This combination ensures that music is reproduced with clarity and impact, even in noisy outdoor conditions.

The integrated RGB LED lighting system adds a visual dimension to the audio experience. Users can select from a variety of colors to match their mood, vehicle, or event. This lighting can enhance the ambiance during evening rides or gatherings, making the speaker not just an audio device but also a customizable visual element. The lighting can be hard-wired to provide seven distinct colors based on the wiring configuration, or for more advanced control, it can be paired with an optional remote control (MUDLEDC, sold separately) to unlock a wider spectrum of colors, patterns, and special effects.

The MUD65PL is engineered for high-output systems, meaning it can handle significant power levels to produce loud and clear sound, suitable for open-air environments where sound can easily dissipate. Its design focuses on delivering an immersive audio experience that can cut through wind noise, engine sounds, and other ambient outdoor distractions.

Usage Features

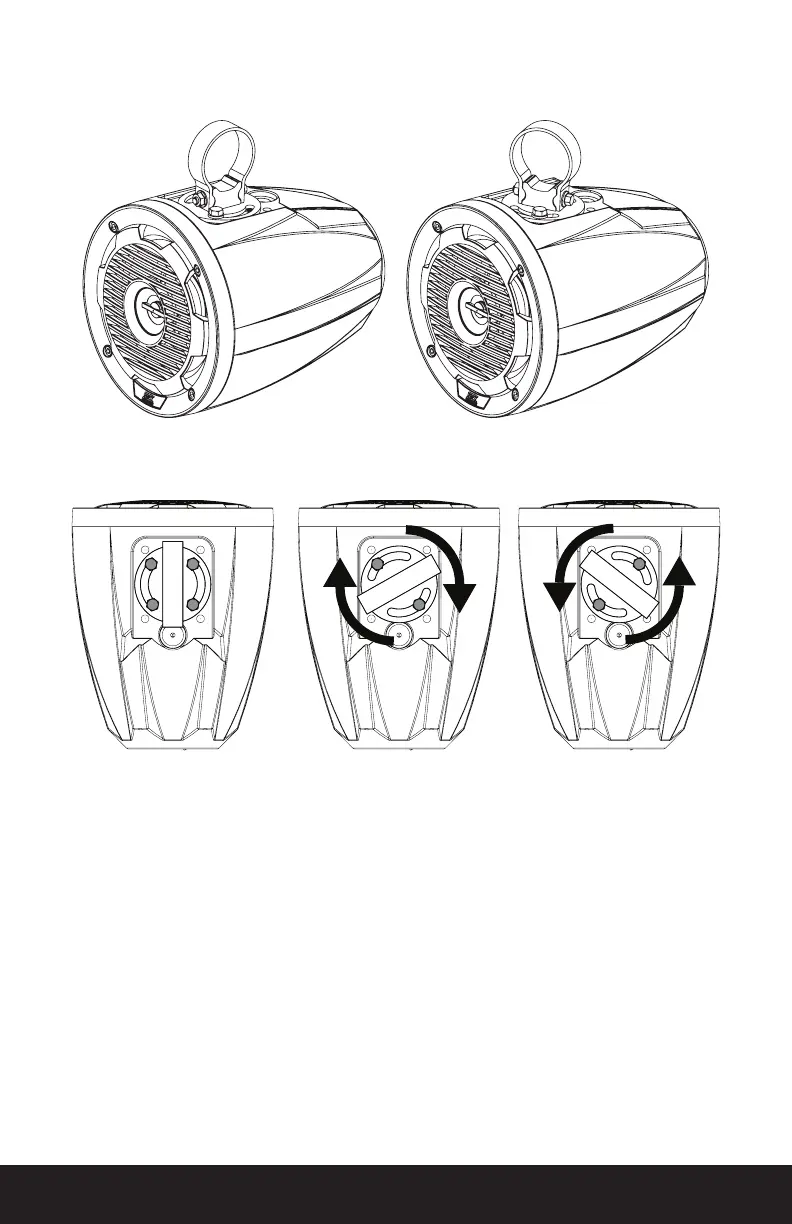

The MUD65PL is designed with user-friendly installation and versatile mounting options. It comes with rotating brackets that accommodate bars of 1.5", 1.75", and 2" diameters, making it compatible with a wide range of vehicles and applications. This flexibility ensures that users can find the optimal mounting position for their specific setup. The bracket base can be rotated in any desired direction, allowing for precise aiming of the speaker to direct sound where it's most needed. Secure mounting is achieved using a minimum of two bolts, with one on each side of the round base, ensuring stability even during vigorous activities.

Installation involves selecting the appropriate bracket clamp for the bar size and attaching the bracket base to the speaker enclosure at the desired angle. The enclosure is then positioned on the clamp, and a hex bolt is passed through to secure it. A serrated nut is tightened onto the bolt, which locks the bracket in place and prevents the speaker from rotating on the bar once fully tightened. This robust mounting system is crucial for outdoor applications where the speaker might be subjected to vibrations, bumps, and other movements.

Connecting the speaker to an amplifier is straightforward, with clear instructions for wiring the speaker leads (Grey for positive, Black for negative) to ensure correct polarity. For the RGB LED lighting, the Black lead serves as +12V, while the Red, Green, and Blue leads are grounds. By splicing and combining these ground wires, users can achieve different color combinations. For instance, grounding Red produces a red light, grounding Green produces a green light, and so on. Combining Red and Green grounds yields Lime Green, Red and Blue grounds produce Magenta, Green and Blue grounds result in Aquamarine, and grounding all three (Red, Green, and Blue) creates a Blue-White light. This simple wiring scheme allows for basic color customization without additional accessories.

The inclusion of an MTX badge, which can be attached to the rear recess of the enclosure with double-stick tape, adds a finishing touch to the speaker's appearance. The overall design emphasizes ease of use and adaptability, allowing users to quickly set up and enjoy their audio system.

Maintenance Features

The MUD65PL is built with durability in mind, requiring minimal maintenance due to its robust construction and all-weather design. The enclosure and grille are made from ABS impact-resistant material with a UV inhibitor, which protects the speaker from the damaging effects of sunlight and impacts. This material choice helps prevent fading, cracking, and degradation over time, ensuring the speaker maintains its aesthetic appeal and structural integrity in harsh outdoor conditions.

The speaker is IP67 rated for outdoor use, meaning it is highly resistant to dust ingress and can withstand immersion in water up to 1 meter for 30 minutes. This level of protection makes it suitable for environments where it might be exposed to rain, splashes, or even temporary submersion, such as on boats or off-road vehicles crossing shallow water. The IP67 rating significantly reduces the need for special protective measures against the elements, allowing users to focus on their activities rather than worrying about their speaker.

Furthermore, the MUD65PL has been tested for 500 hours to ASTM B117 (salt spray) and D4329 (UV exposure) standards. These rigorous tests confirm its resistance to corrosion from salt water and degradation from prolonged exposure to ultraviolet radiation. This means the speaker is well-suited for marine environments or areas with high sun exposure, ensuring a long operational life without significant performance or cosmetic deterioration.

The stainless steel hardware used for mounting, including hex bolts, flat washers, and split lock washers, is designed to resist corrosion, further contributing to the speaker's longevity and low maintenance requirements. This prevents rust and ensures that the mounting system remains secure and functional over time, even in damp or corrosive conditions.

While the MUD65PL is designed to be highly durable and weather-resistant, general cleaning with mild soap and water can help maintain its appearance. Avoiding harsh chemicals or abrasive cleaners will help preserve the finish of the ABS enclosure and grille. Regular inspection of the mounting hardware can also ensure that all components remain tight and secure, preventing any potential issues from vibrations or movement during use. The focus on high-quality, weather-resistant materials and construction significantly reduces the need for frequent or complex maintenance, making the MUD65PL a reliable choice for outdoor audio.
