MTZ 1220.3 - Page 130

MTZ 1220.1/1220.3 Section H. Adjustments
H2

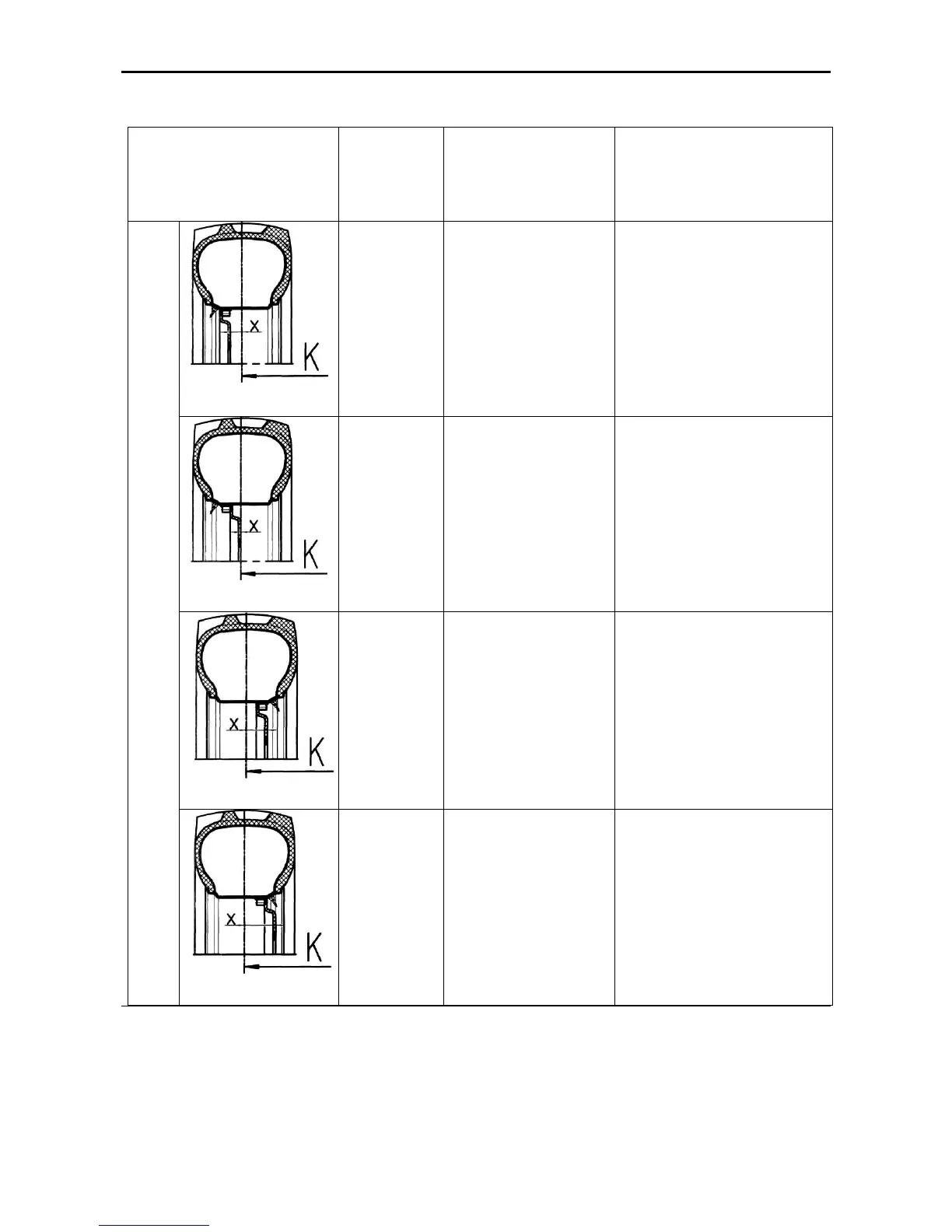

Table H-1 continued
Variants of mounting the
disk and the rim
Disk offset
Х, mm
Tractor track
К, mm
(tire 420/70R24)
Description of mounting
method
Displacement of the disk and the rim
+56 1700
The disk mates with the
support outer surface.
+6 1800
The disk mates with the
support inner surface.
-102 2020
The
rim is turned by 180°.
The disk mates with the
support inner surface.
-152 2120
The rim is turned by 180°.
The disk mates with the
support outer surface.
.
