MTZ 1220.1/1220.3 Section I. Coupling of implements
I 6
Drawbar hitch DH-1М-01 (draw bar)
Implements: semi-trailers (the same as for a DH-2В and a DH-3V), trailers (the same as
for a DH-2V and a DH-3V).

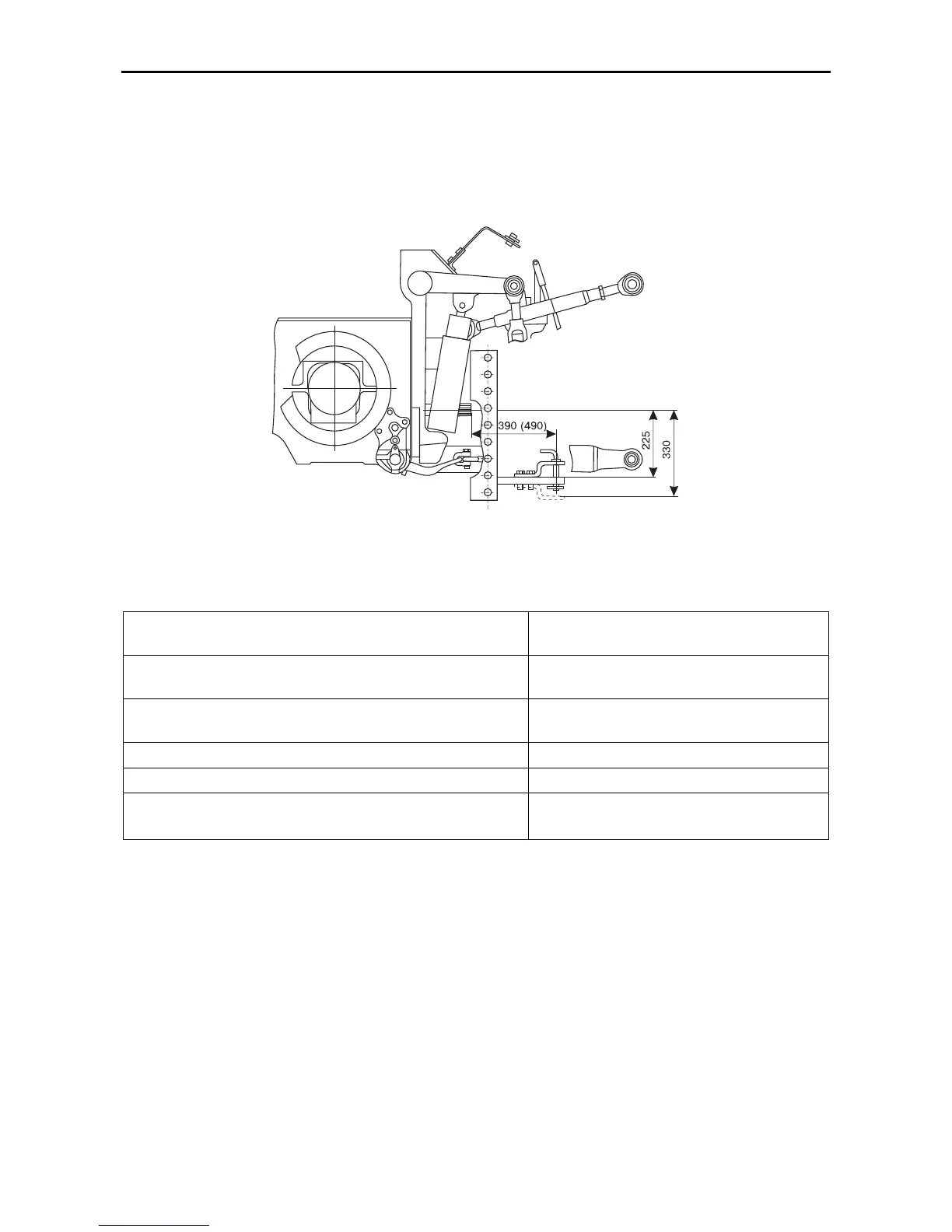

Fig. I-10.
Towing drawbar
A yoke with a possibility of a position
change with reference to the PTO end
Distance between the clevis and a supporting surface,
mm
500 or 395
Distance between the PTO end and conne
cting pin
axis, mm 390 or 490
Connecting pin diameter, mm 30
Vertical load on a TD, kN 12
Implement turning angle with reference to a tractor,
degrees
± 85
