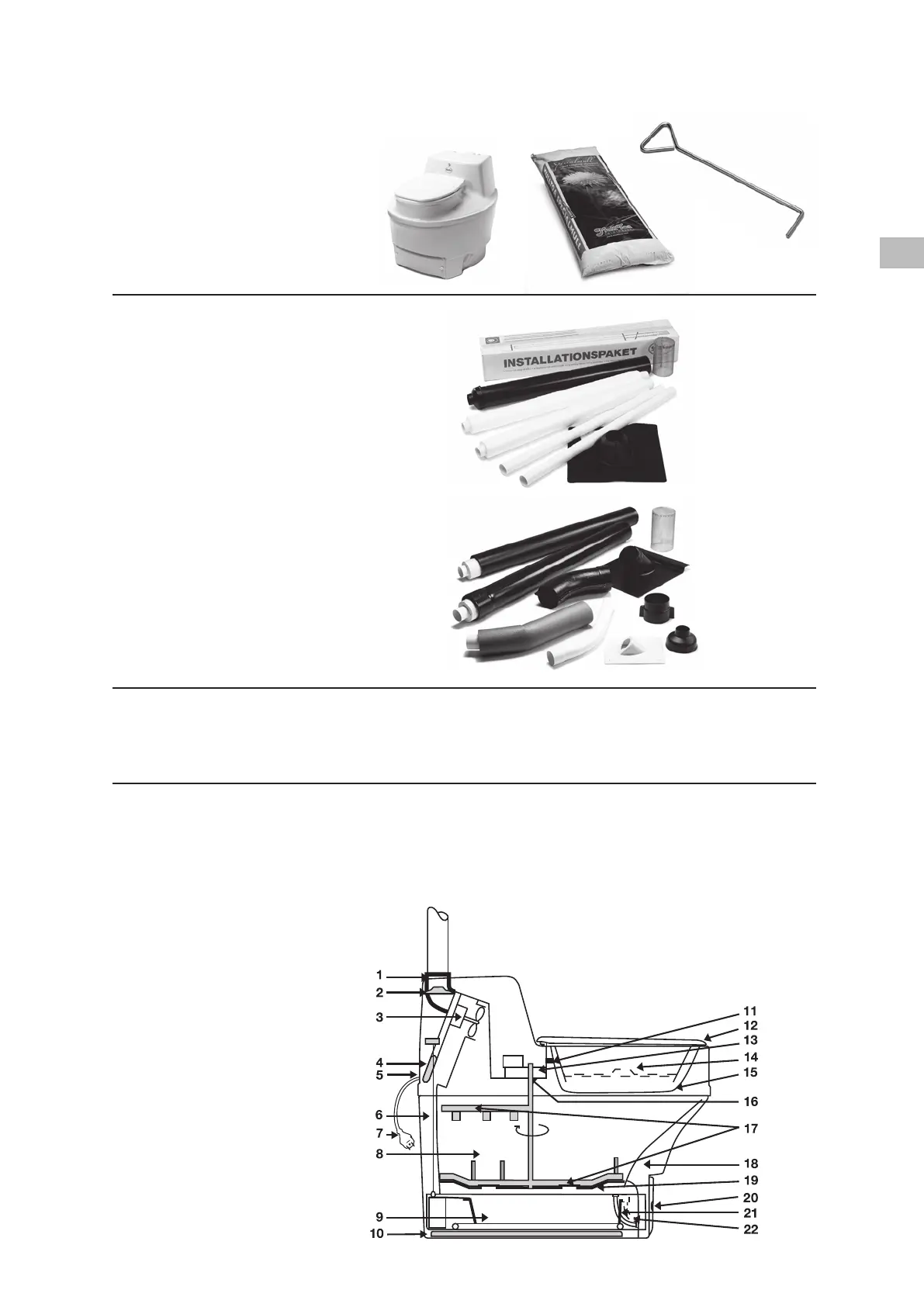

Your Biolet box and installation kit
The box contains:
The toilet, bag of humus, rake and manual.
Optional
Roof Installation kit
Ventilations pipes 1100mm (43") x 4 pcs.
Exterior pipe 1000 mm (39'') x 2 pcs.
Insulation x 1000 mm (39")
Reduction coupling 55/ 110 mm (2 1/4" / 4 ")
Roof flashing, Insect netting
Wall installation kit
Bends 45° x 2 pcs, lnsulation 500 mm (19"),
Inside- and Outside-cover,
Exterior pipe 45° x 2 pcs,
lnsulation 55/90 mm (2''/ 3,5") 1000 mm (39") x 2 pcs,
Exterior pipe 110 mm (4")1000mm (39")
Exterior pipe 1100 mm (43'') belled,
Reduction sleeve,
Insect netting.
Parts
Pipebends 30° and 45°, insulation, straight pipes, humus starter, extra tray.
BioLet cross section
1. Pipe connection
2. Adjustable heat setting
3. Fan motor
4. Heating element
5. Philips screw, fastening top part
6. Air flow
7. External cord
8. Compost chamber
9. Tray
10. Bottom heater
11. Switch for mixer
12. Sleeve nut, fastening top part
13. Mixer motor
14. Cover removable
15. Compost cover
16. Shearpin
17. Shaft with mixer arms
a. leveling arm
b. mixer arm
b)
a)
18. Airflow
19. Grate
20. Frontcover
2
1. Liquid tube, overflow (left hand side, seen from front
22. Liquid tube, tray (right hand side,seen from front
